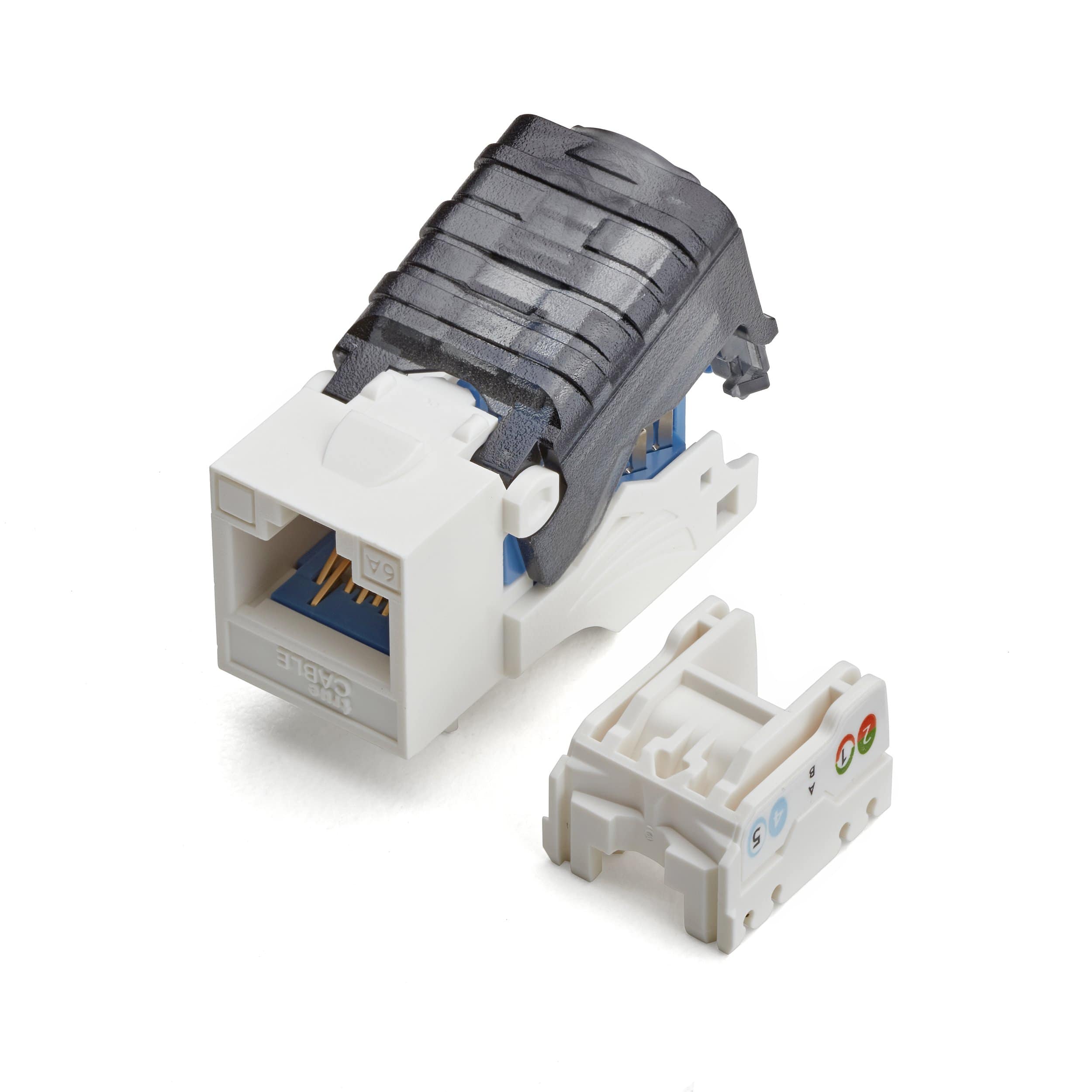

Cat6A Toolless Keystone Jack｜Unshielded

Part Number - 6ATL90CMPTWHT_2pc

Features

  • Supports PoE++ (802.3bt) 4PPoE, up to 100W
  • Tested to 500Mhz. Suitable for 10GBASE-T
  • Suitable for unshielded U/UTP Ethernet cable
  • UL Listed, ETL Verified, ANSI/TIA 568 2.D Cat6A Certified
  • Data Center Ready
  • Impedance Matches Disparate Patch Cord Conductor Gauges and Types
  • Maximum Durability Against PoE Connect/Disconnect Spark Arc Damage

Need help finding compatible connectors for your Ethernet cable?

Look no further than our Connector Finder

Bulk Save with trueCABLE
Qty Price Per Item Your Savings
10-24 $6.82 2.5%
25-49 $6.64 5%
50+ $6.47 7.5%
download Download Spec Sheet
download Download Instructions
$6.99 6.99
-Liquid error (sections/product-template line 309): Computation results in '-Infinity'%
Color
Size
Quantity
Qty:
Saves you 2.5%
Add 9 more for 2.5% discount
+1 +5 +10

Why buy direct from trueCABLE?

30 day returns

We stand by our products with our Forever Warranty

Same-day free shipping on orders placed Mon-Fri by 3pm Central.

Estimate Your Delivery Day

Ultimate Performance

  •  trueCABLE Cat6A keystones have been tested specifically for ANEXT performance (Alien Cross Talk) in high-density 10GBASE-T deployments. One of the most critical (and often overlooked) factors in Cat6A performance is cable-to-cable interference caused by high operating frequencies. Combined with a 3-D staggered patch panel, trueCABLE Cat6A unshielded keystones meet and exceed all of the specific Cat6A performance requirements in a real-world installation!
  • Suitable for 10 Gigabit Ethernet (10/100/1000/2500/5000/10000 Mb/s) up to 295 feet. Fully backwards compatible with Cat6 and Cat5e.
  • Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W

Cat6A Toolless Keystone Jack｜Unshielded


  • IMAGE A: Proven Component Rated performance. trueCABLE keystones nearly double the NEXT headroom in a Permanent Link Certification test as compared to competing mass-produced Channel Level keystone jacks. Lower-priced commodity keystone jacks are known as “Channel Level”. Channel Level hardware is not subjected to strict Connection Hardware Test Limits during assembly and only gets Certified in the context of a field installation. trueCABLE Component Rated connection hardware is Category and ANSI/TIA 568-2.D Connection Hardware Certified twice during production. The PCB must pass testing and then the completed keystone jack must pass again. Component Rating means the connection hardware must meet strict Category NEXT, FEXT, Return Loss, Insertion Loss, TCL/TCTL, and Alien Crosstalk requirements before it makes it into the box and in your hands.

  • IMAGE B:  Impedance matching technology provides advanced electromagnetic balancing to allow for mixed conductor gauges and types while maintaining maximum performance for the entire channel. A great example of how this feature translates into real-world benefits is when mixing cables from different manufacturers.
  • IMAGE C: Data Center Ready. No more worrying about short point-to-point links in the data center failing Certification! Permanent Links as short as 1 meter will pass Certification.

Durable

  • Tuned RJ45 port spring wire design helps prevent PoE spark arc pitting damage

  • caused by connecting and disconnecting live PoE circuits--even at 100W PoE++

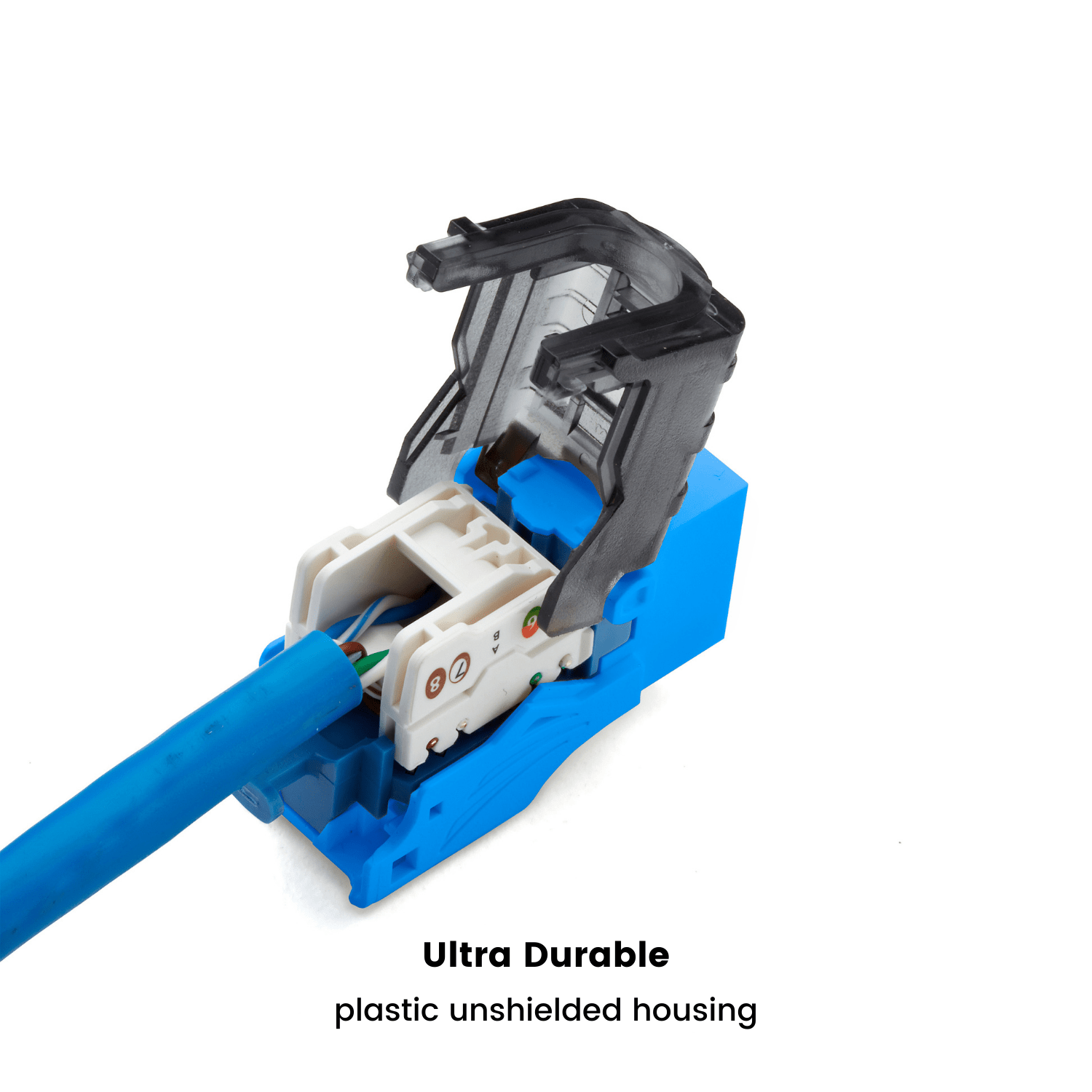

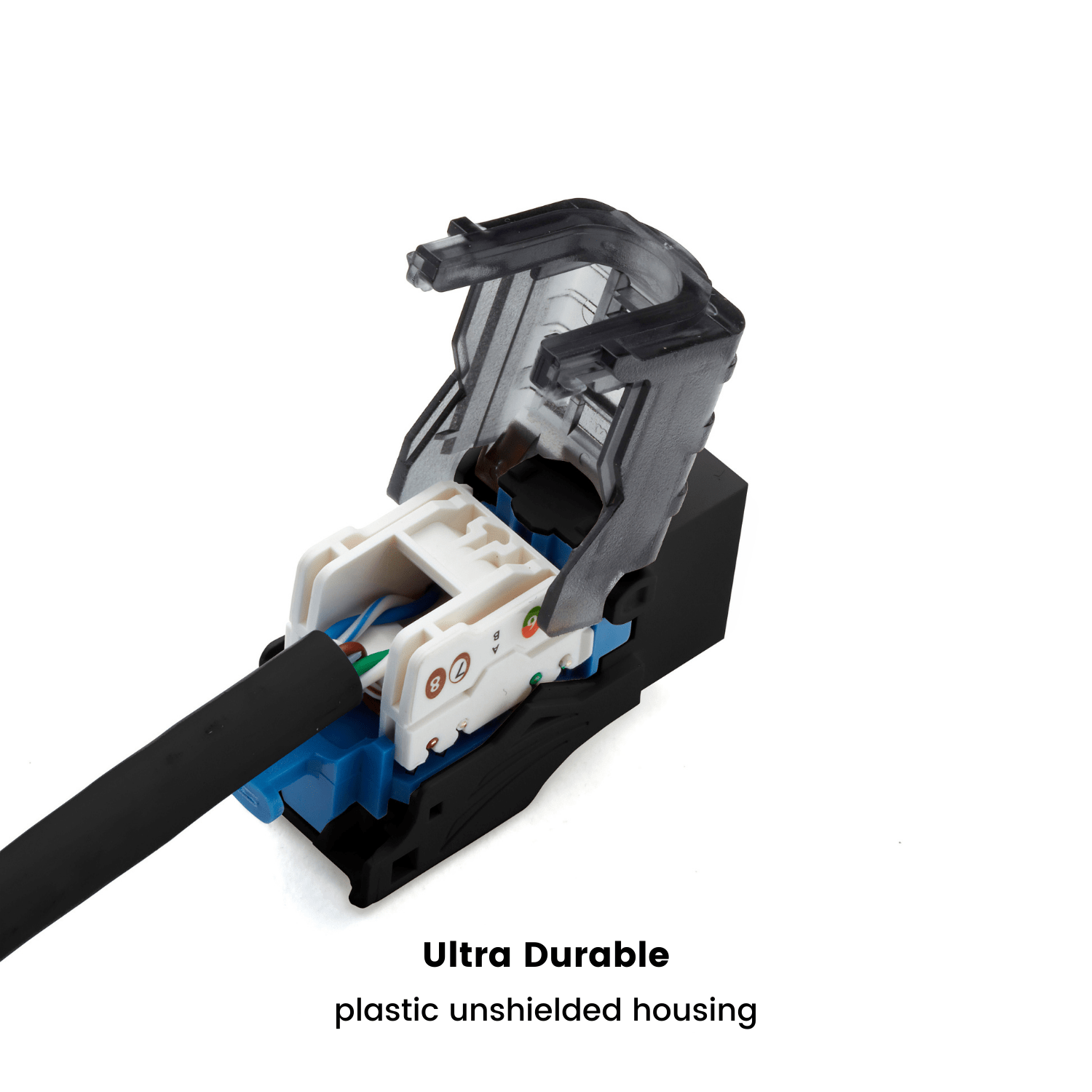

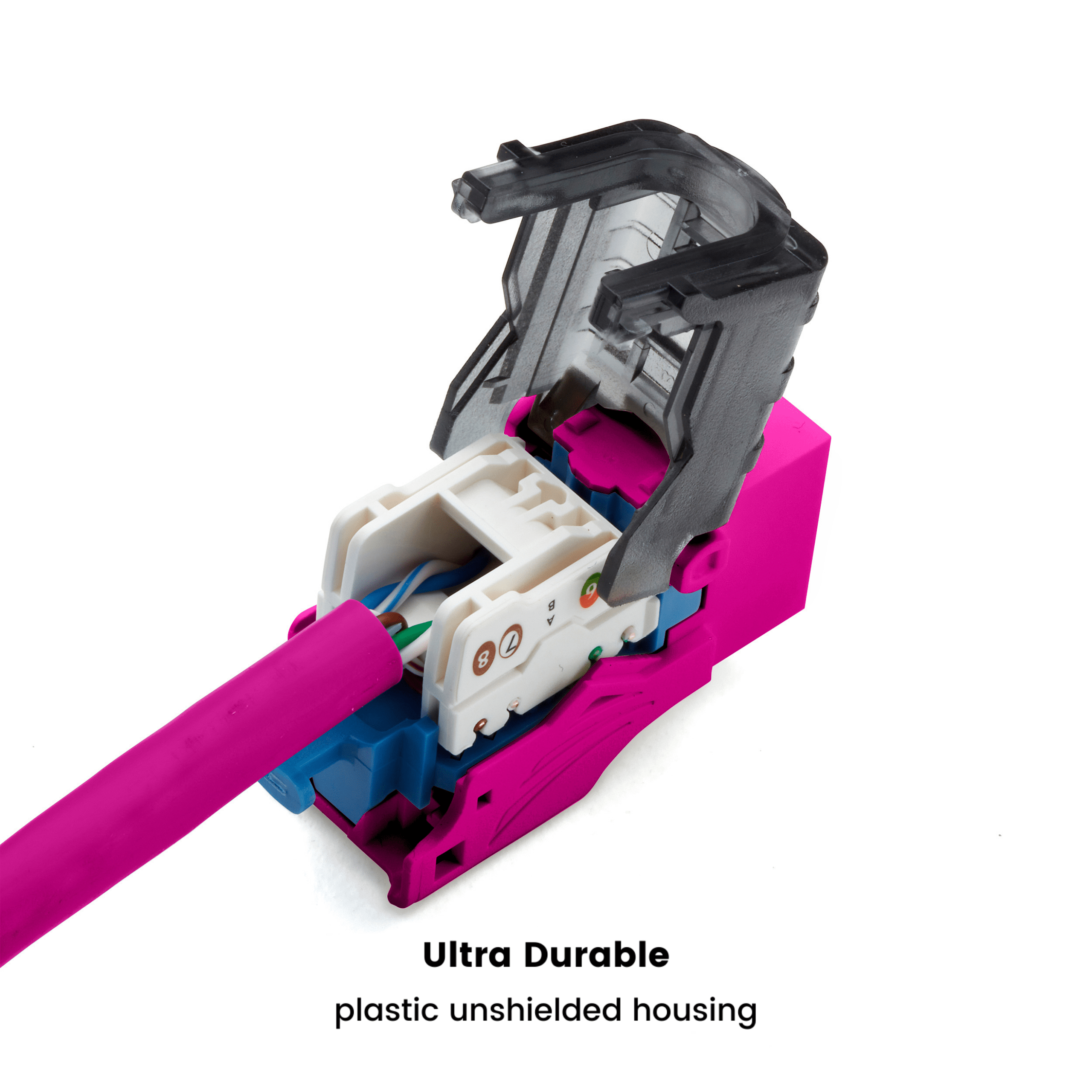

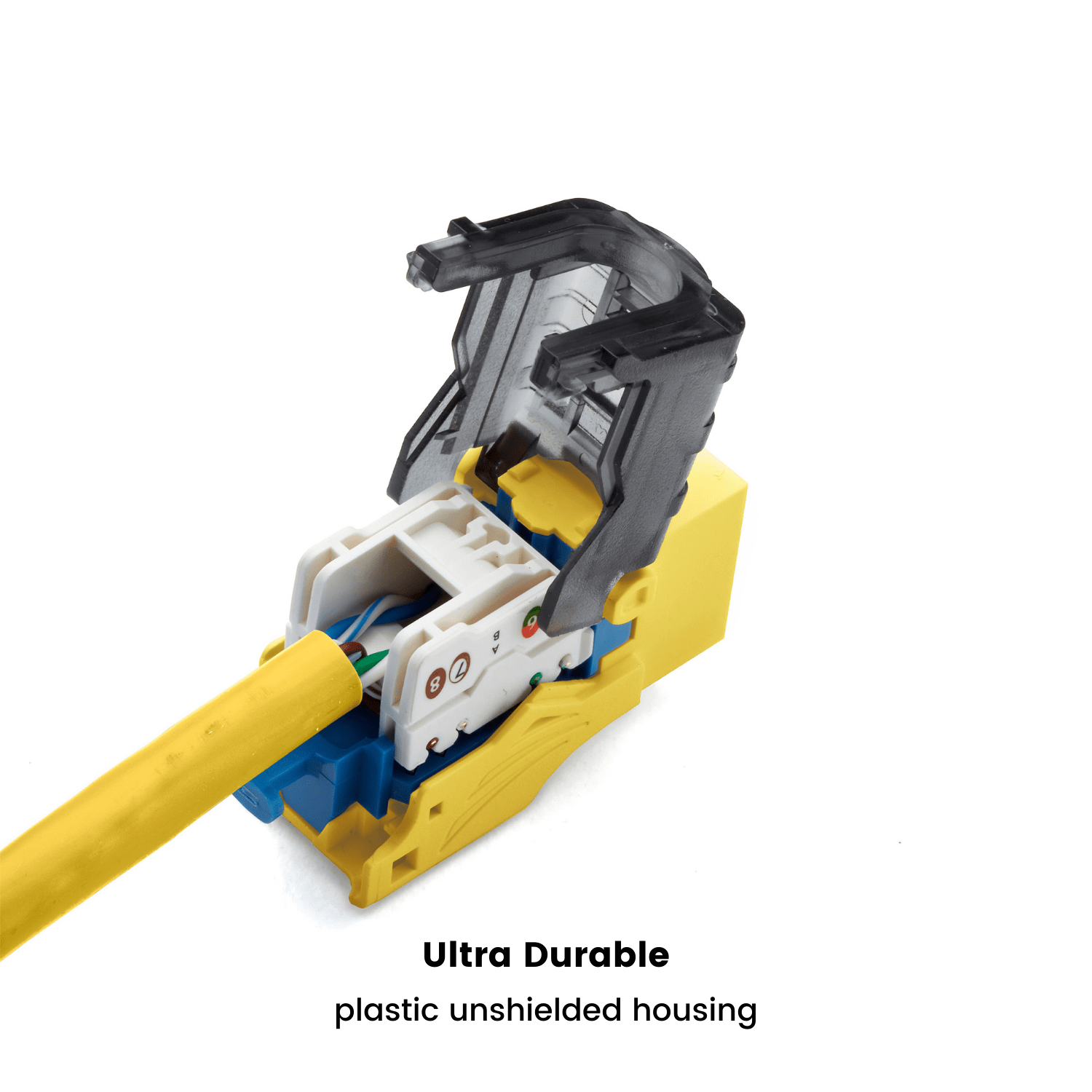

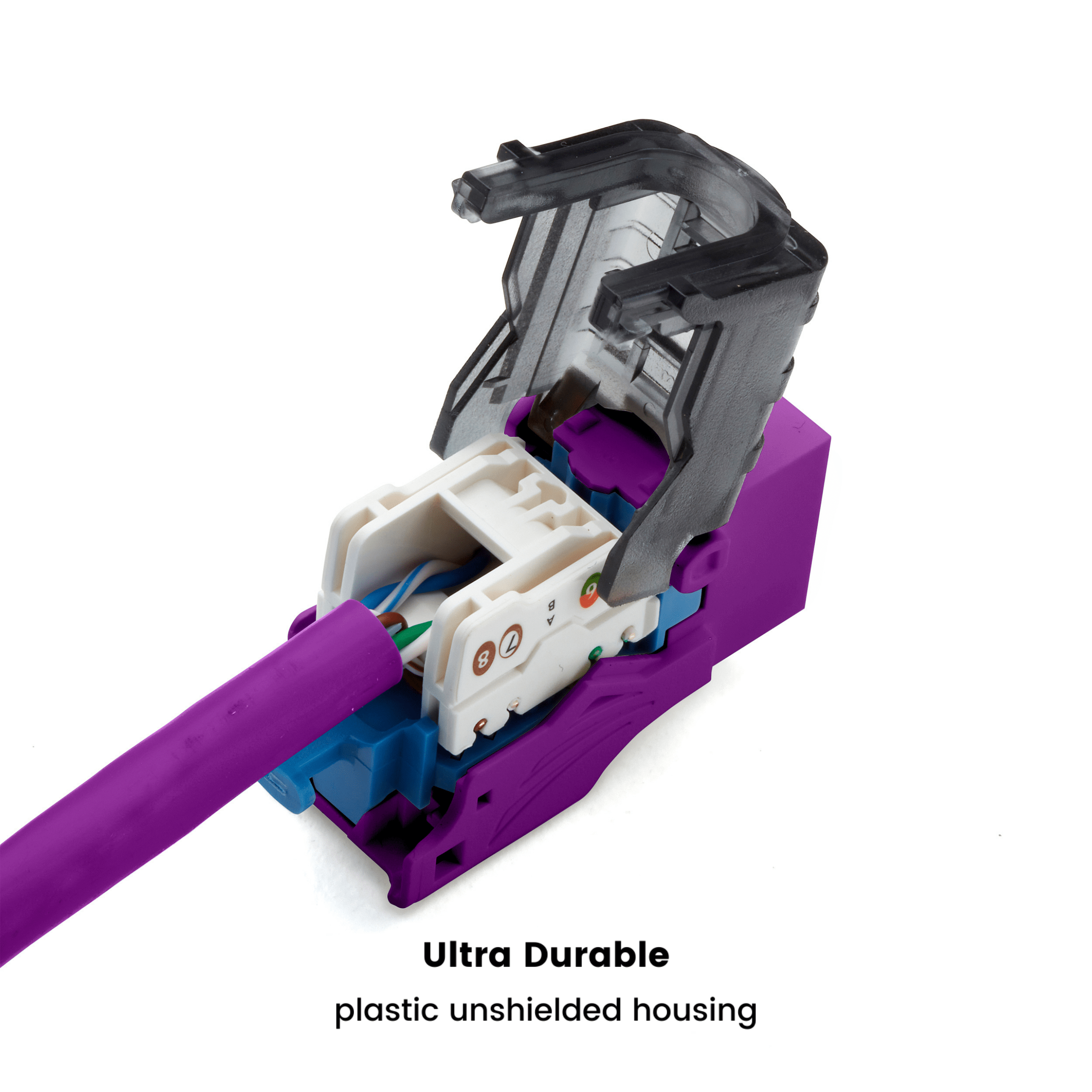

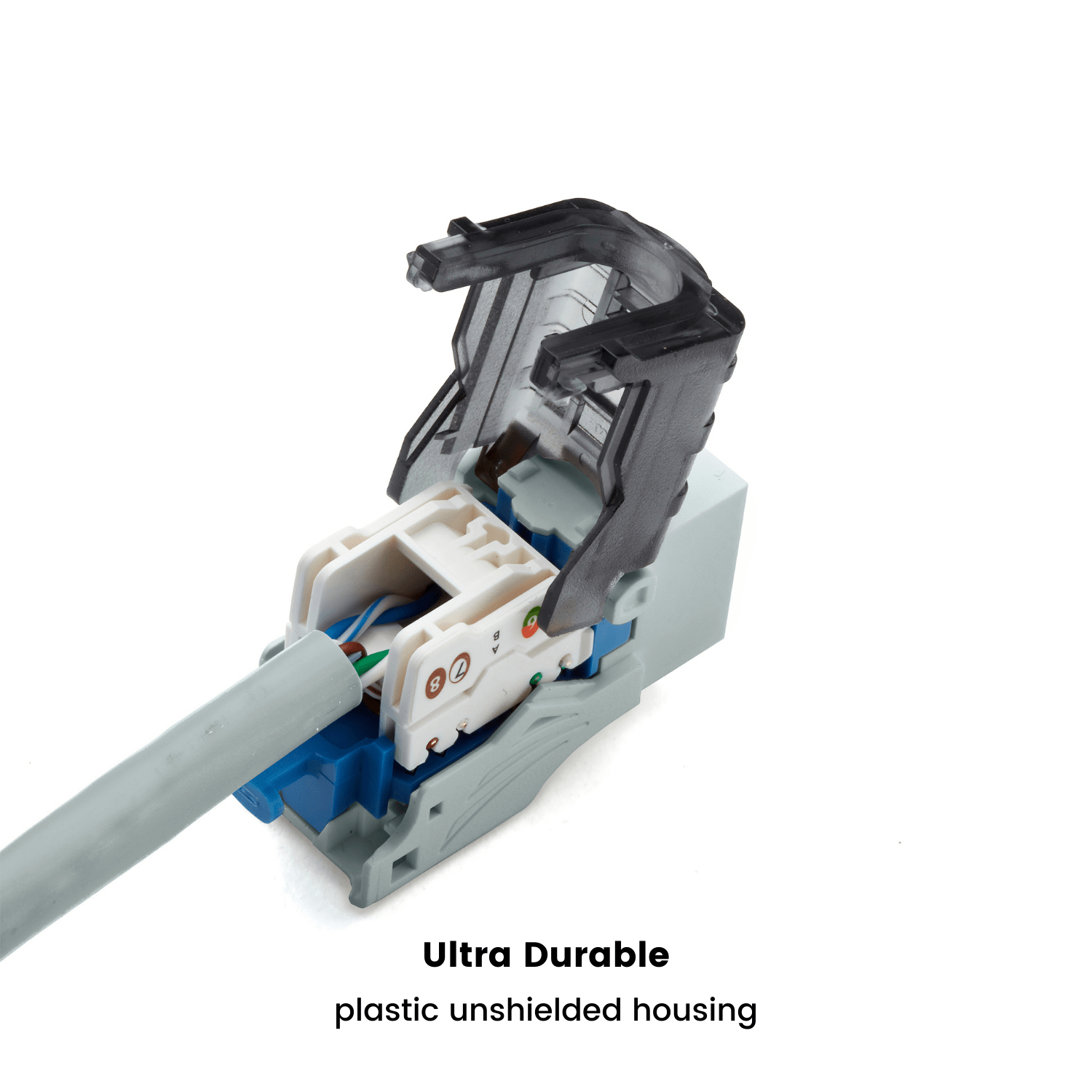

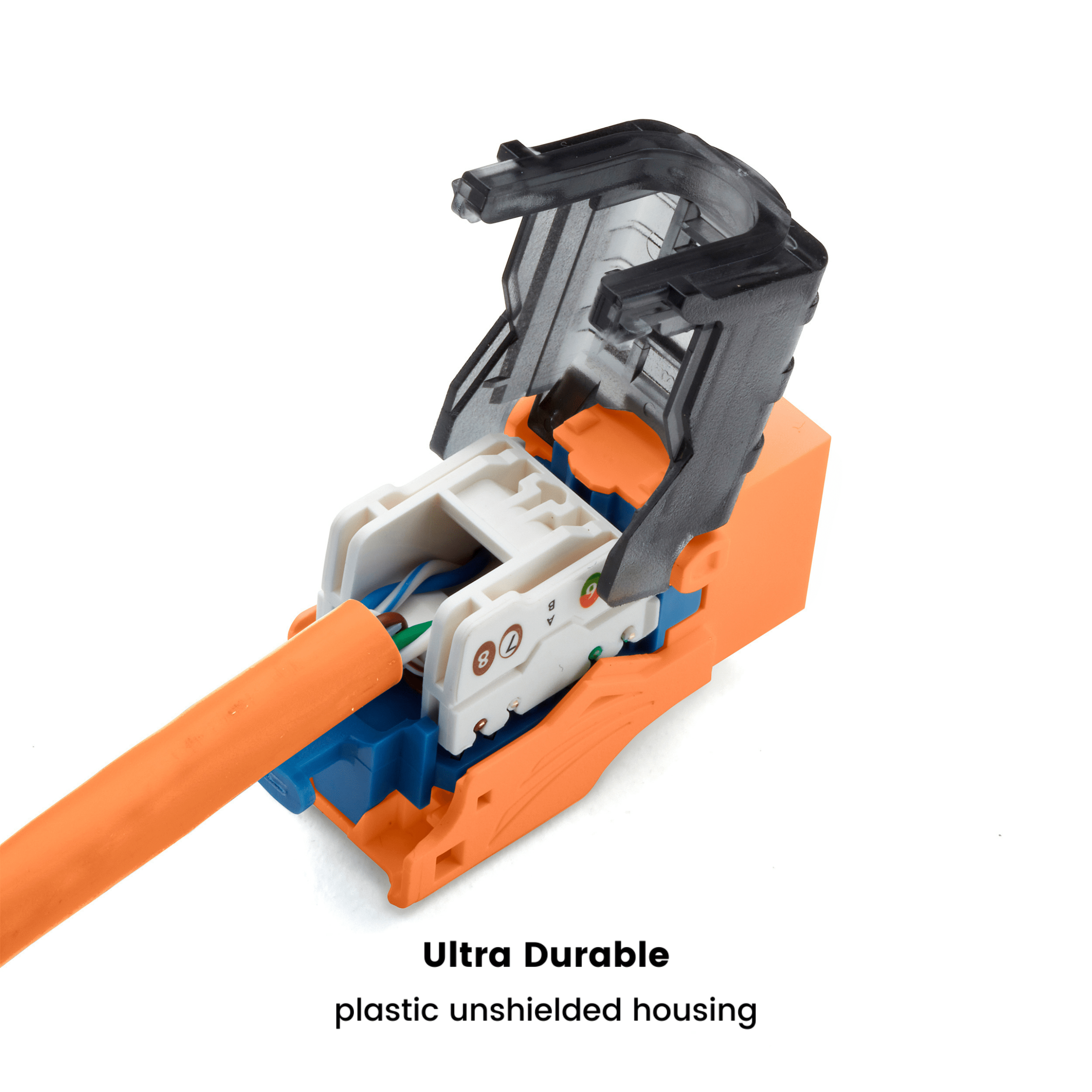

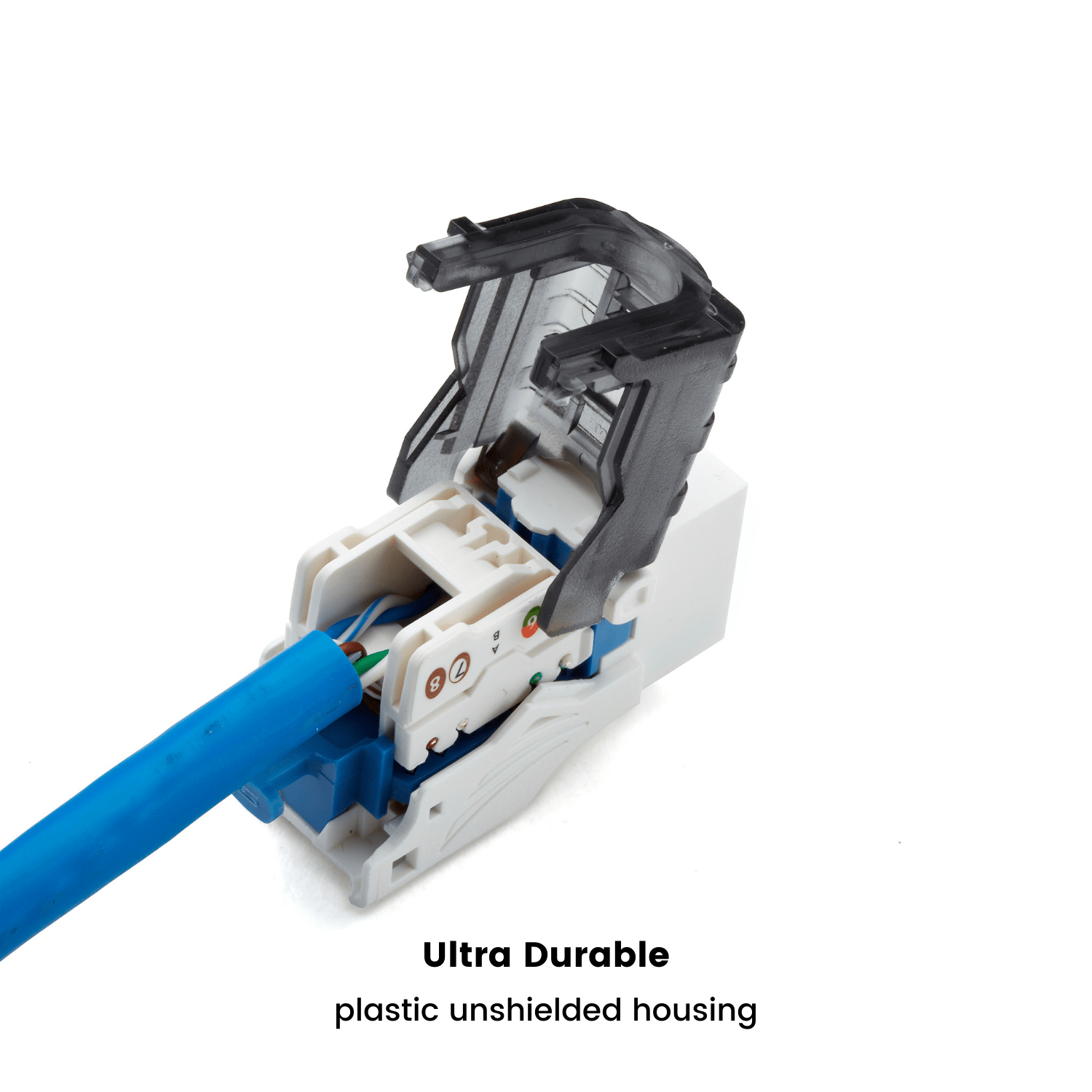

  • Tough ABS plastic construction
  • Press-Fit Technology makes our product more reliable and increases transmission performance
  • Corrosion-resistant nickel and tin-coated phosphor bronze termination prongs and gold-plated RJ45 contacts

Versatile

  • Compatible with 23 to 24 AWG solid copper conductors and ∅0.86 - 1.20mm insulated conductors.

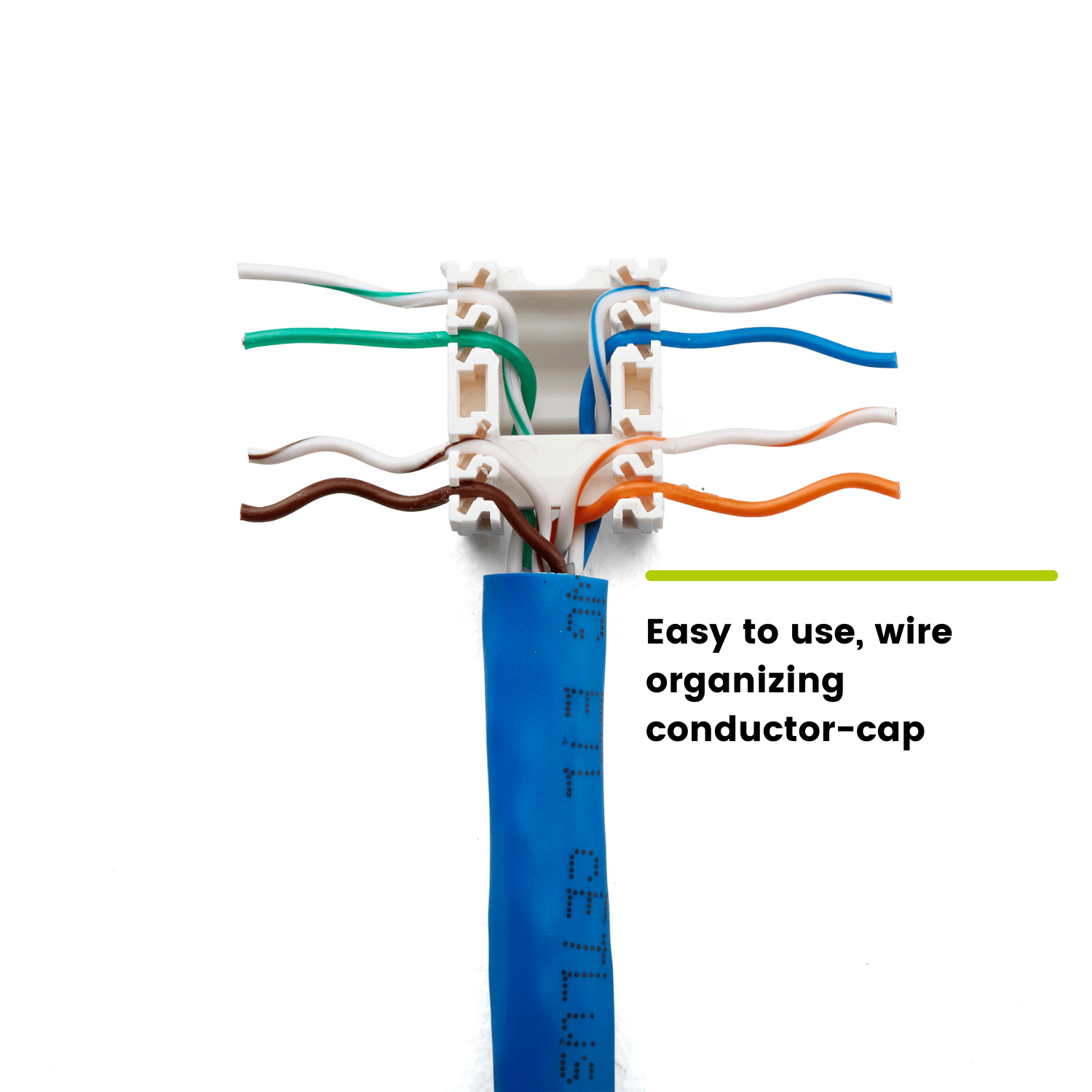

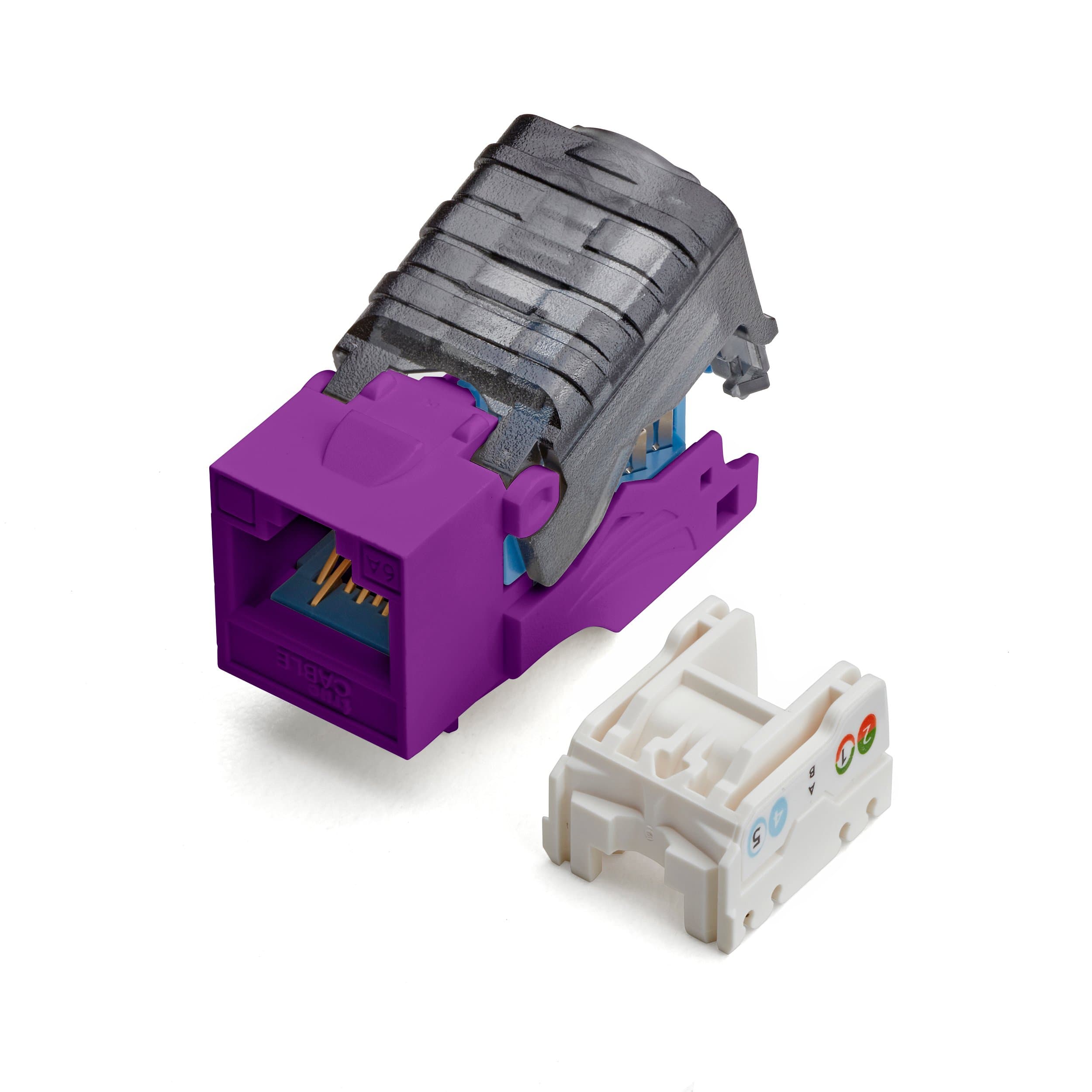

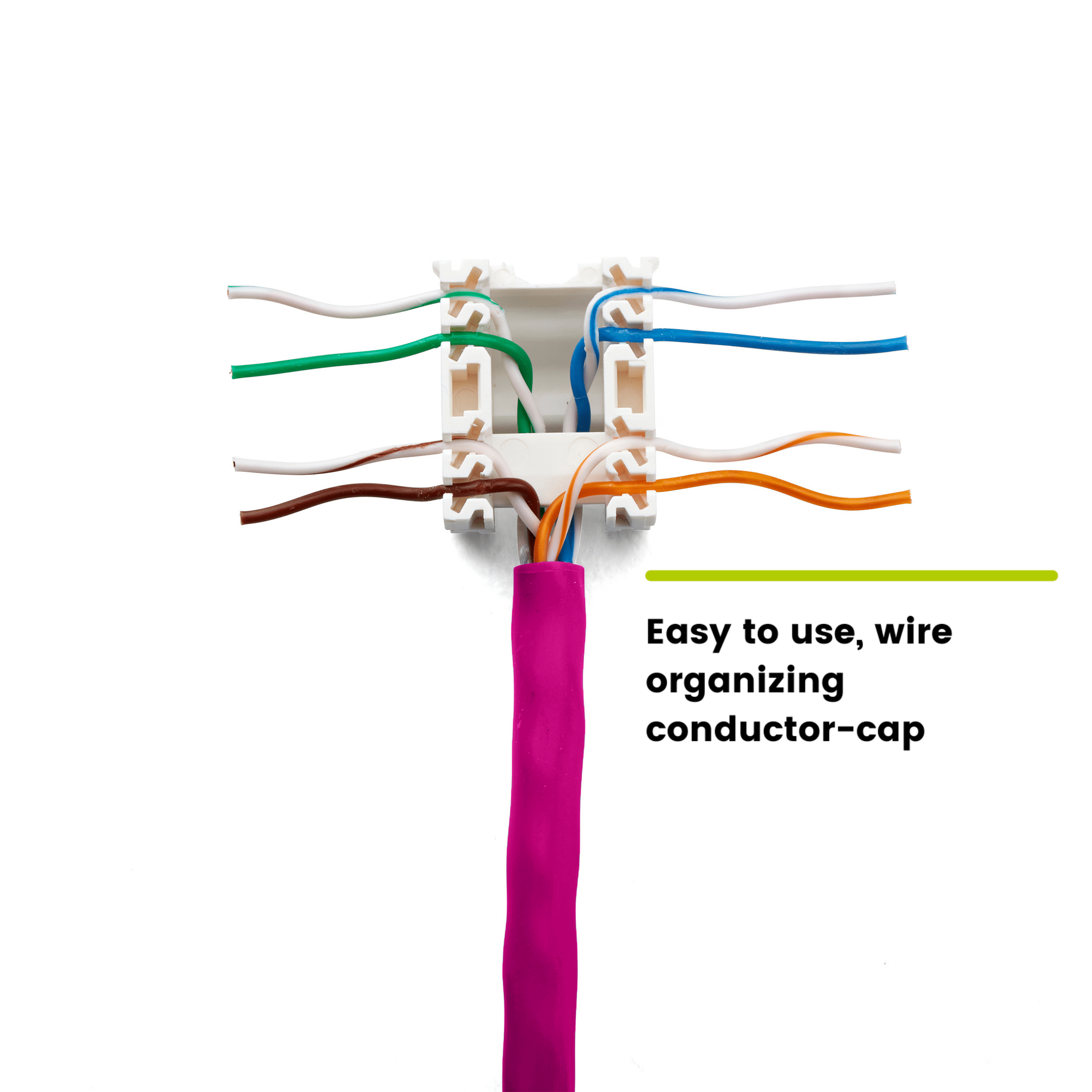

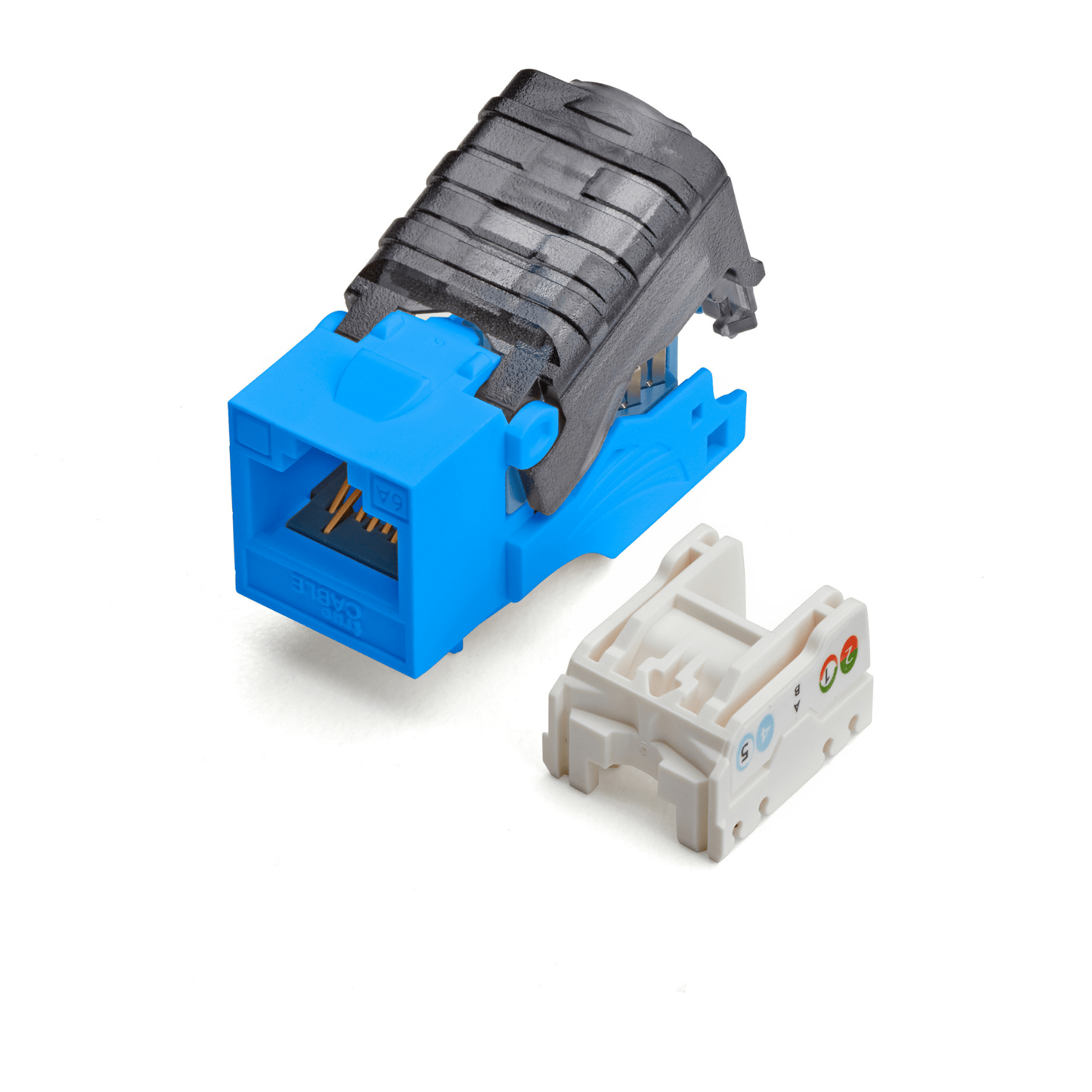

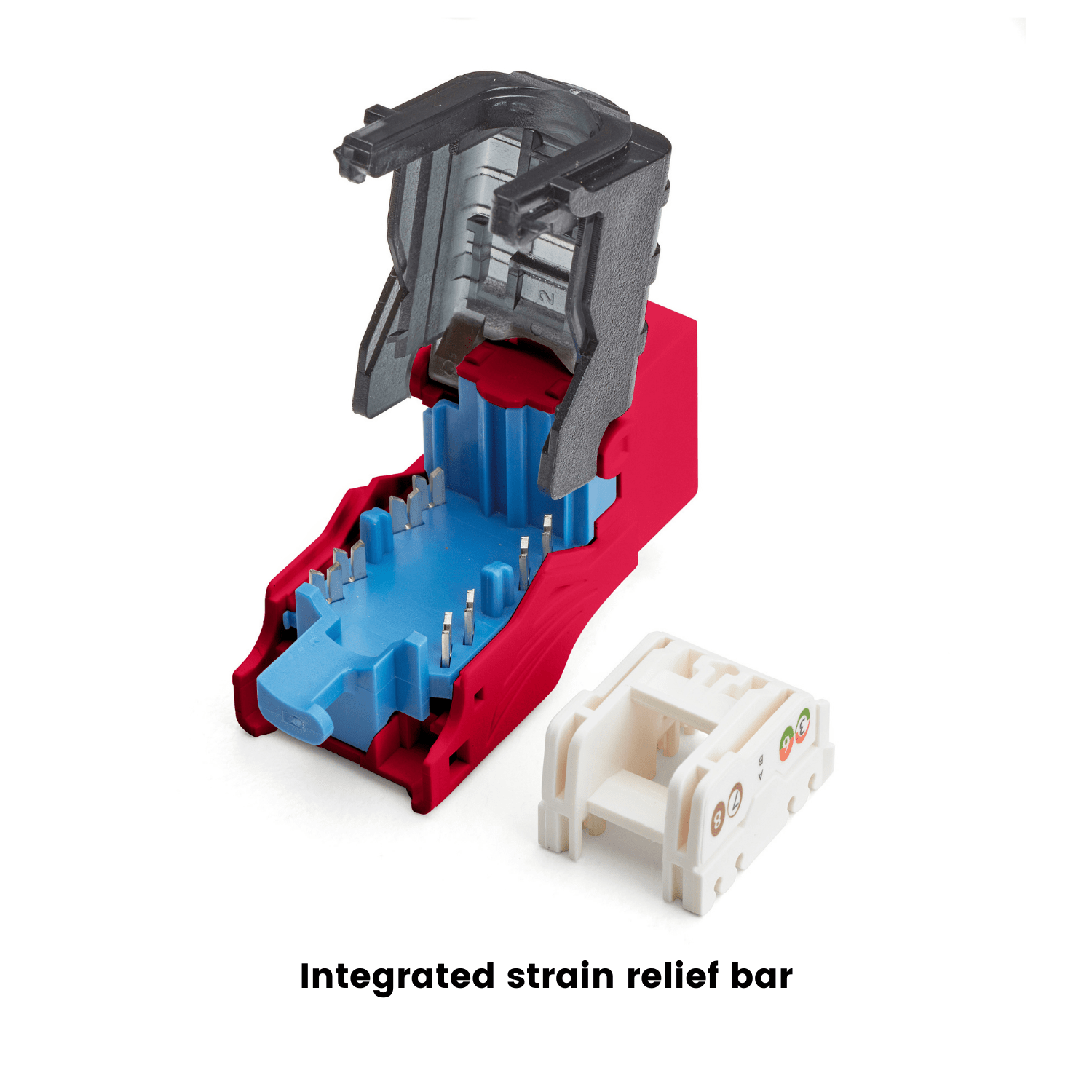

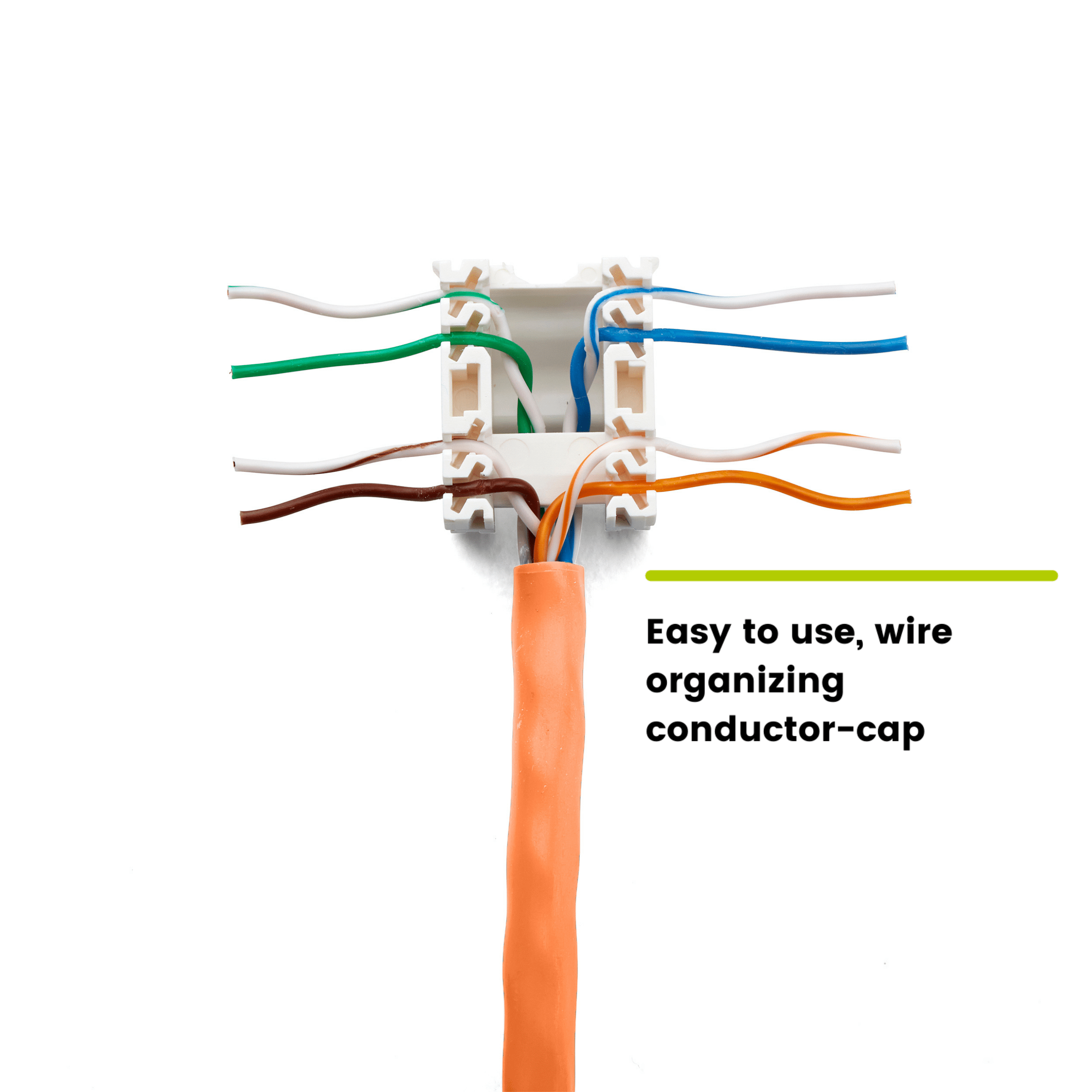

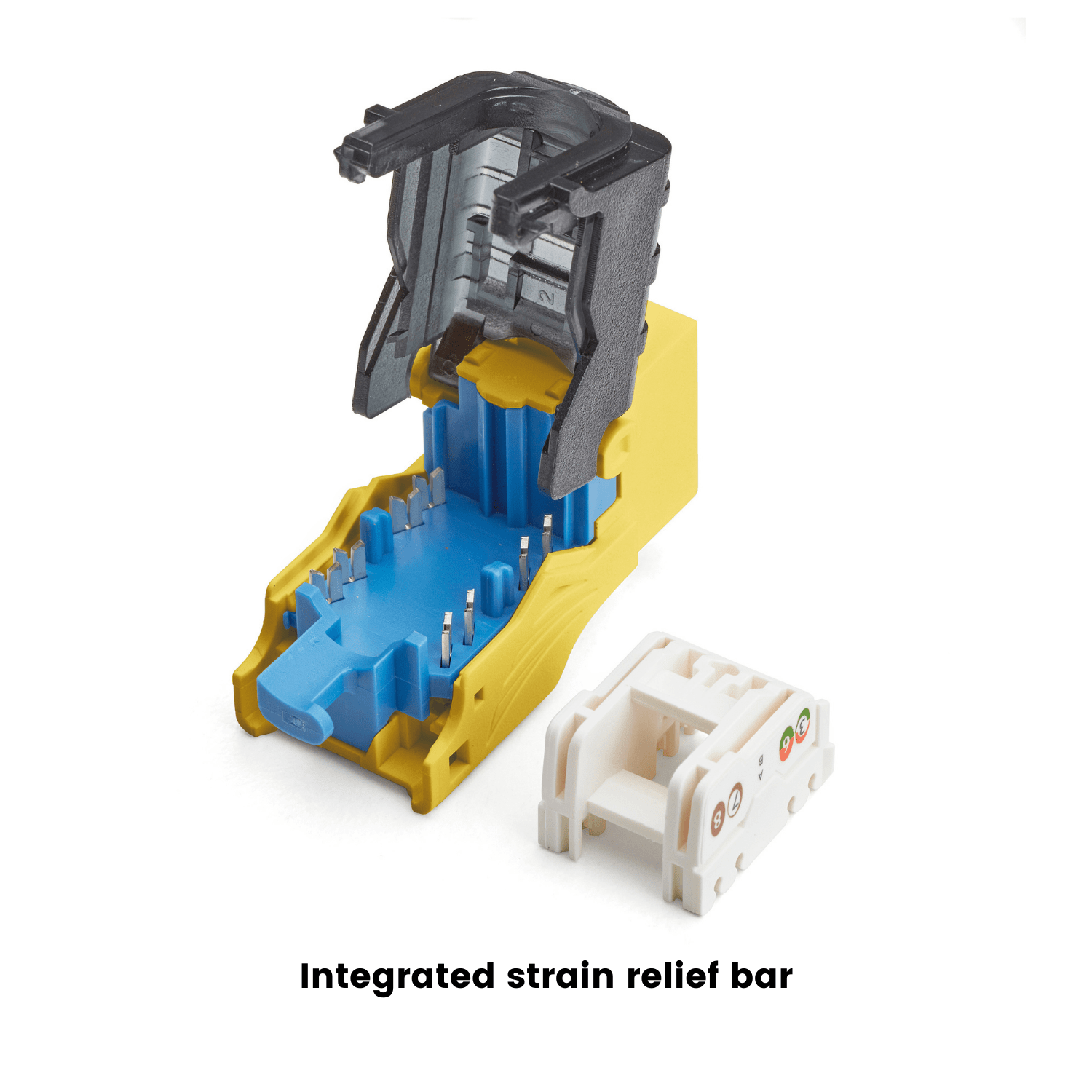

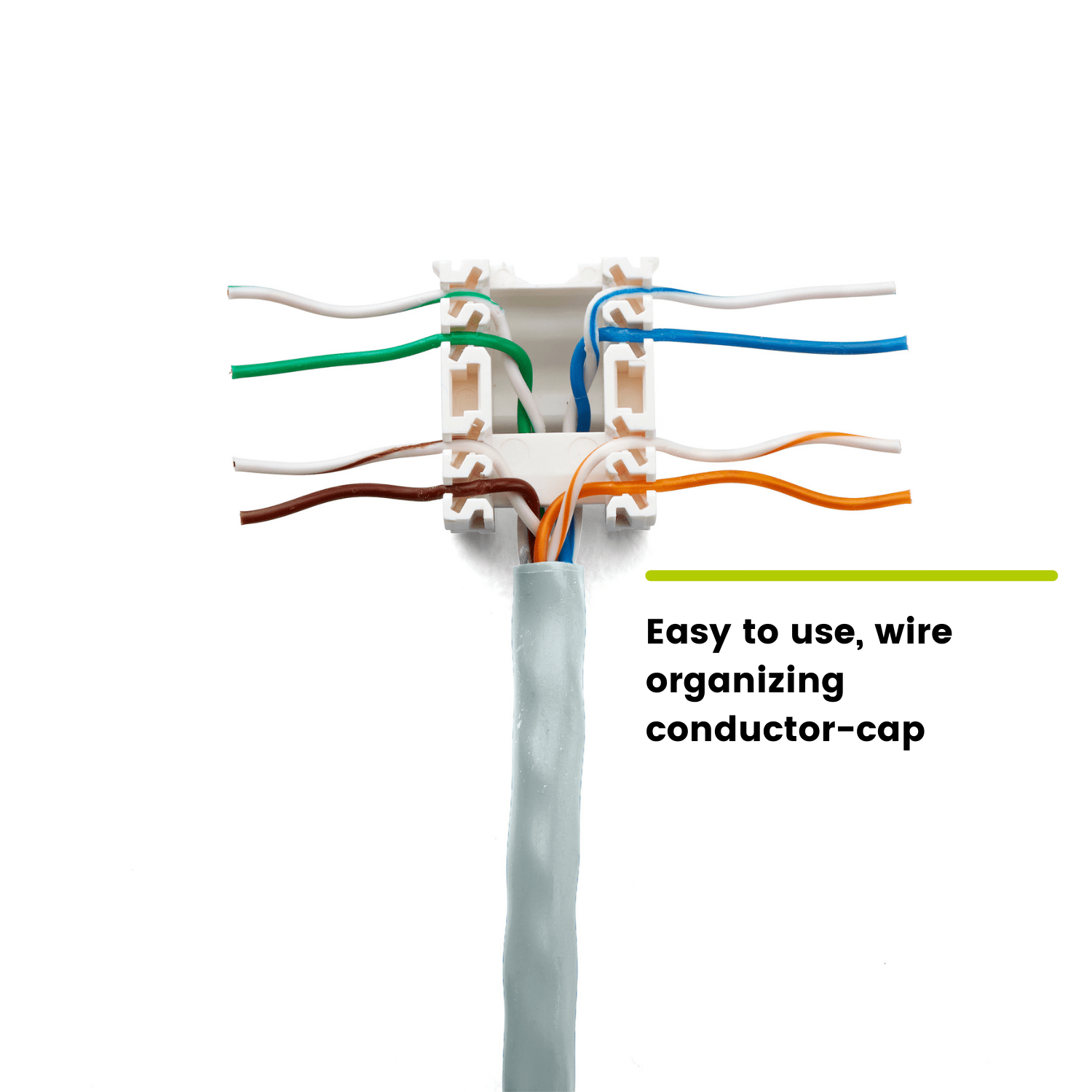

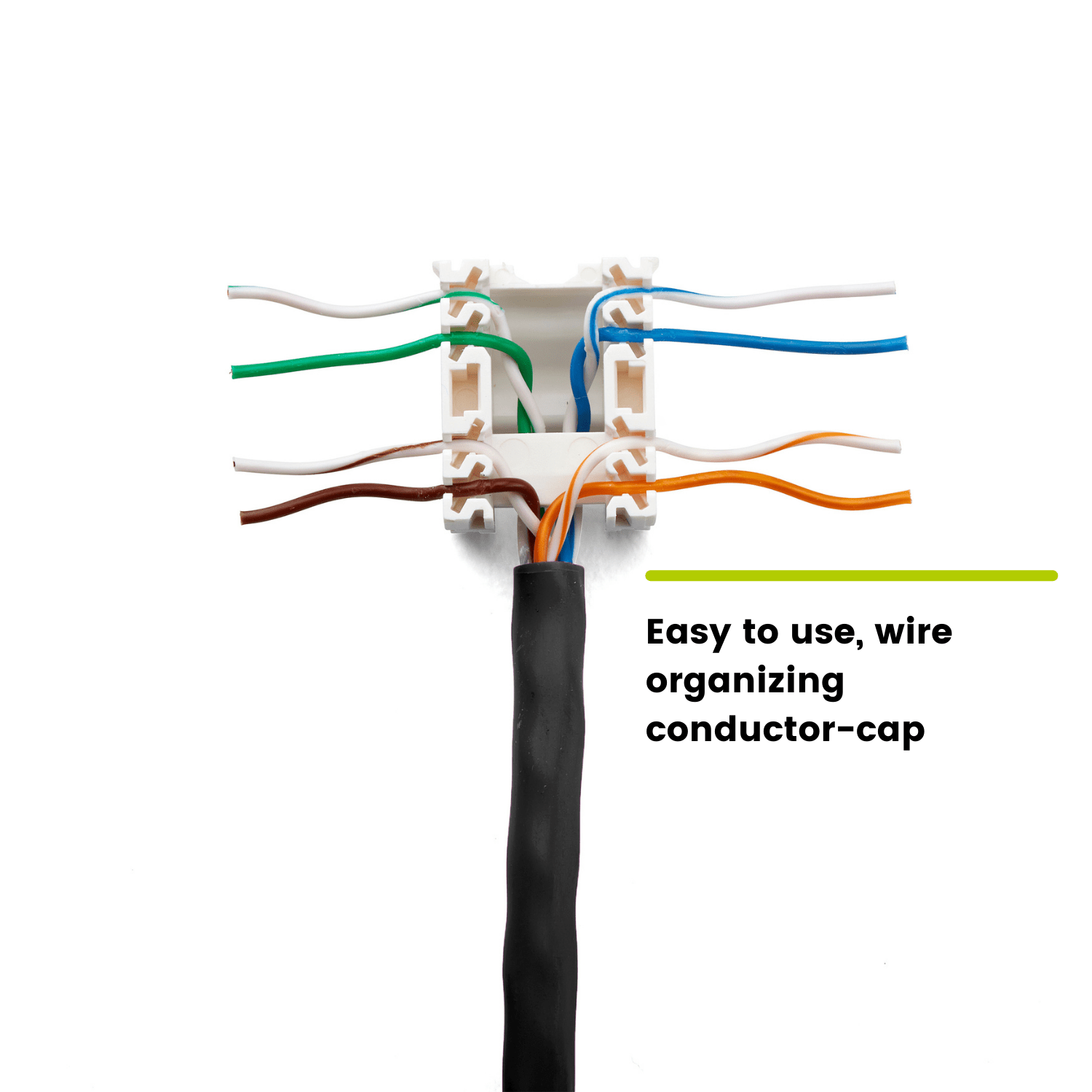

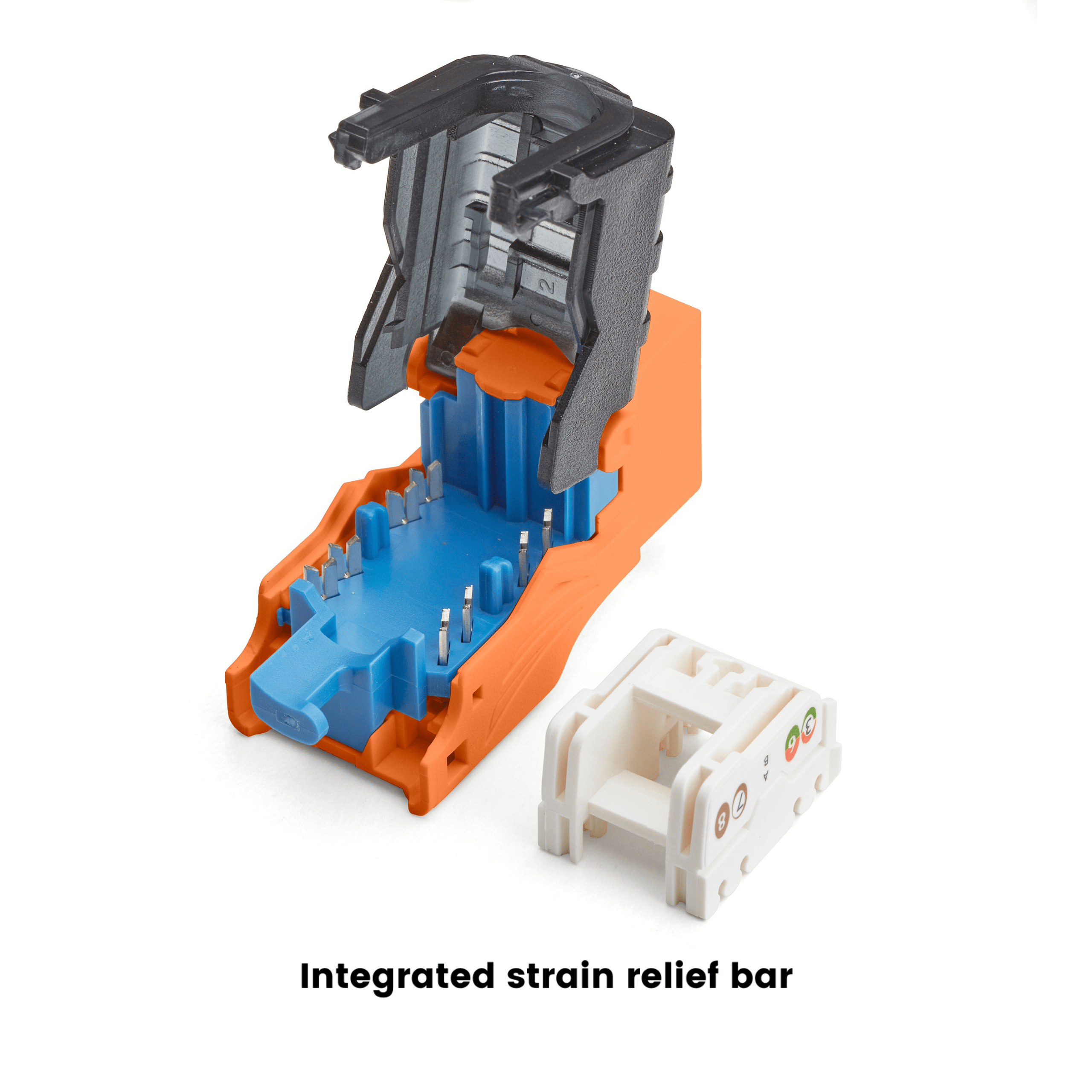

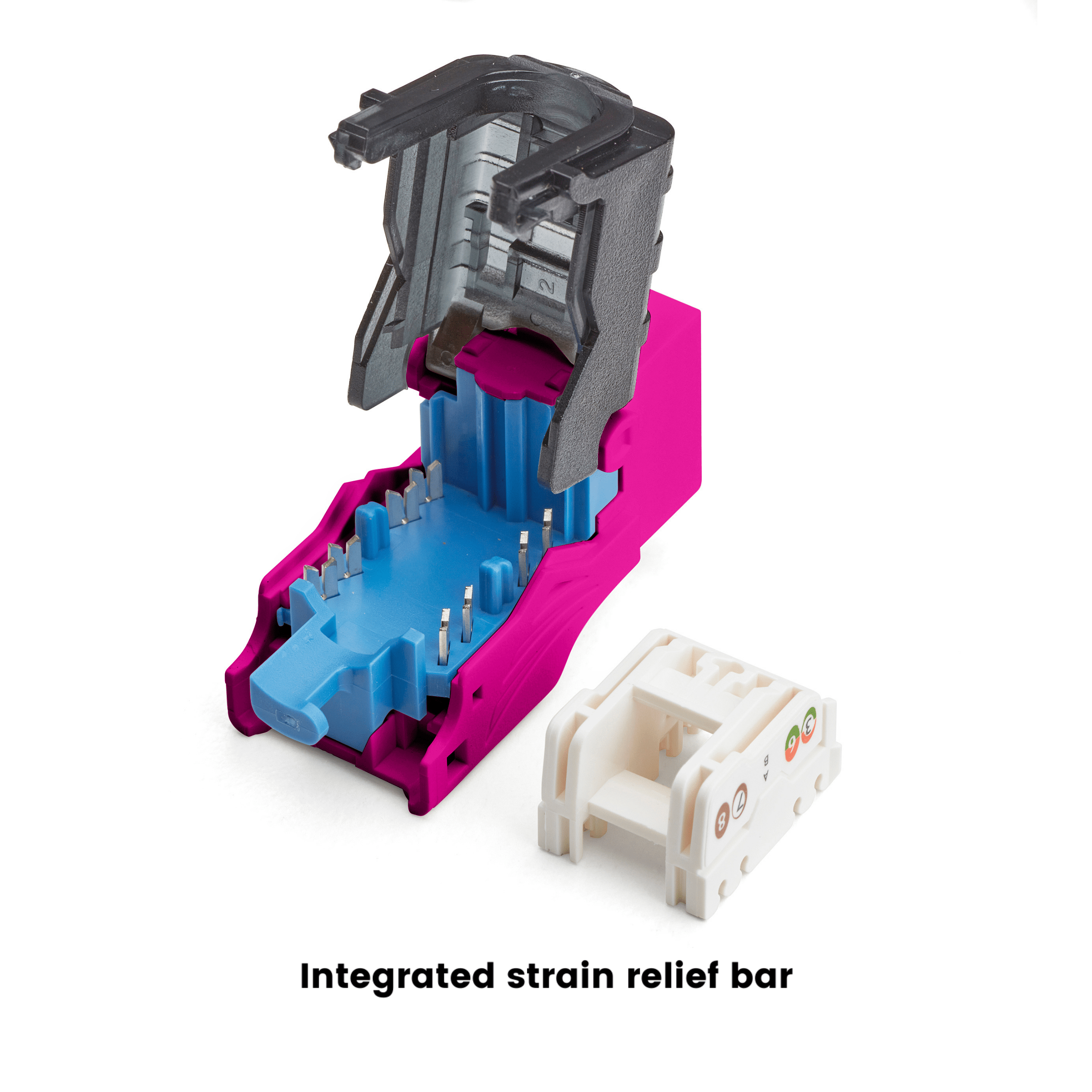

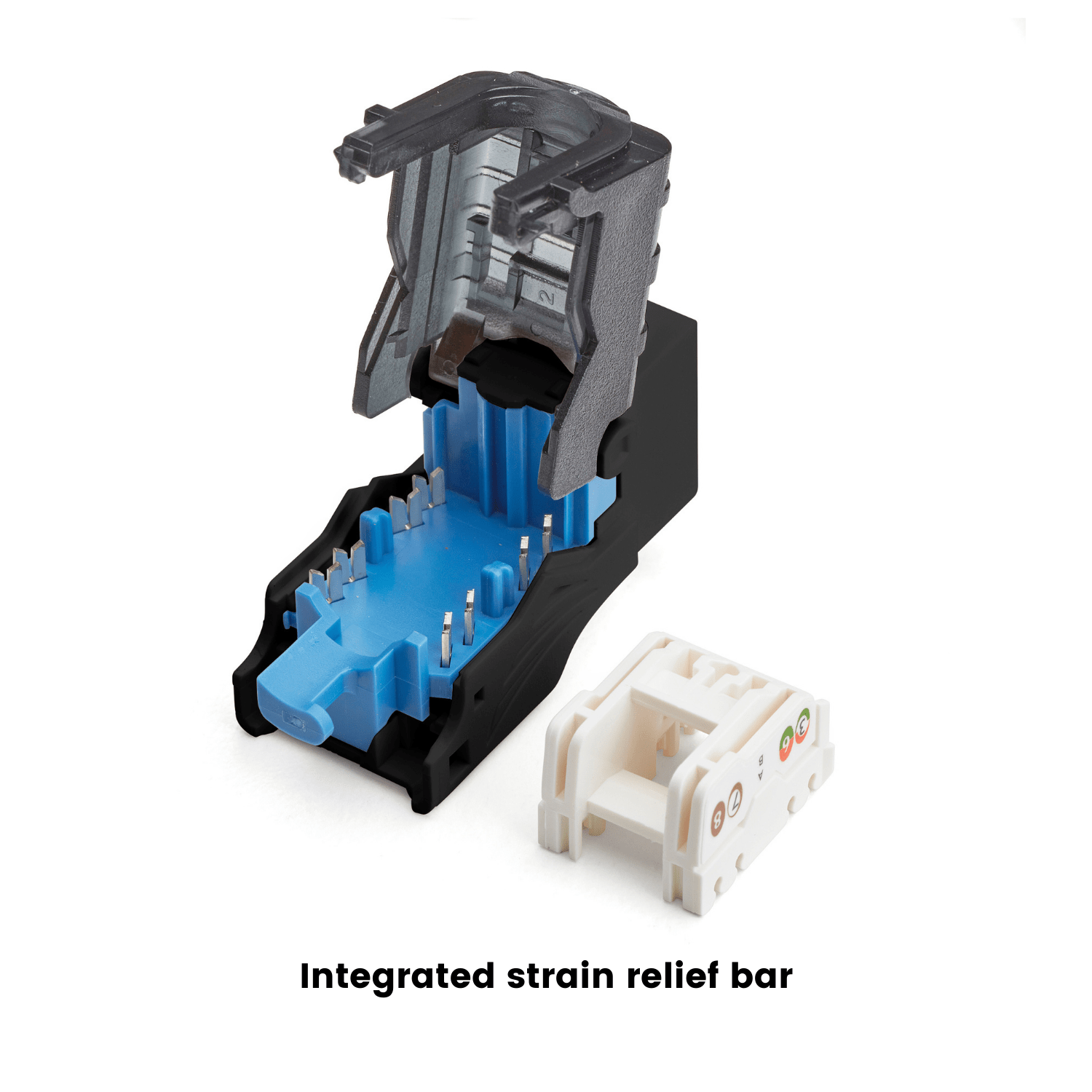

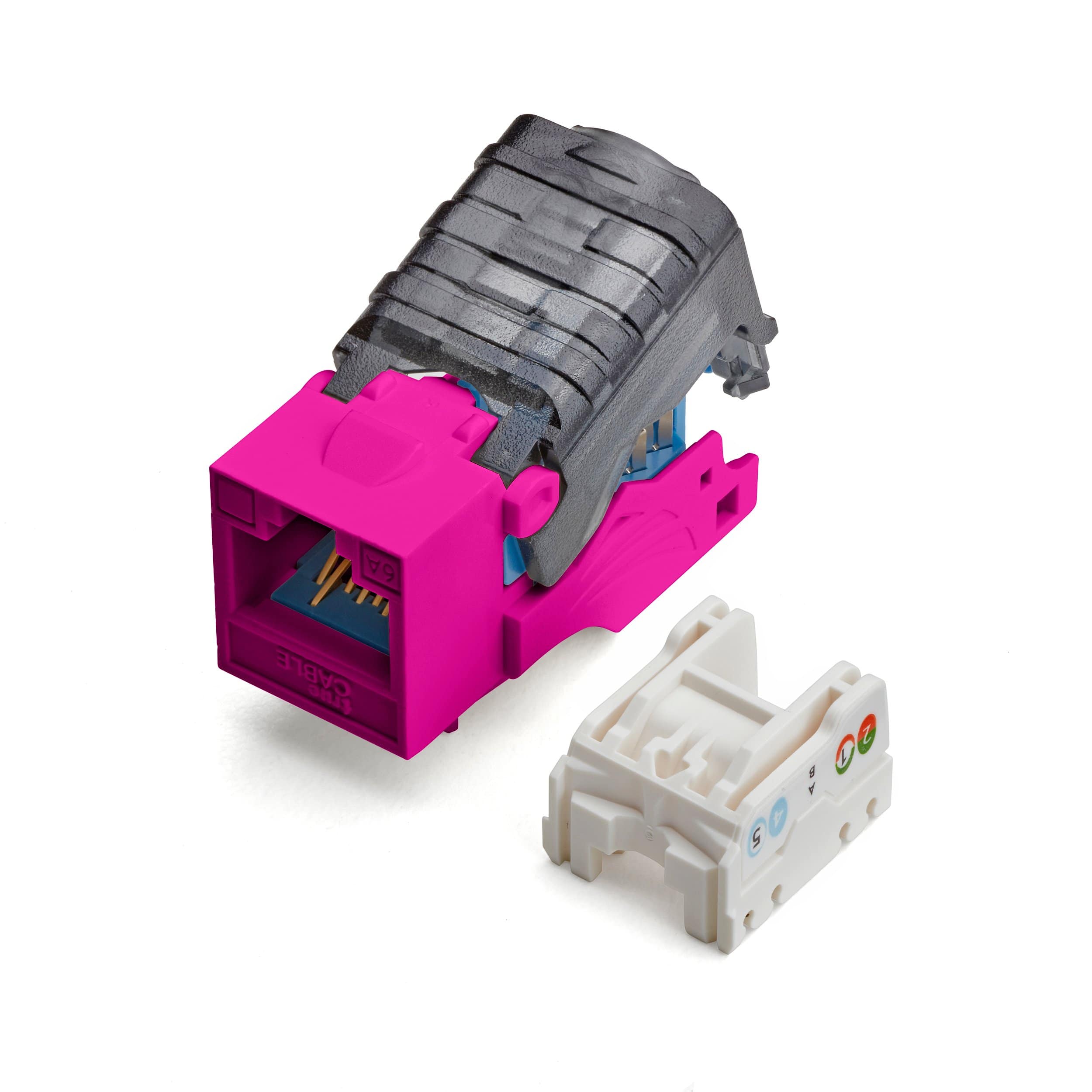

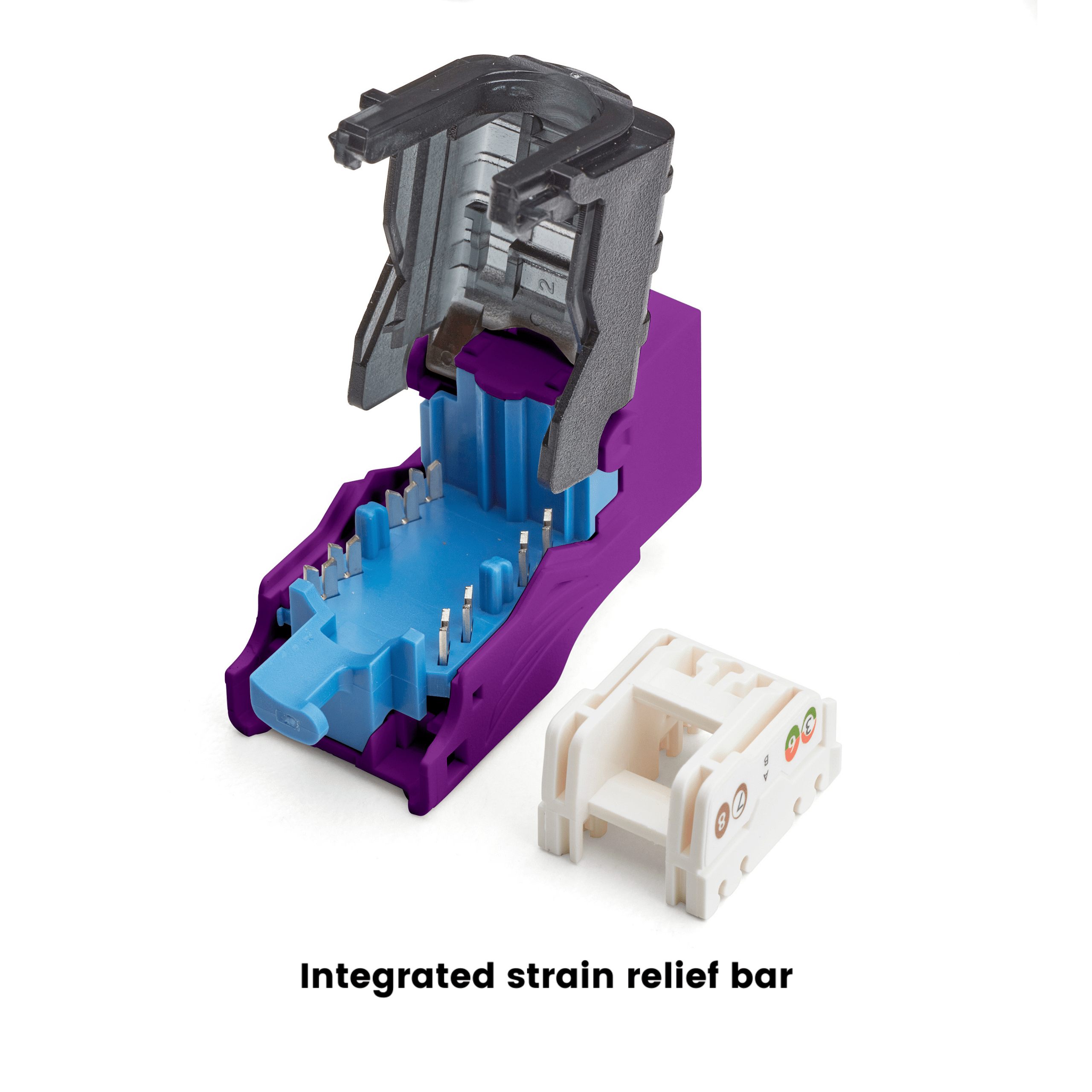

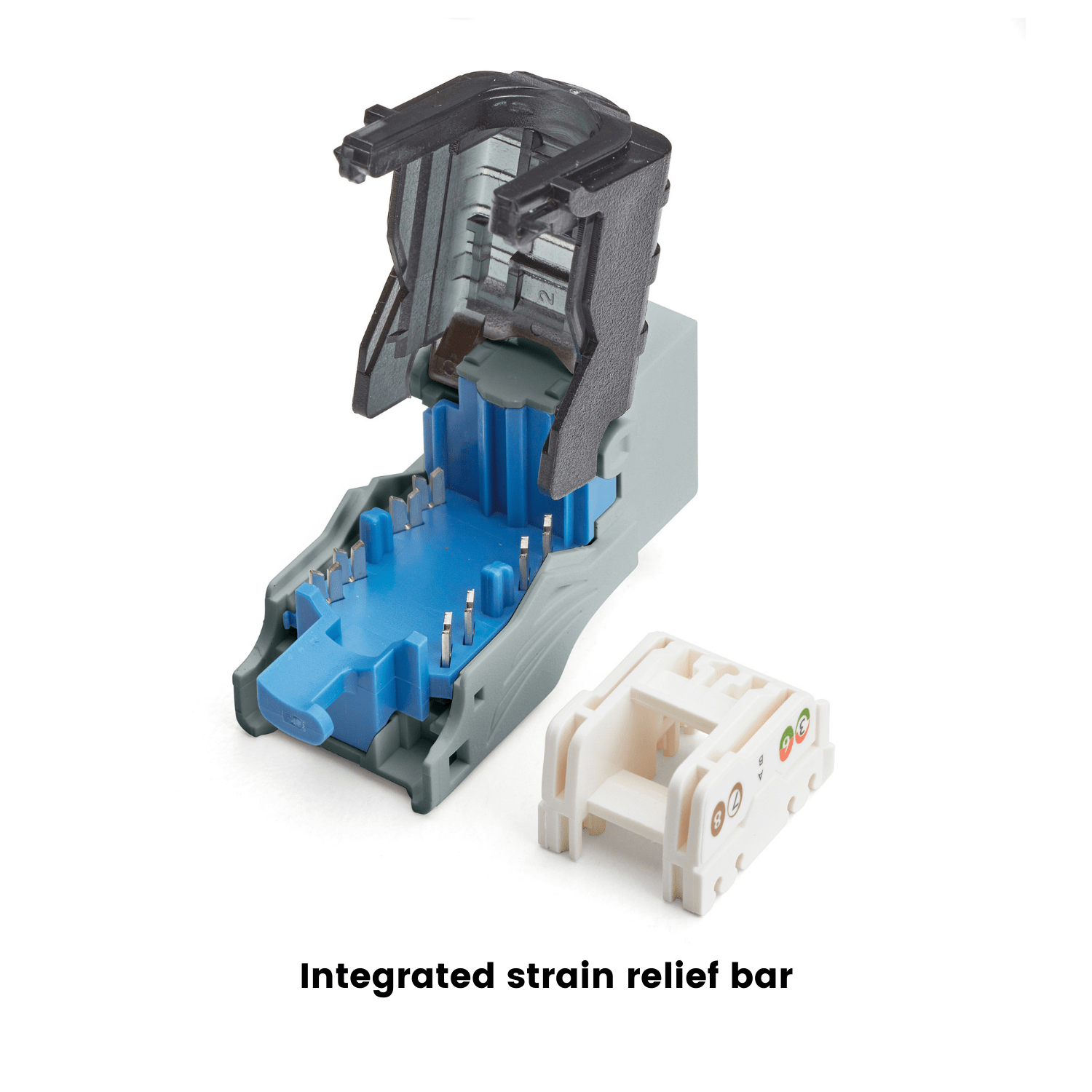

  • 90 degree tool-less design with conductor wiring cap

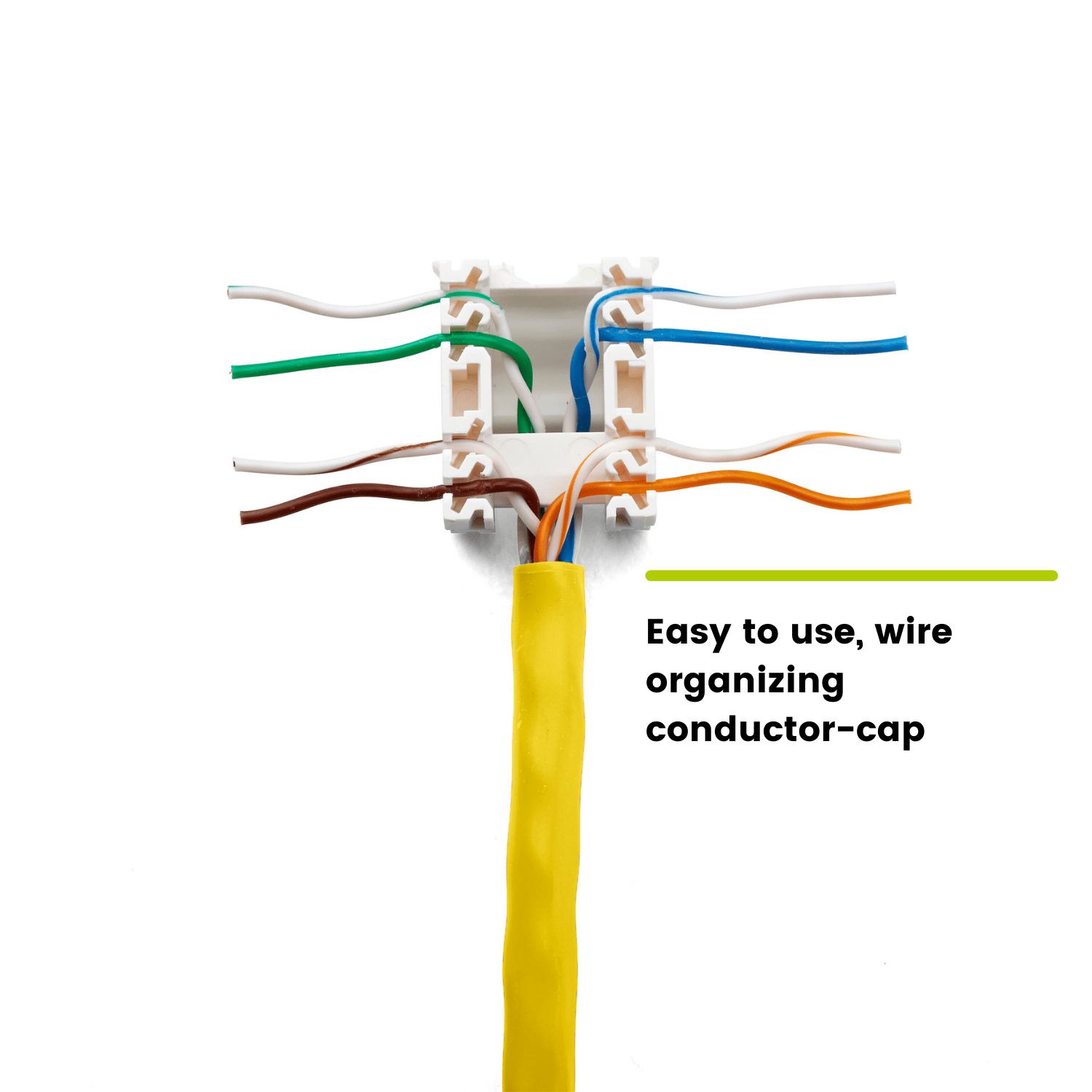

  • T568A and T568B wiring code printed on side of conductor wiring cap
  • For use with unshielded (U/UTP) Ethernet cables
  • 100% compatible with any standard wall plate or patch panel
  • 110 impact tool not required. Our trueCLOSE tool is recommended for closure of tool-less mechanism when working with thick insulated conductors

Quality Guaranteed

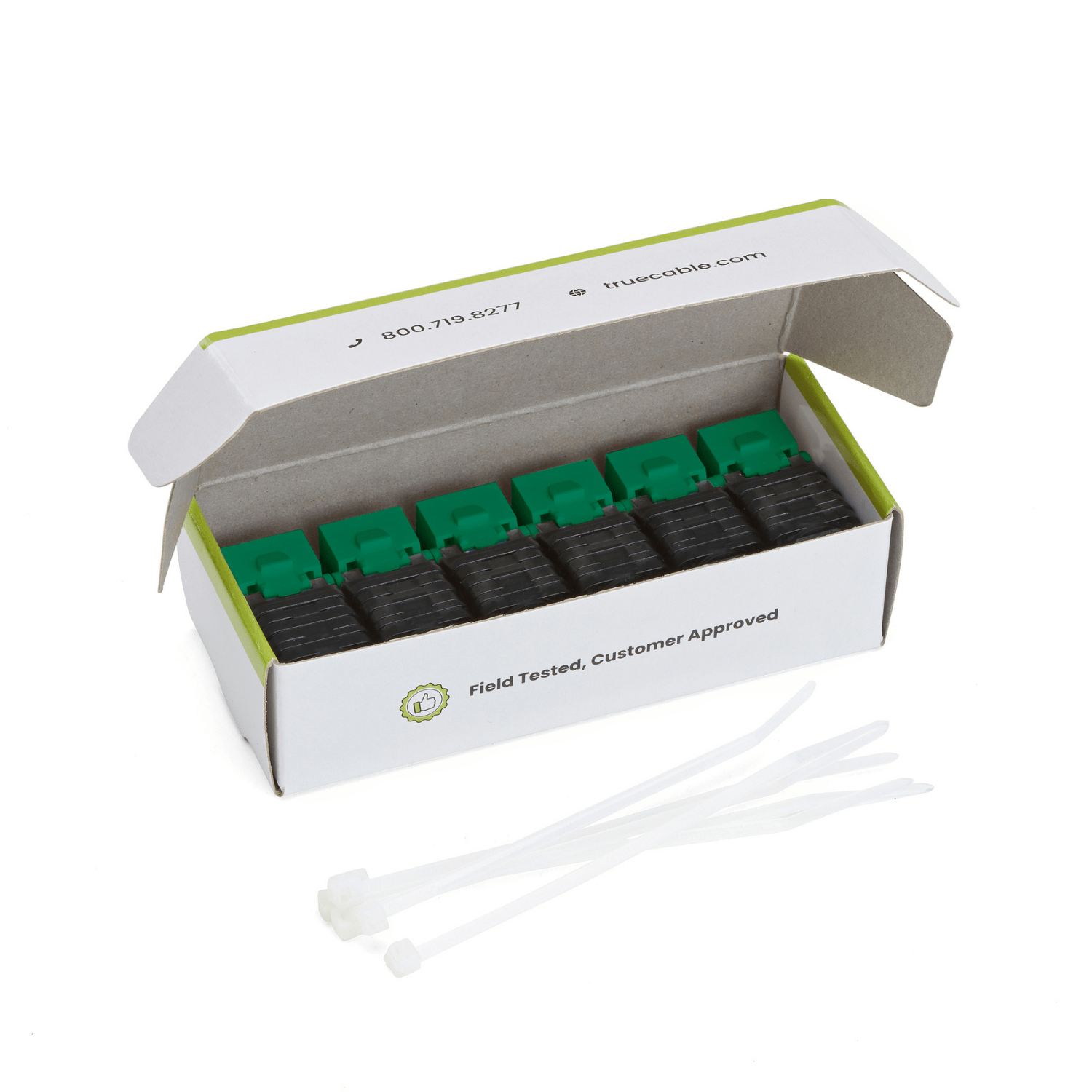

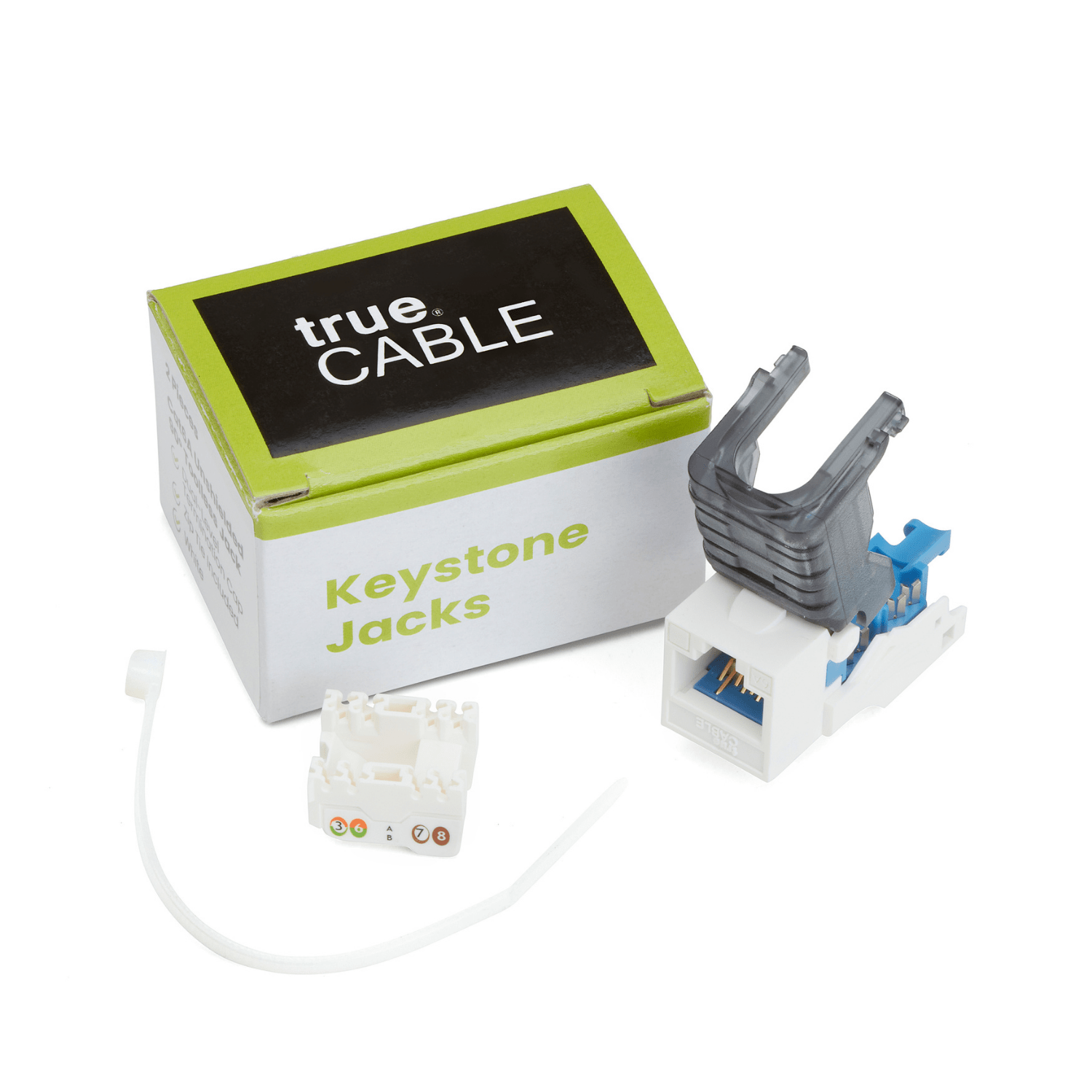

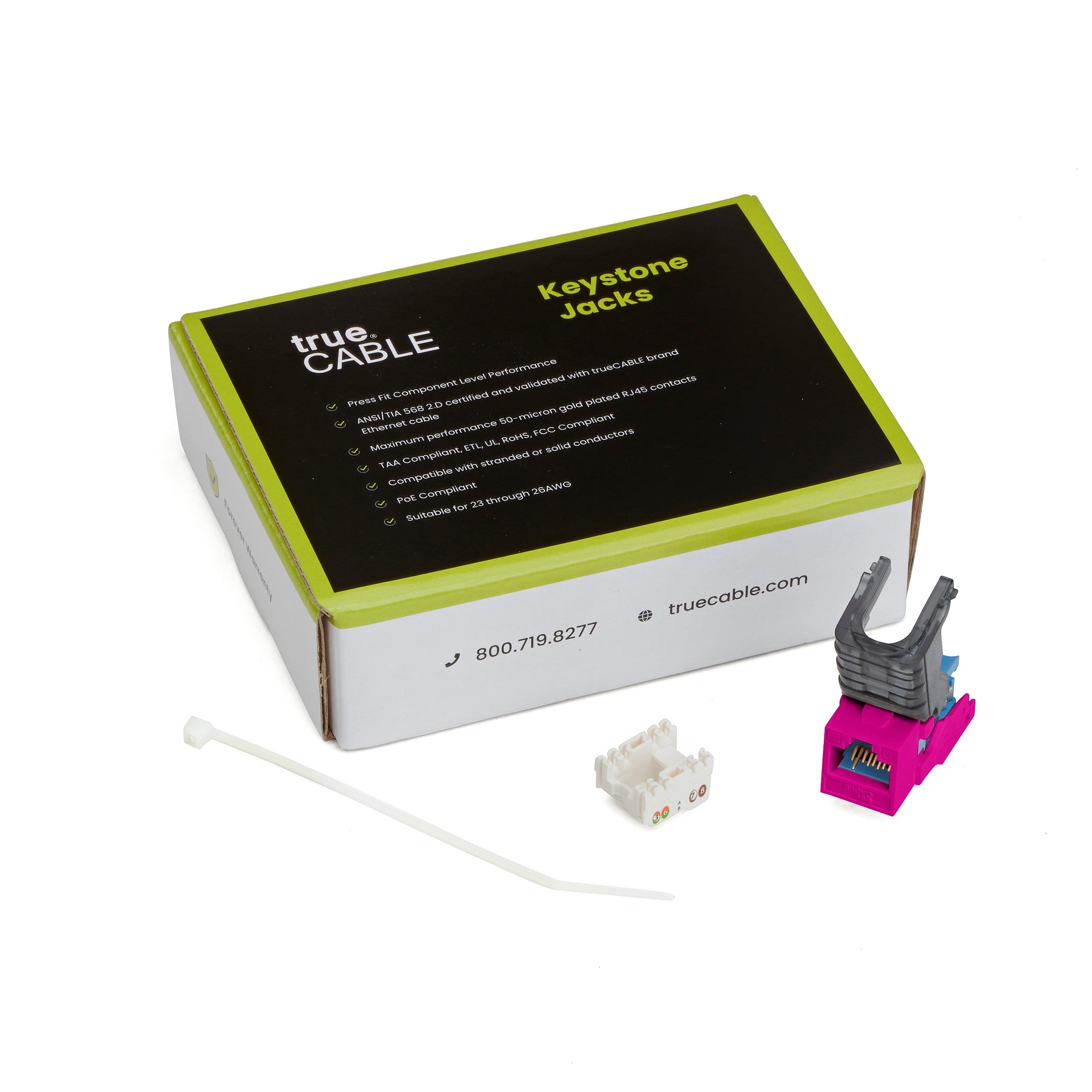

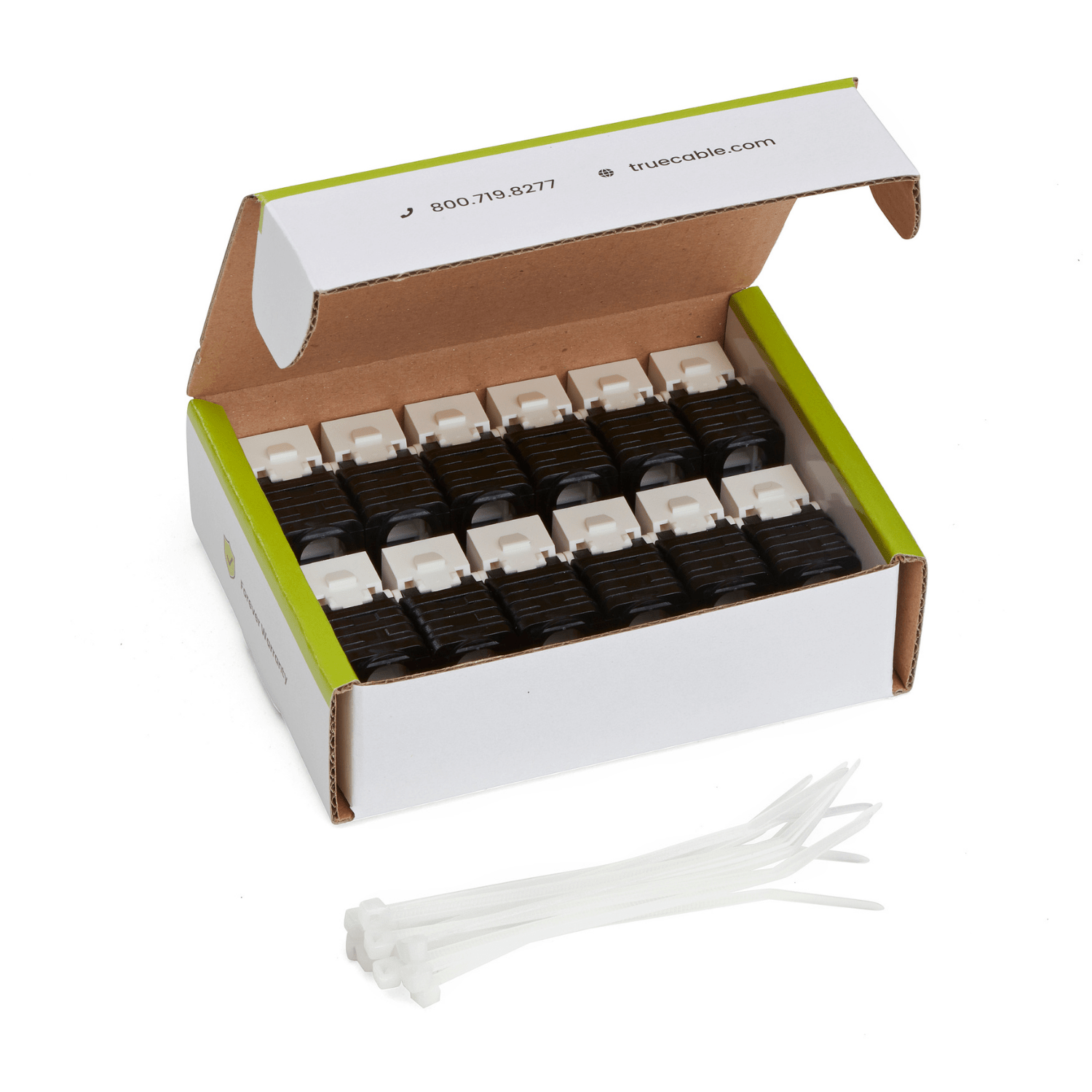

What's In The Box?

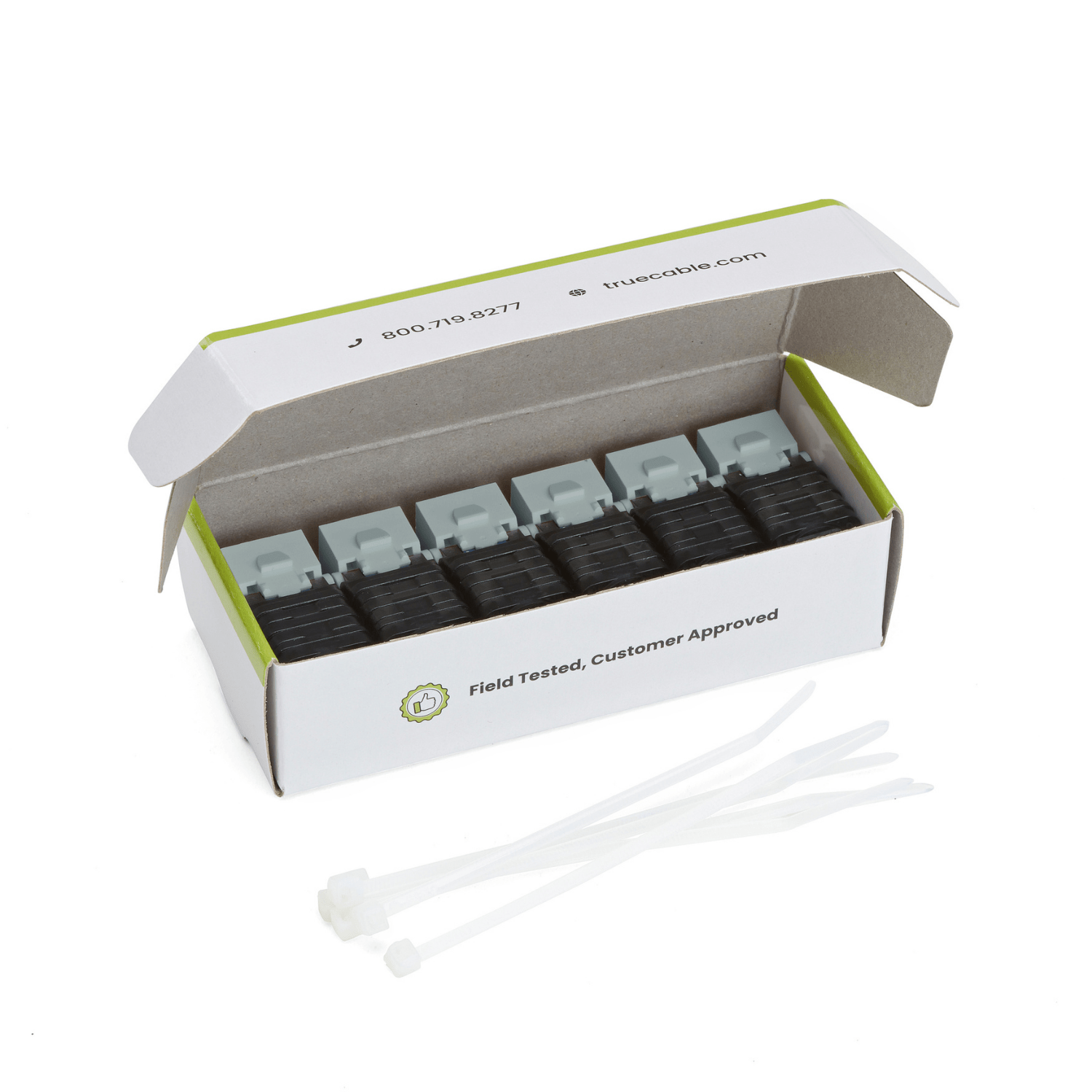

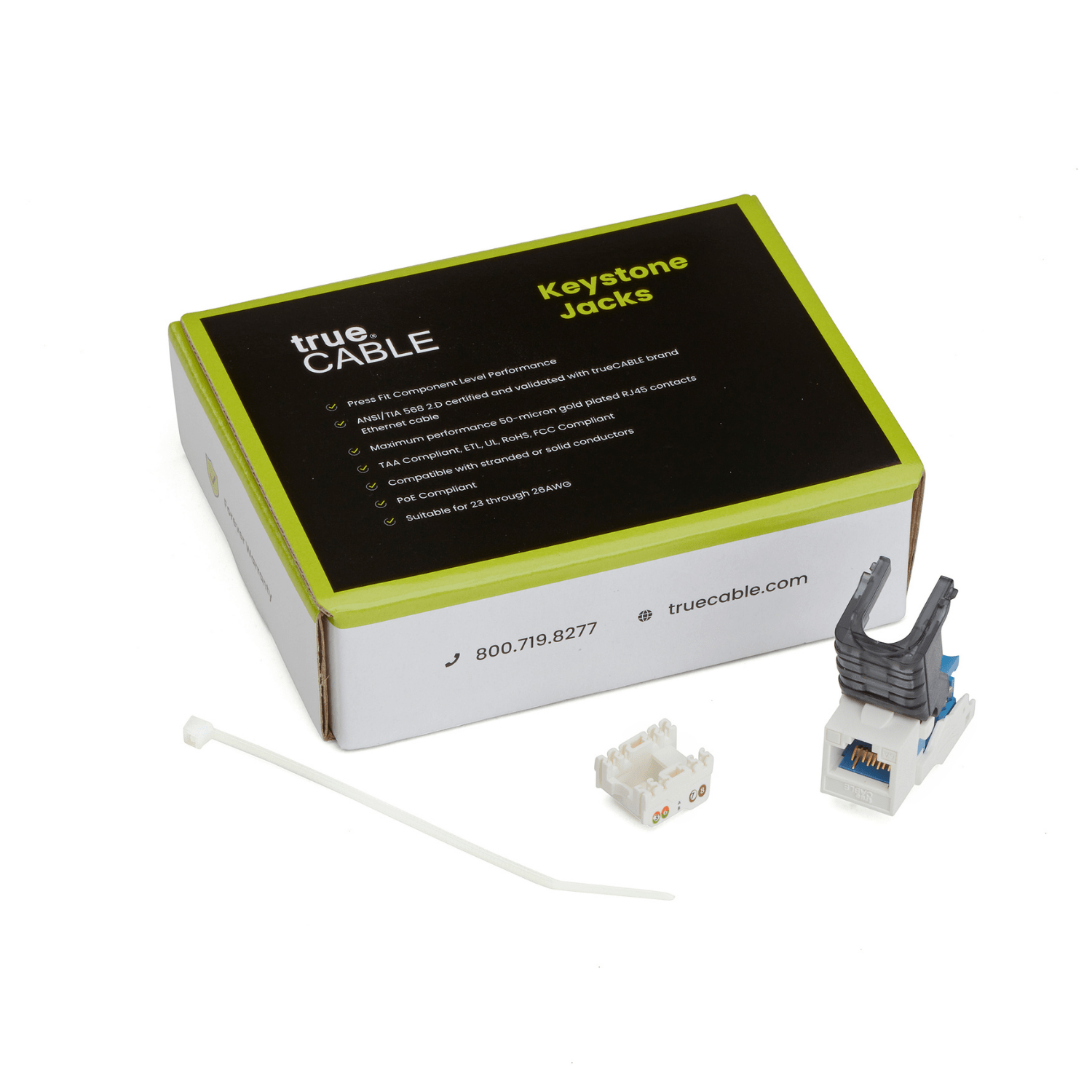

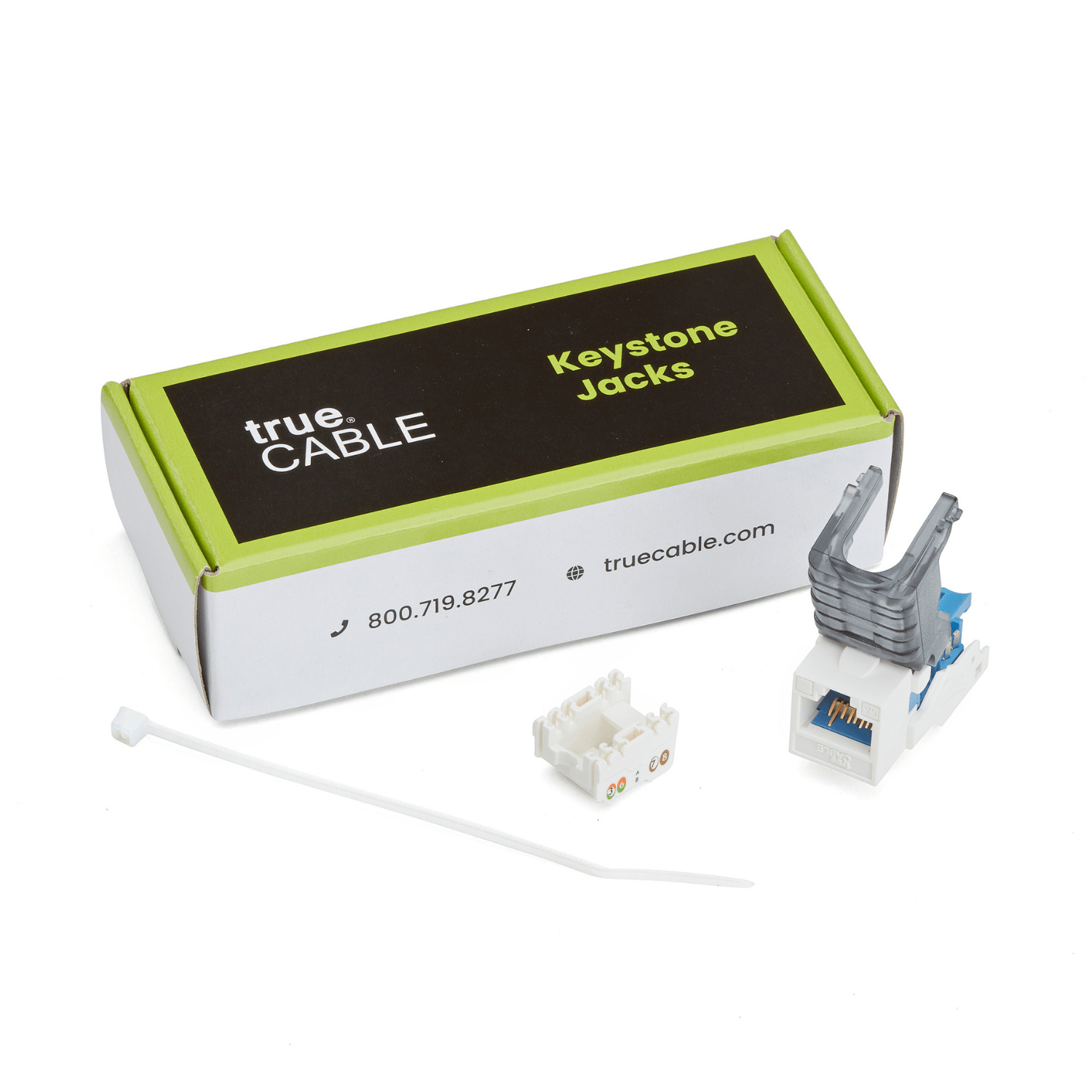

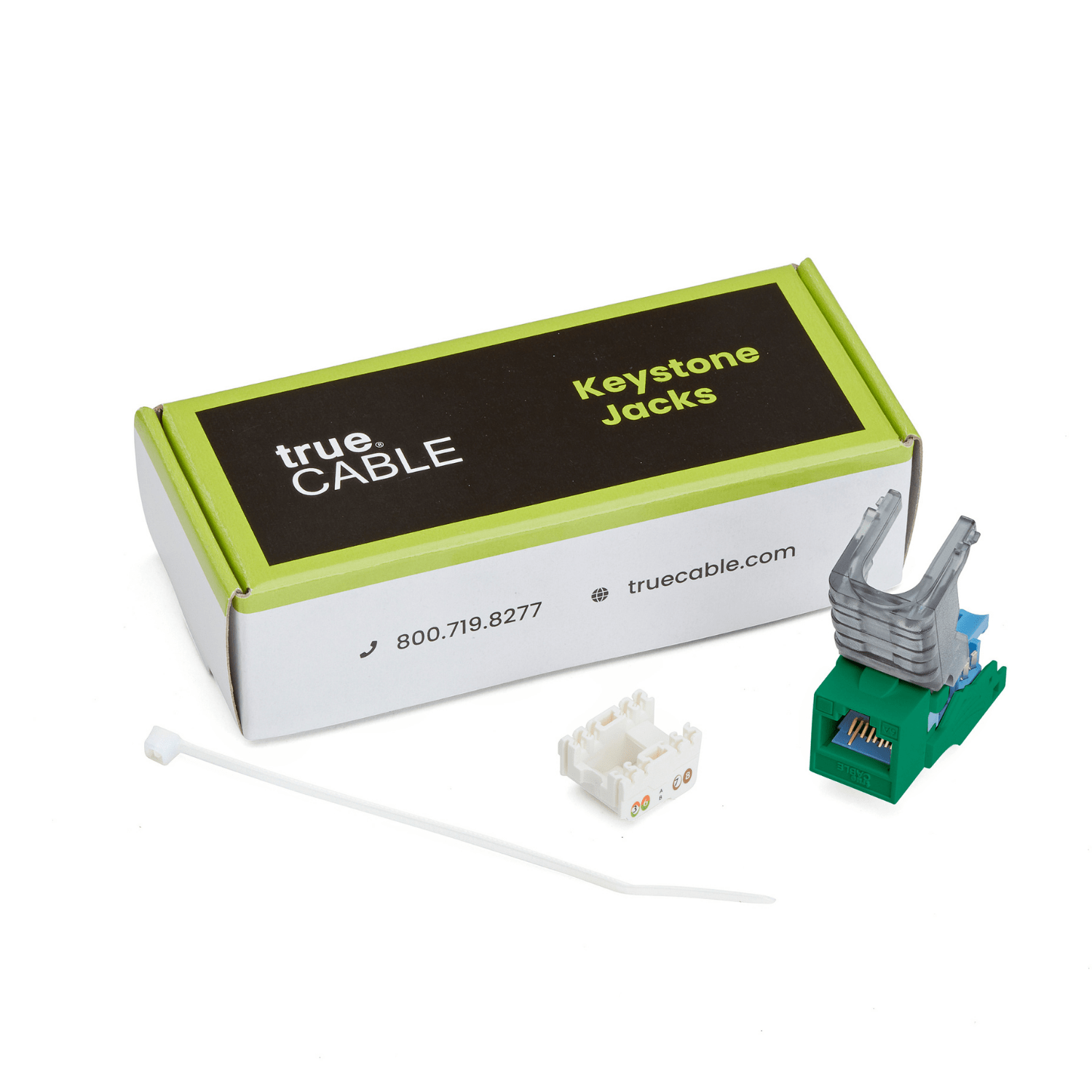

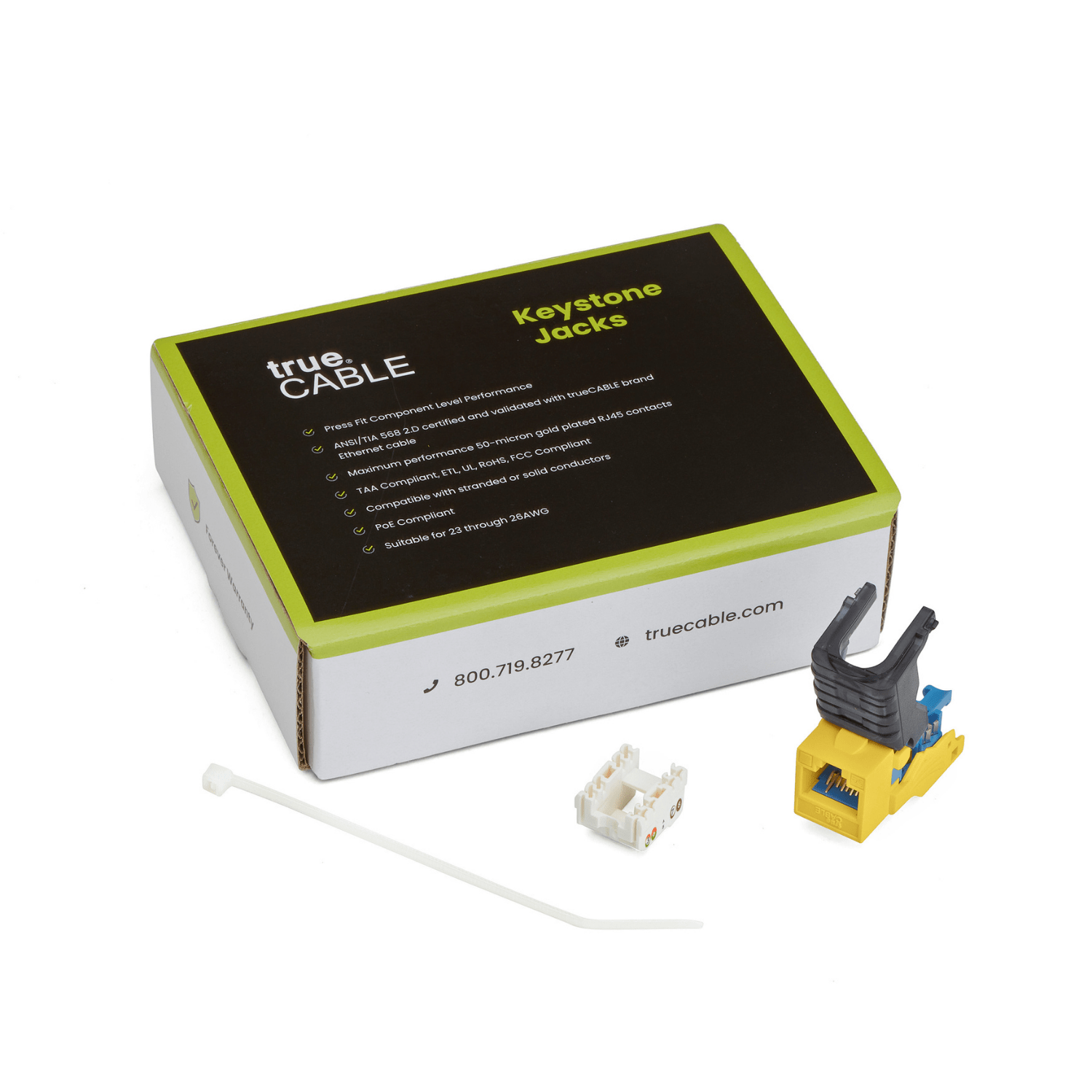

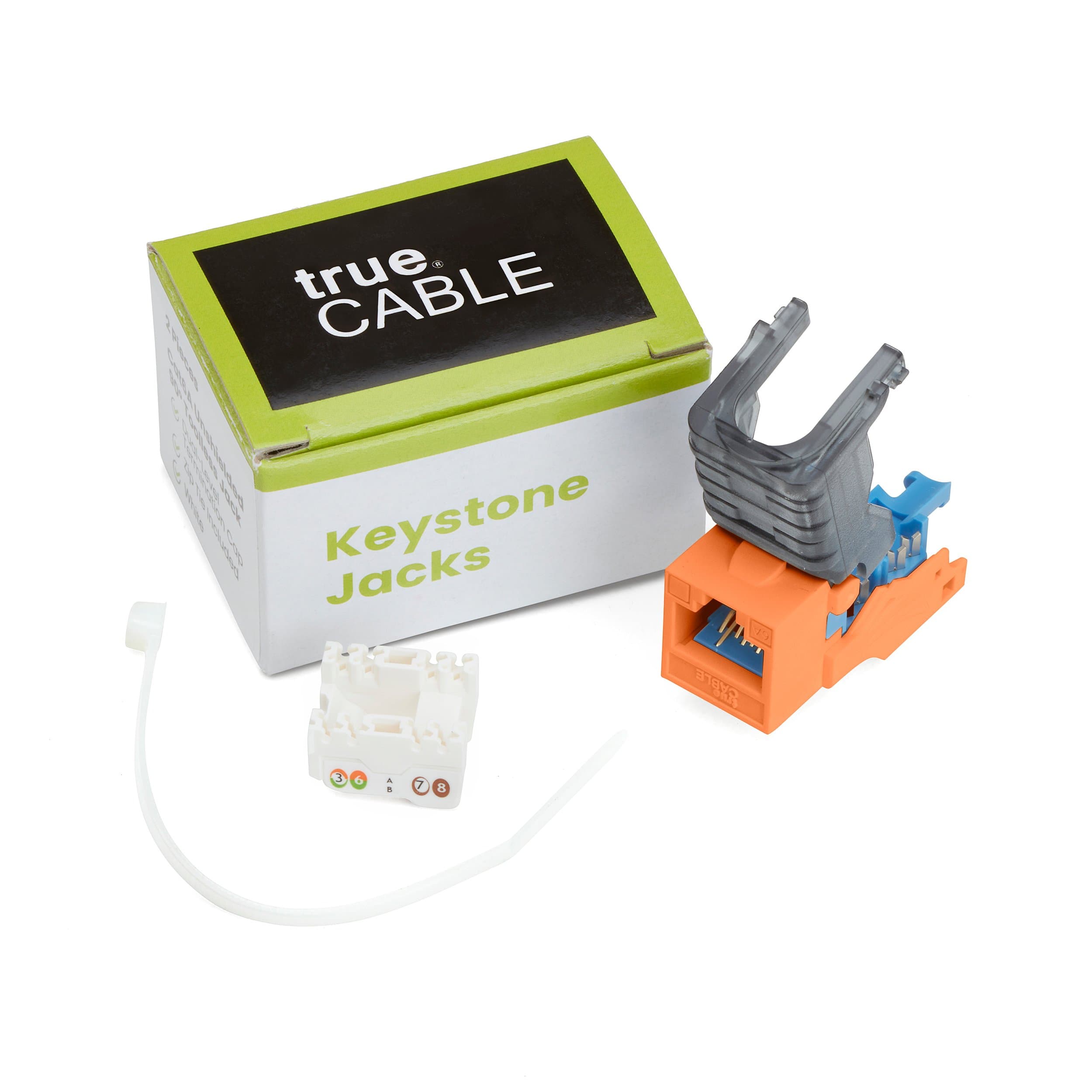

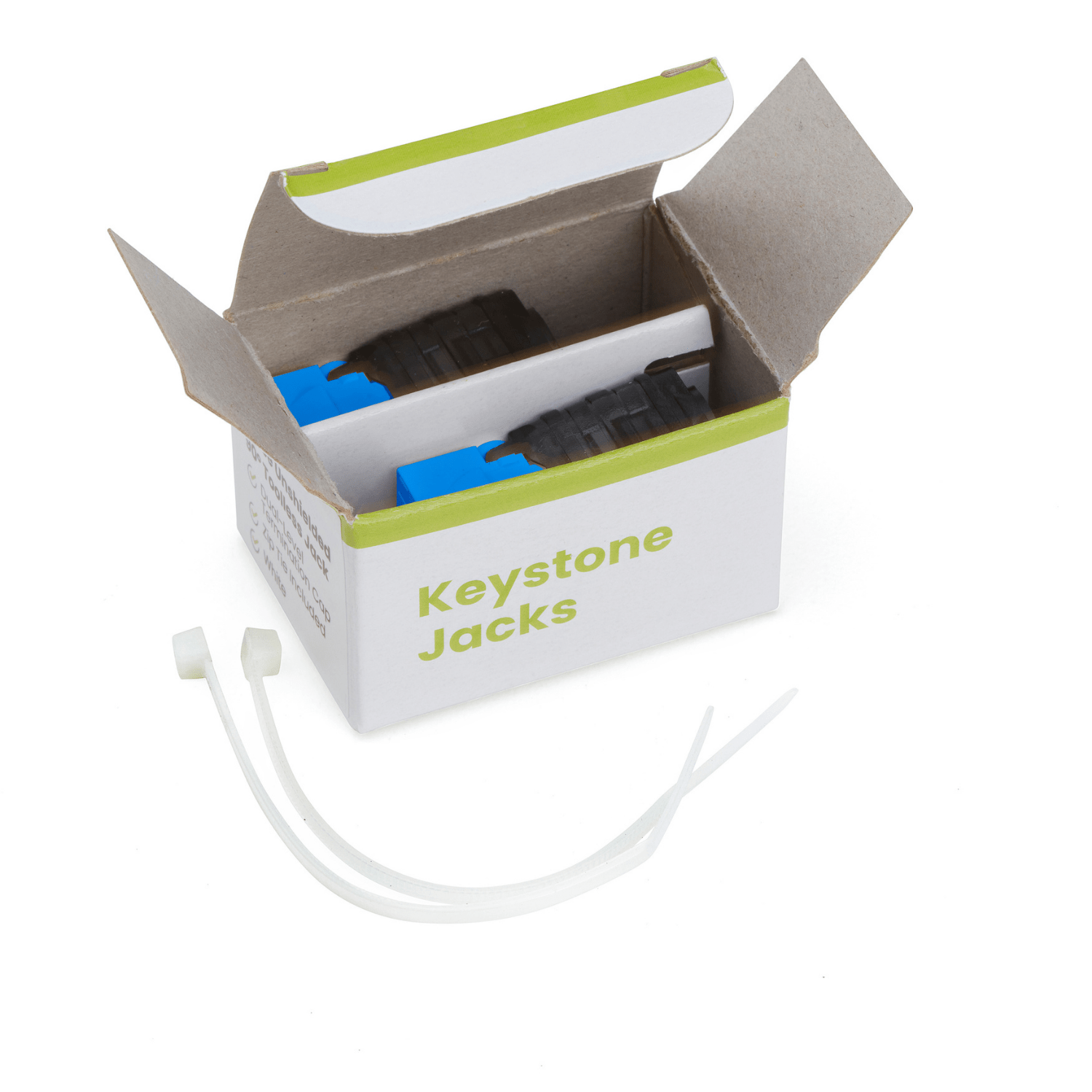

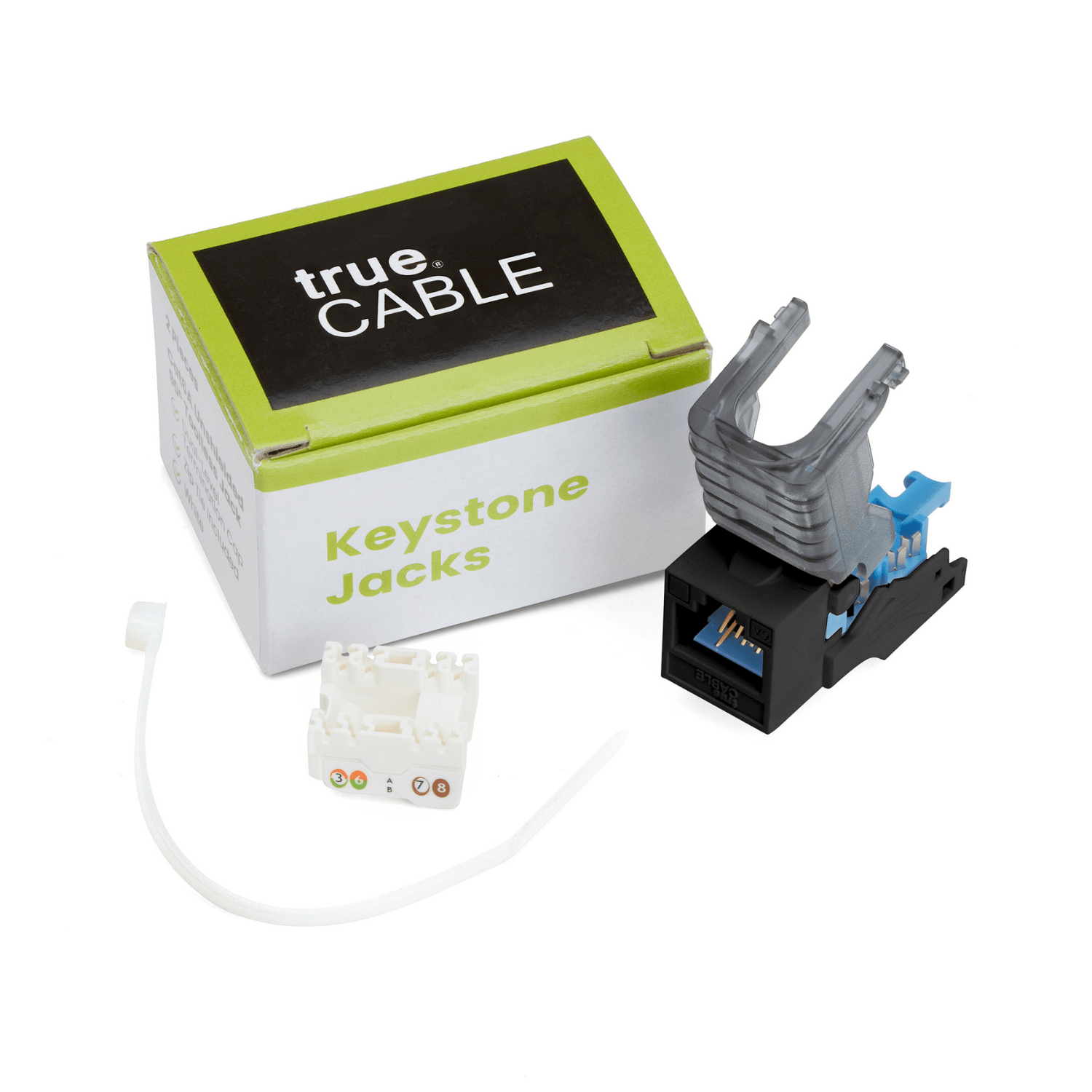

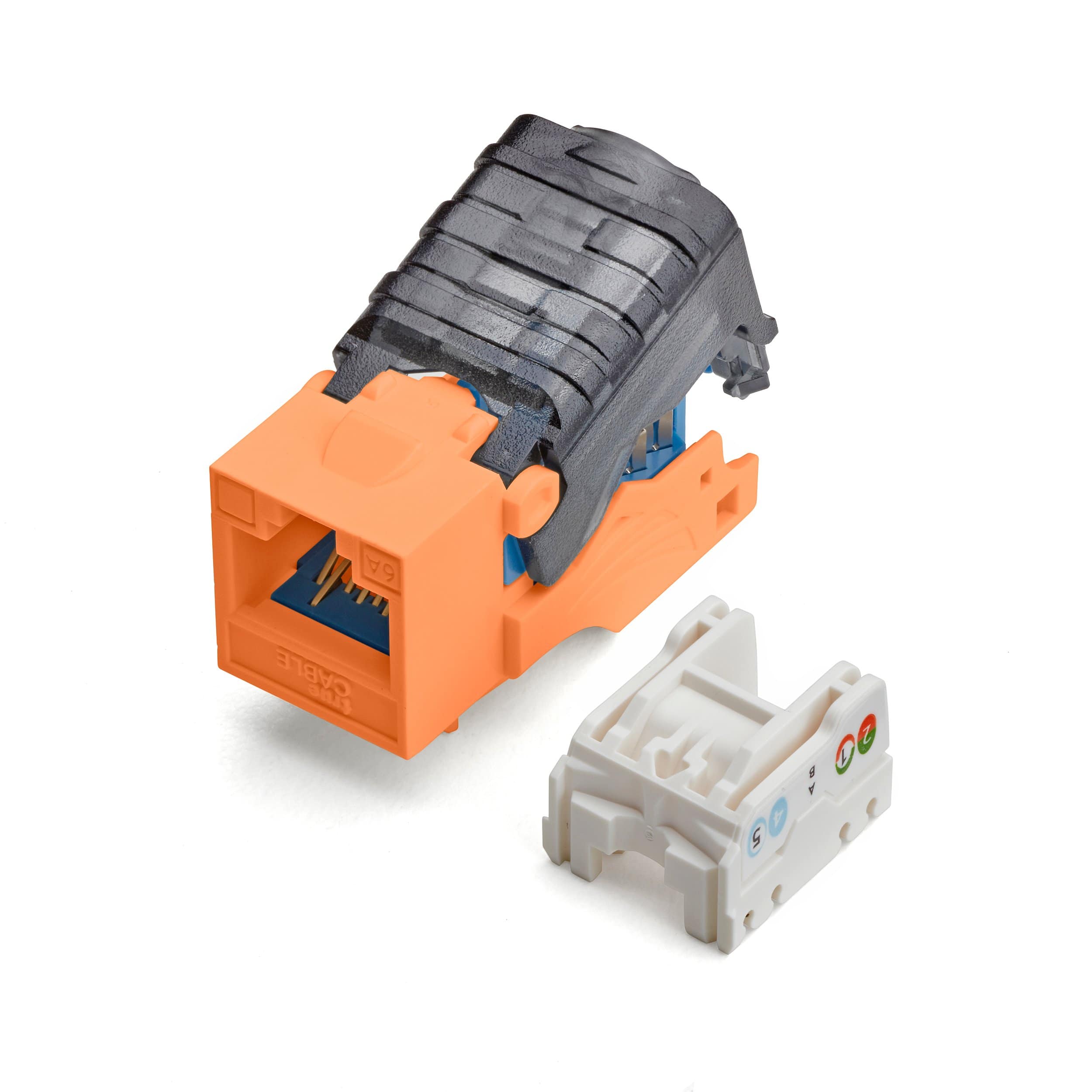

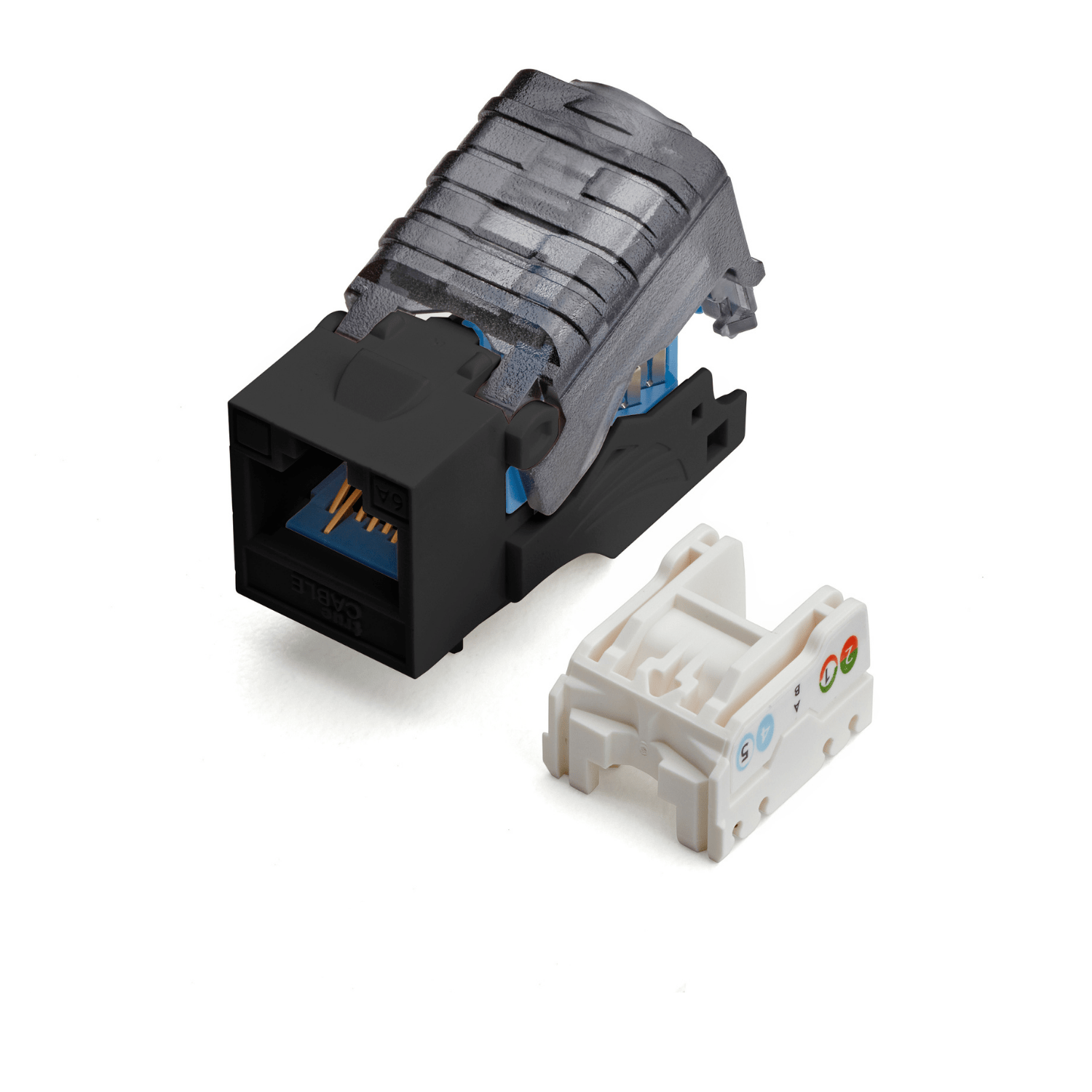

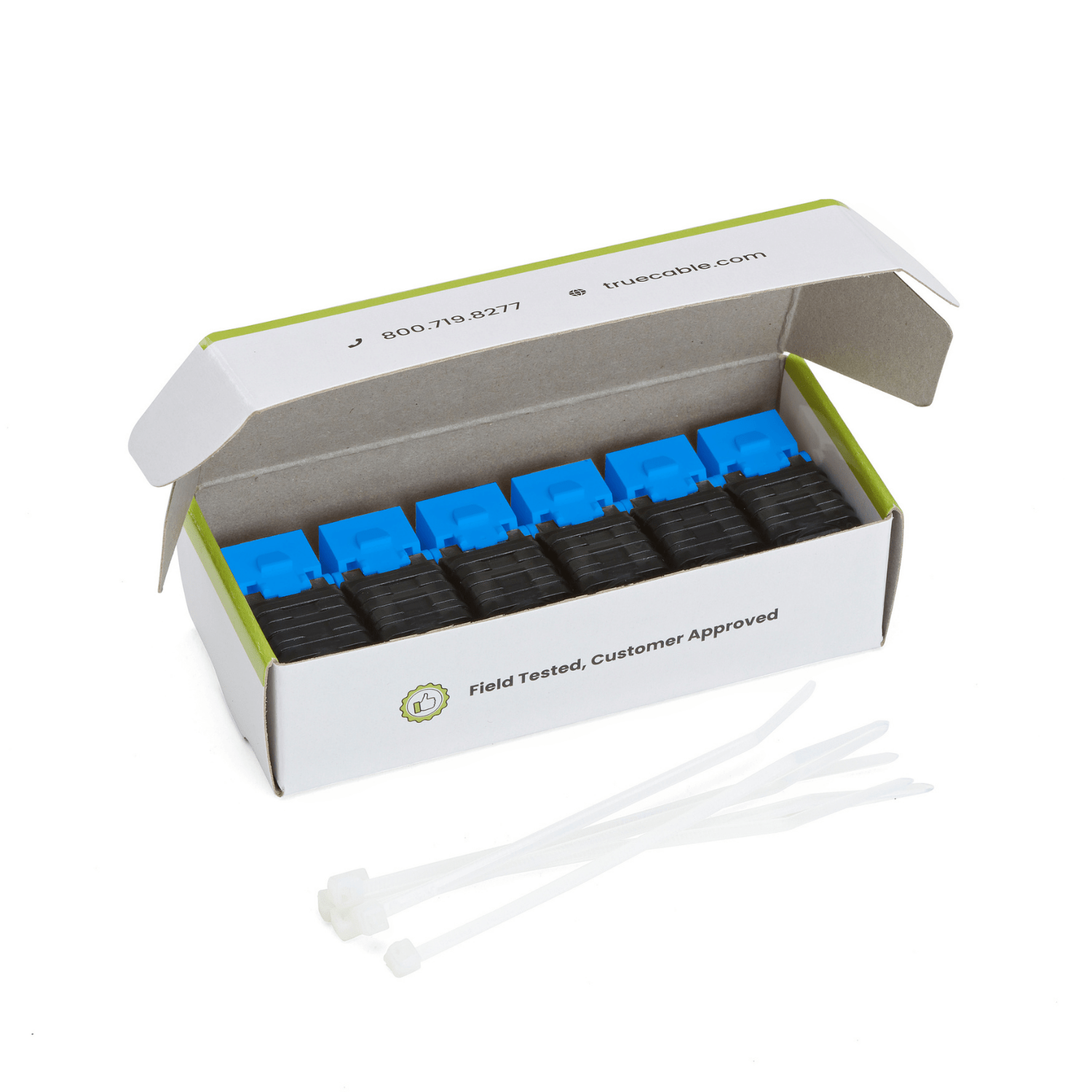

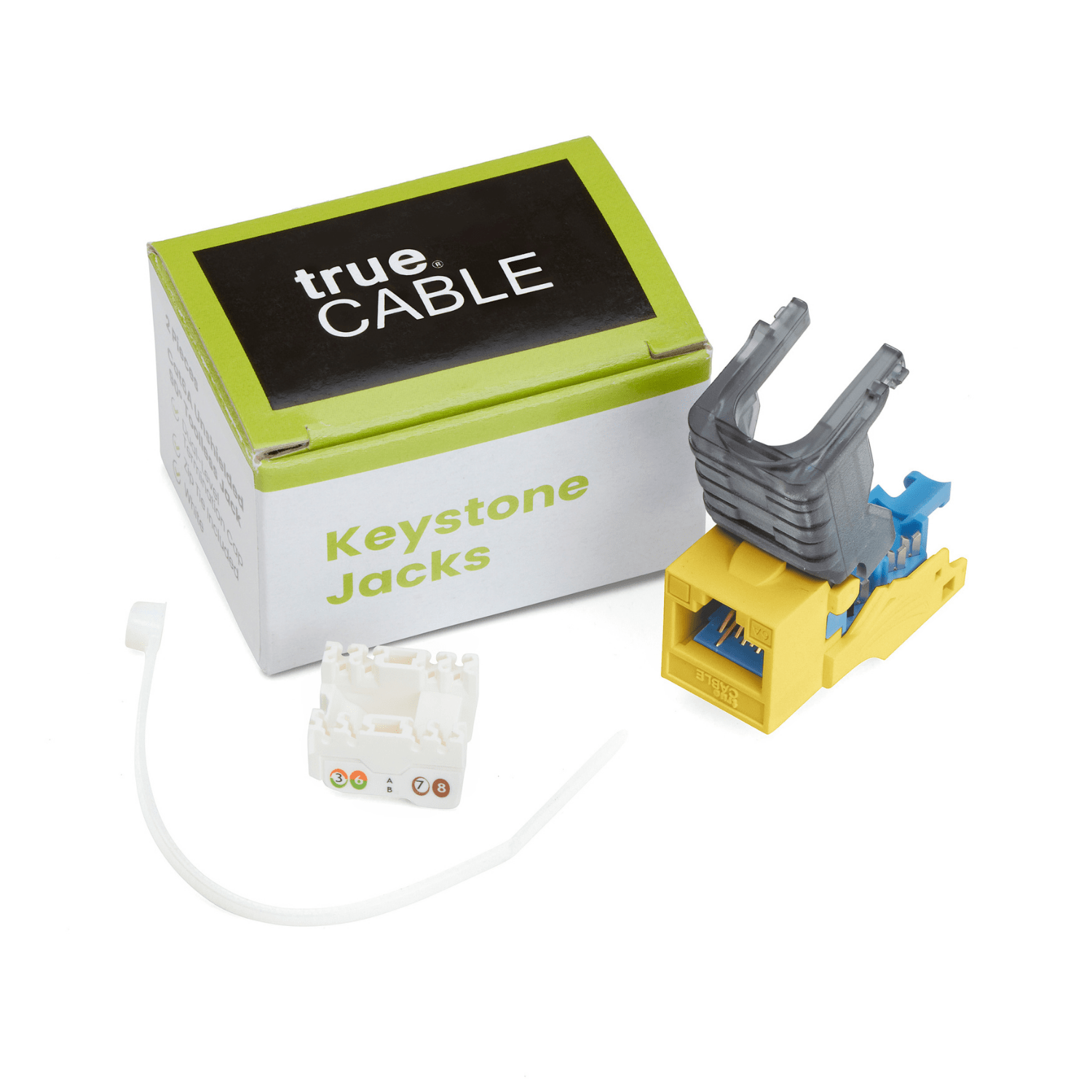

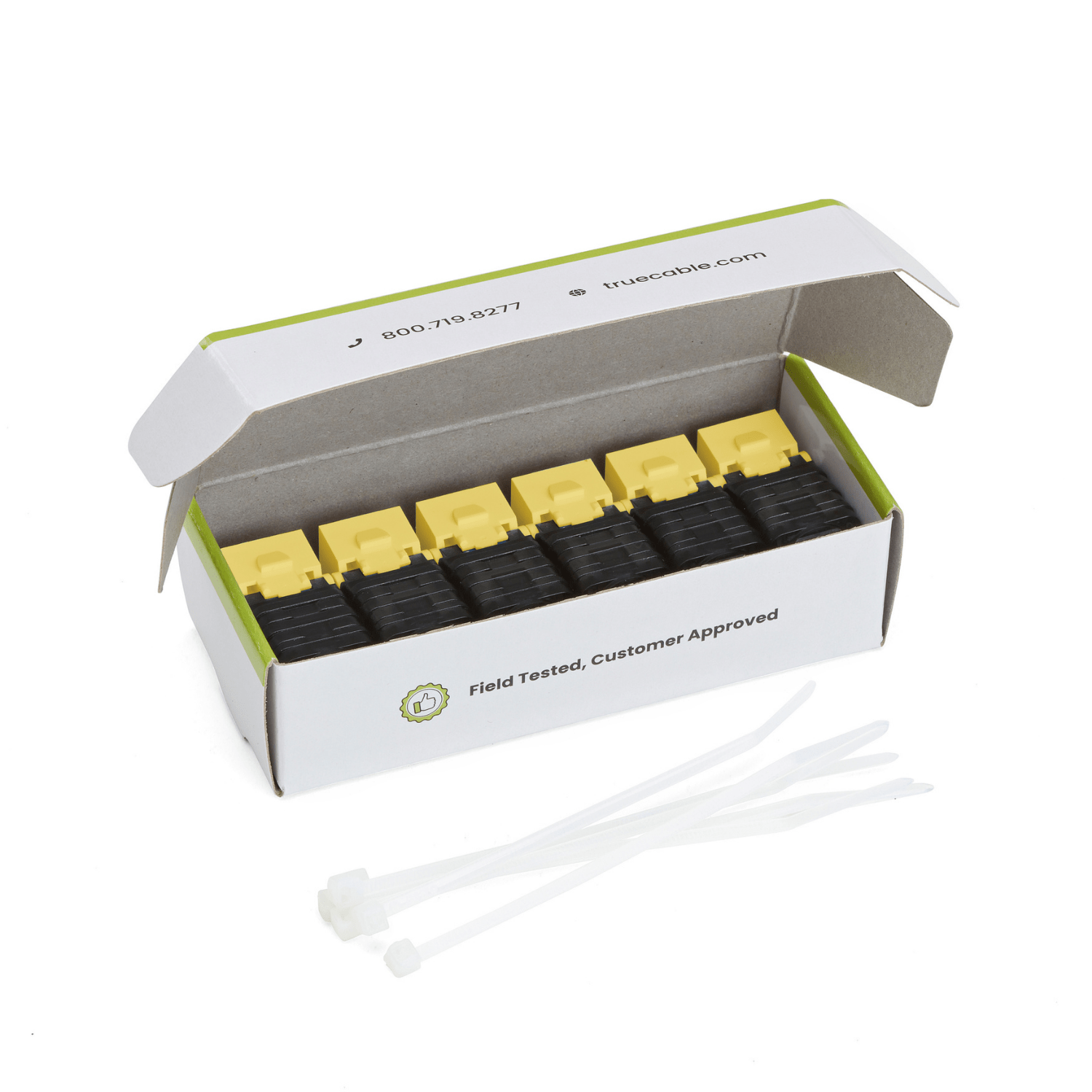

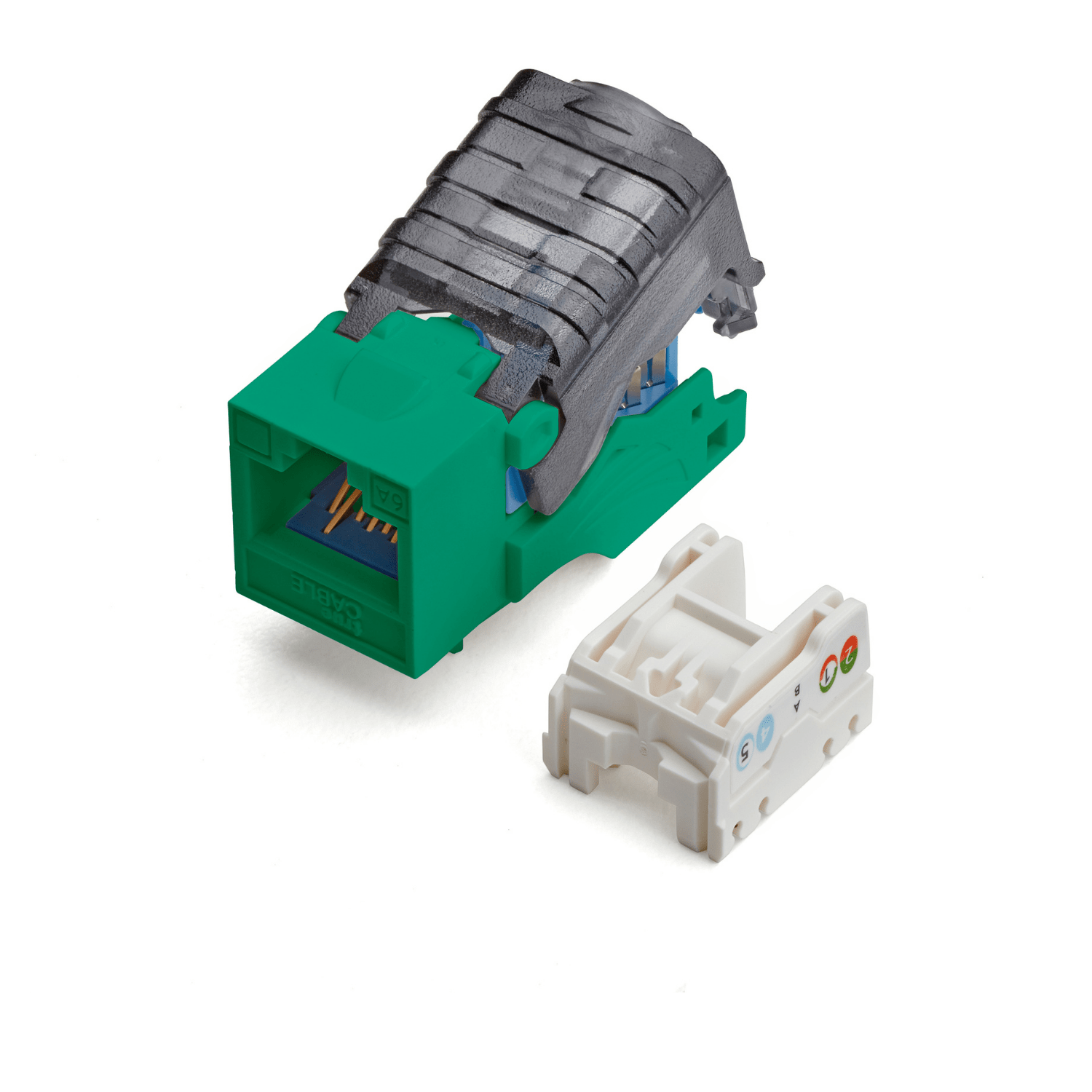

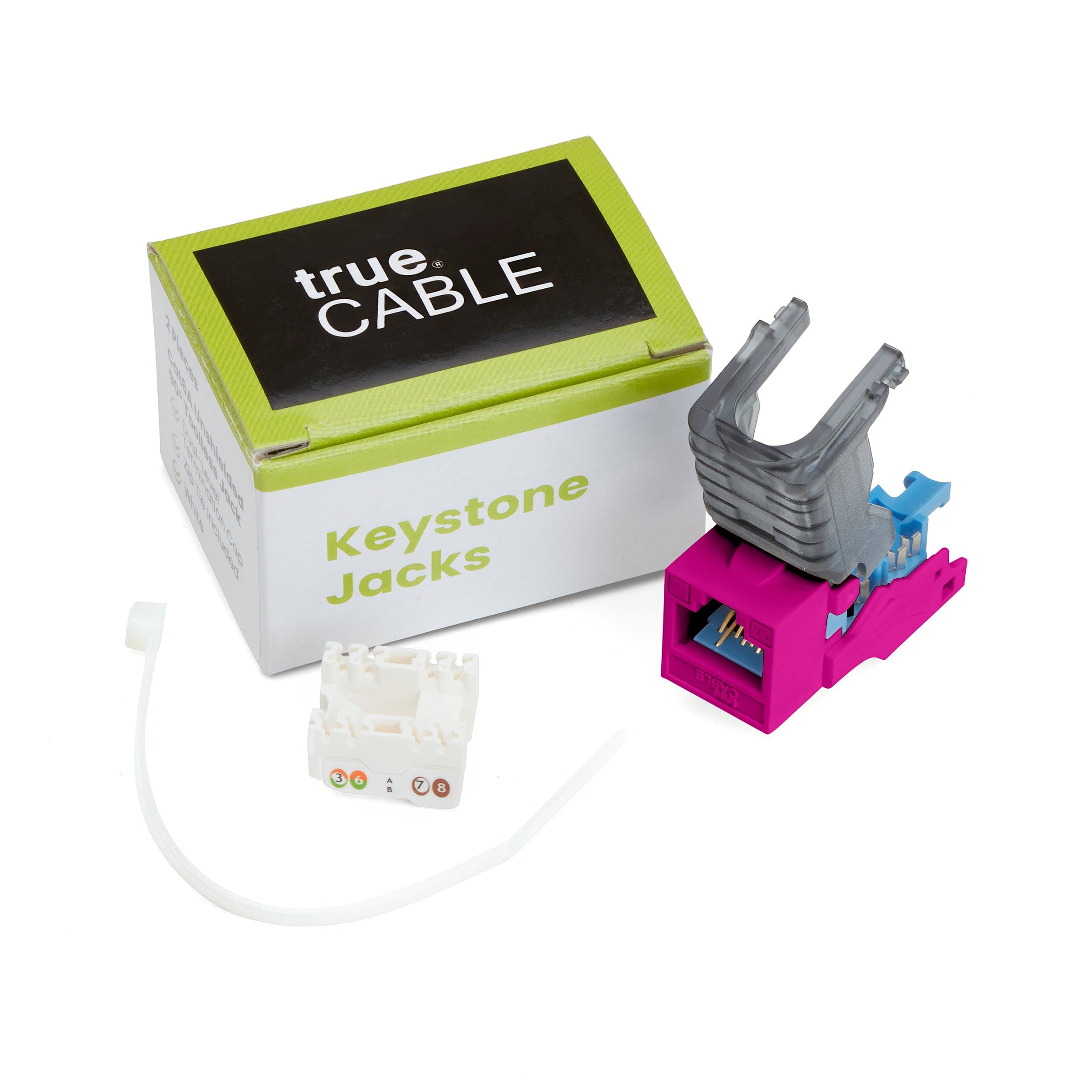

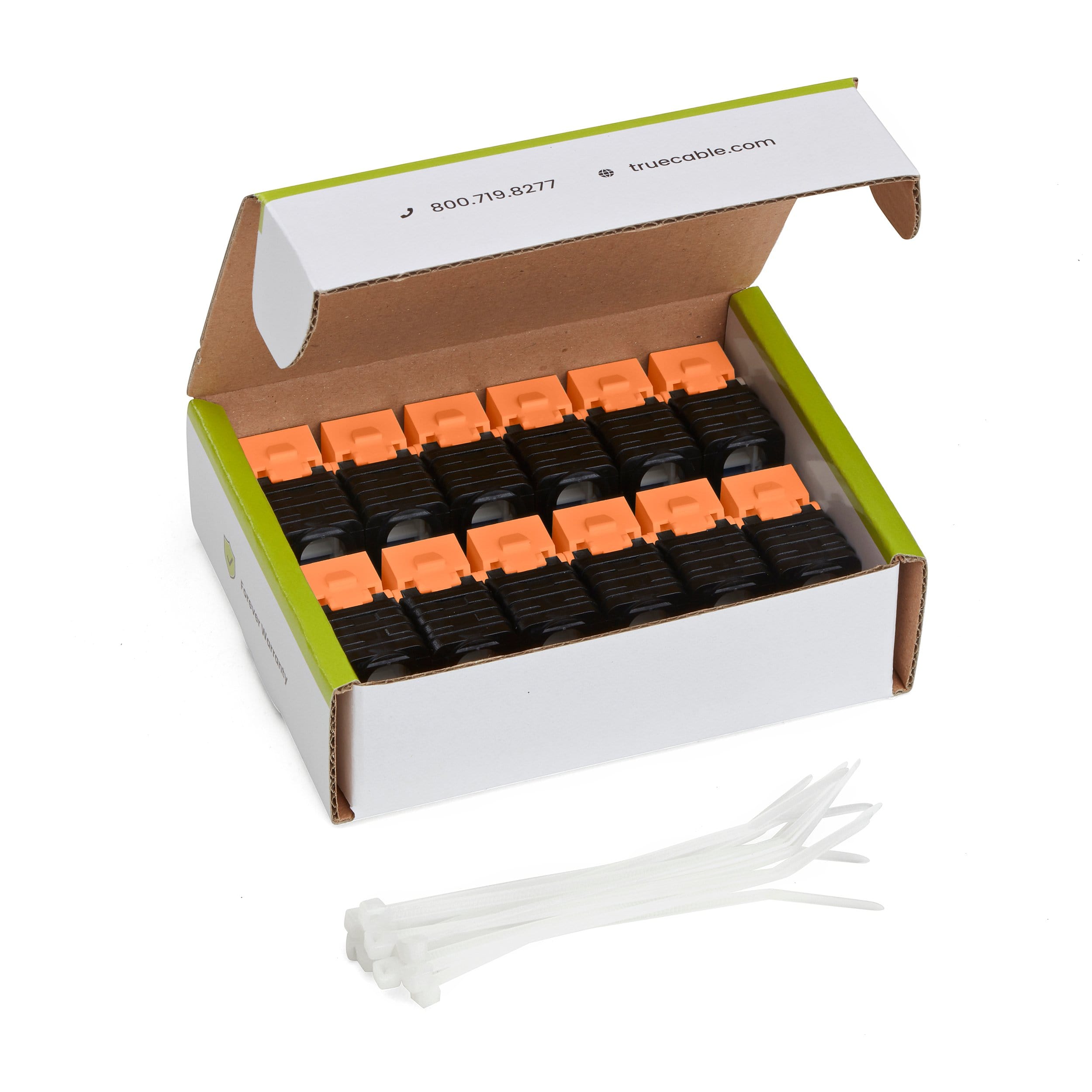

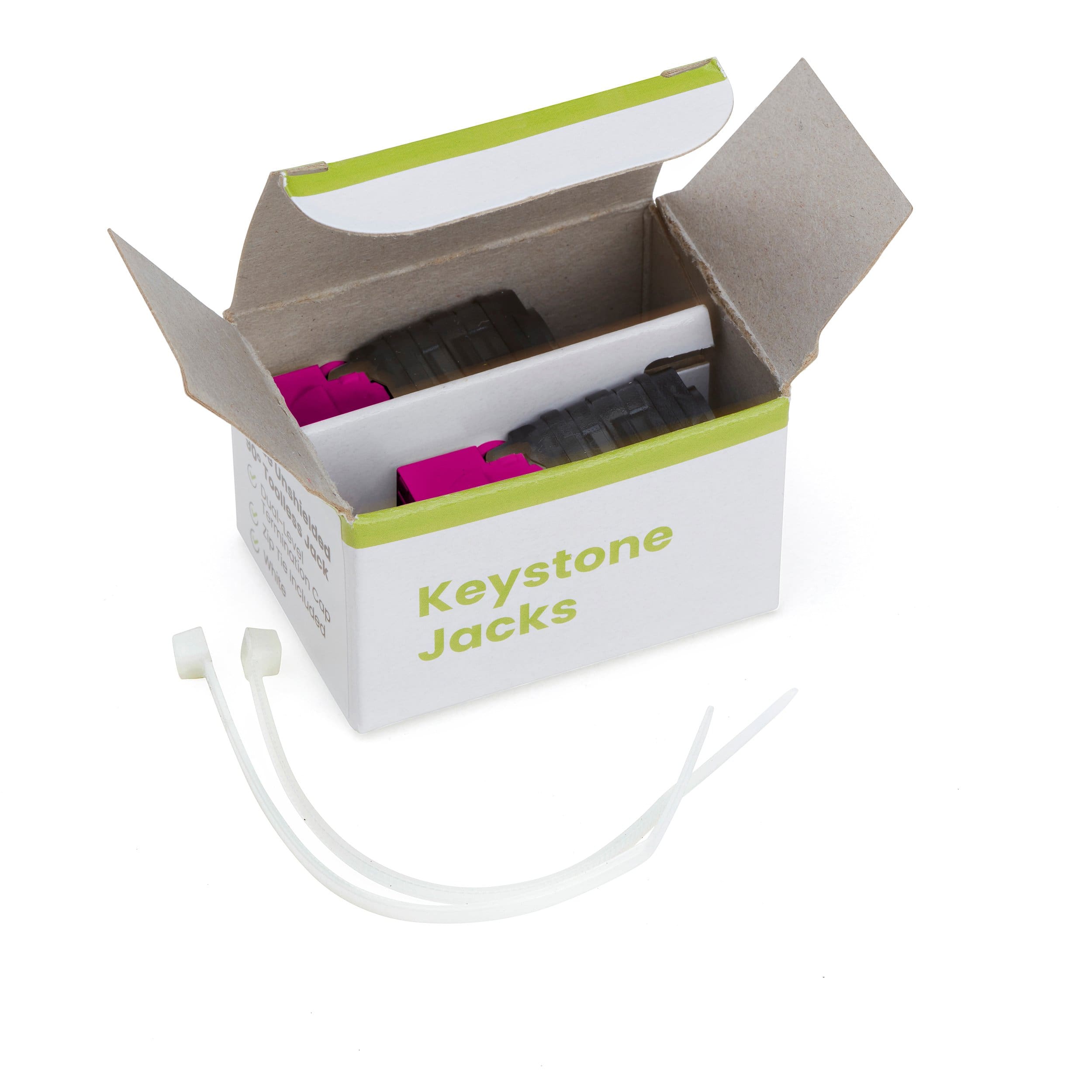

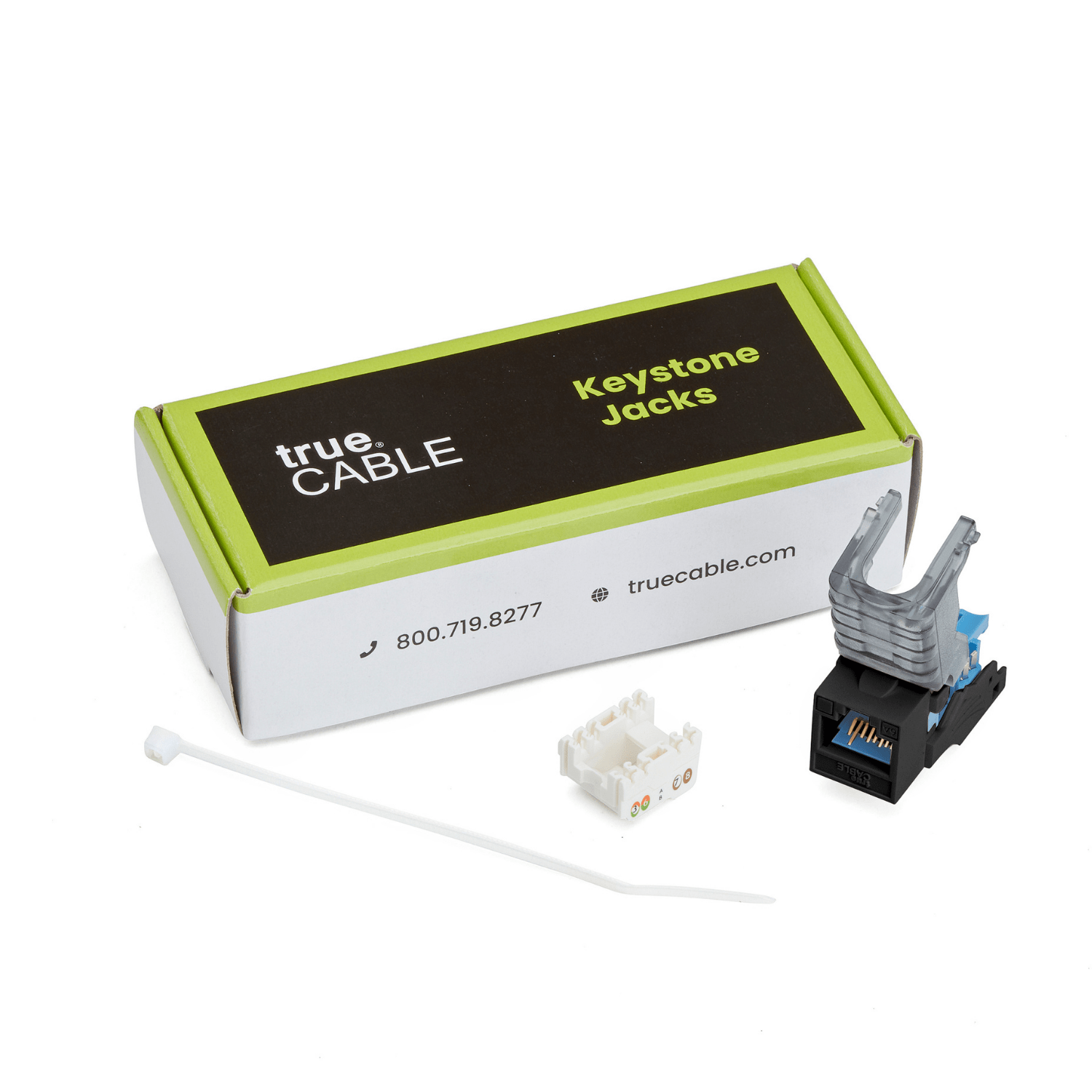

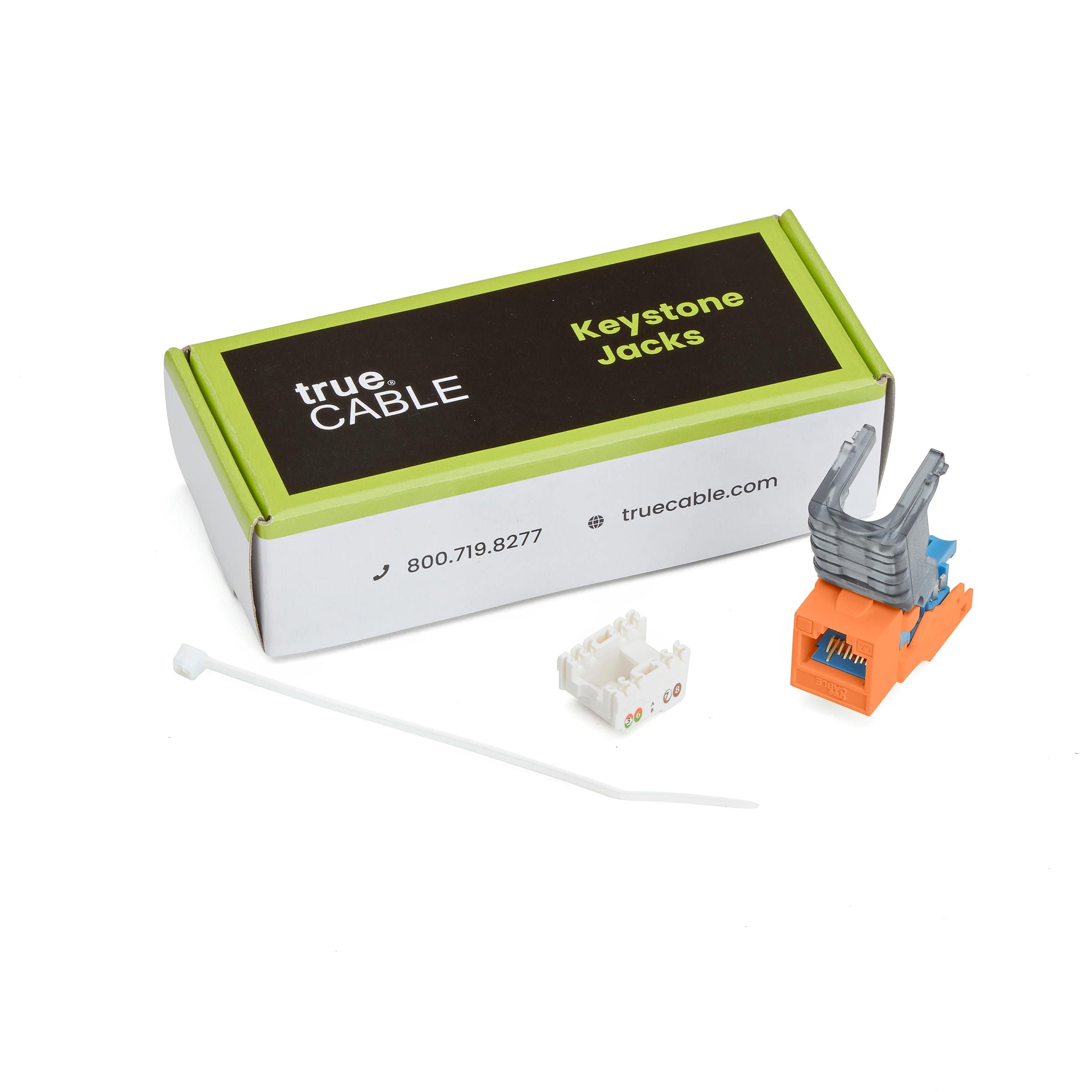

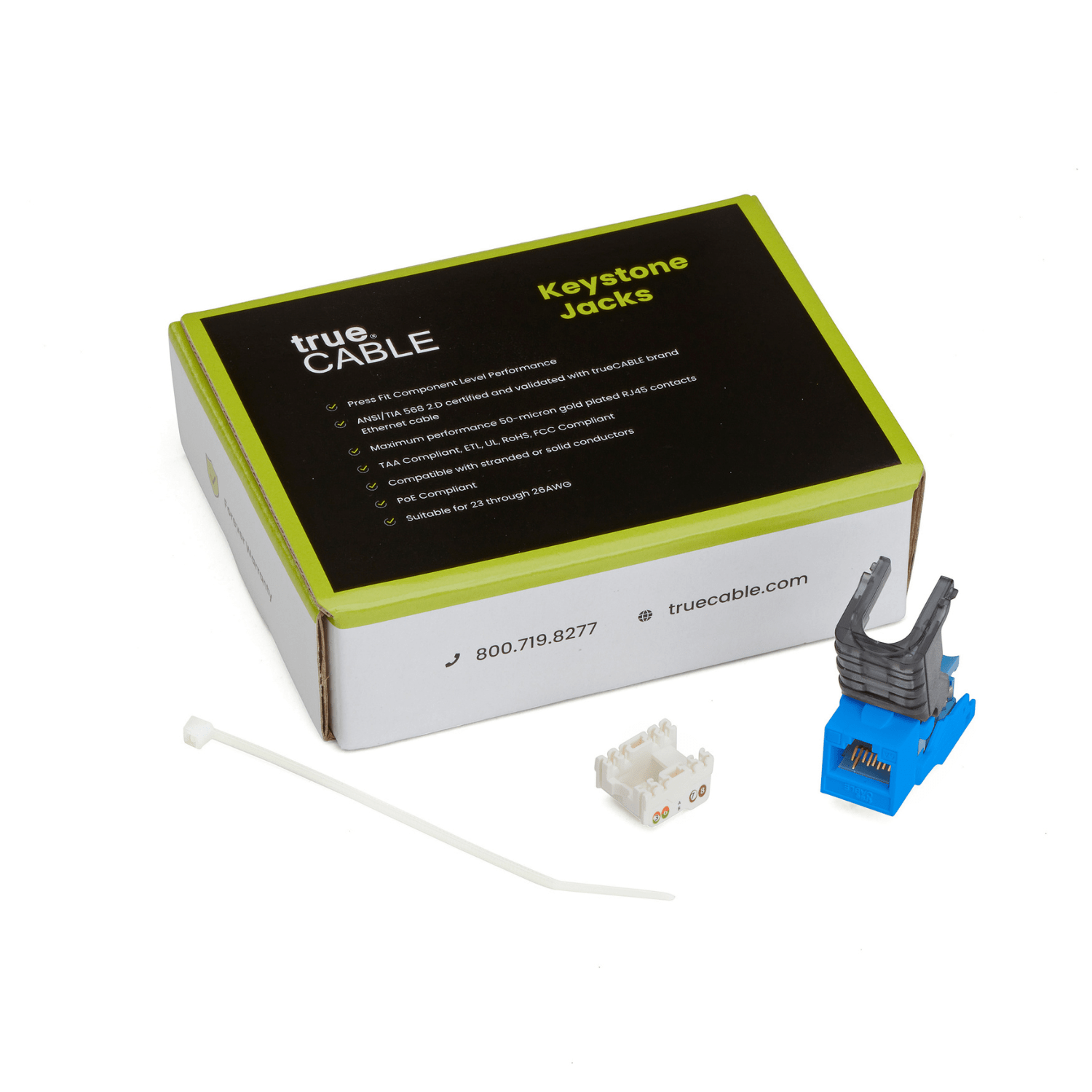

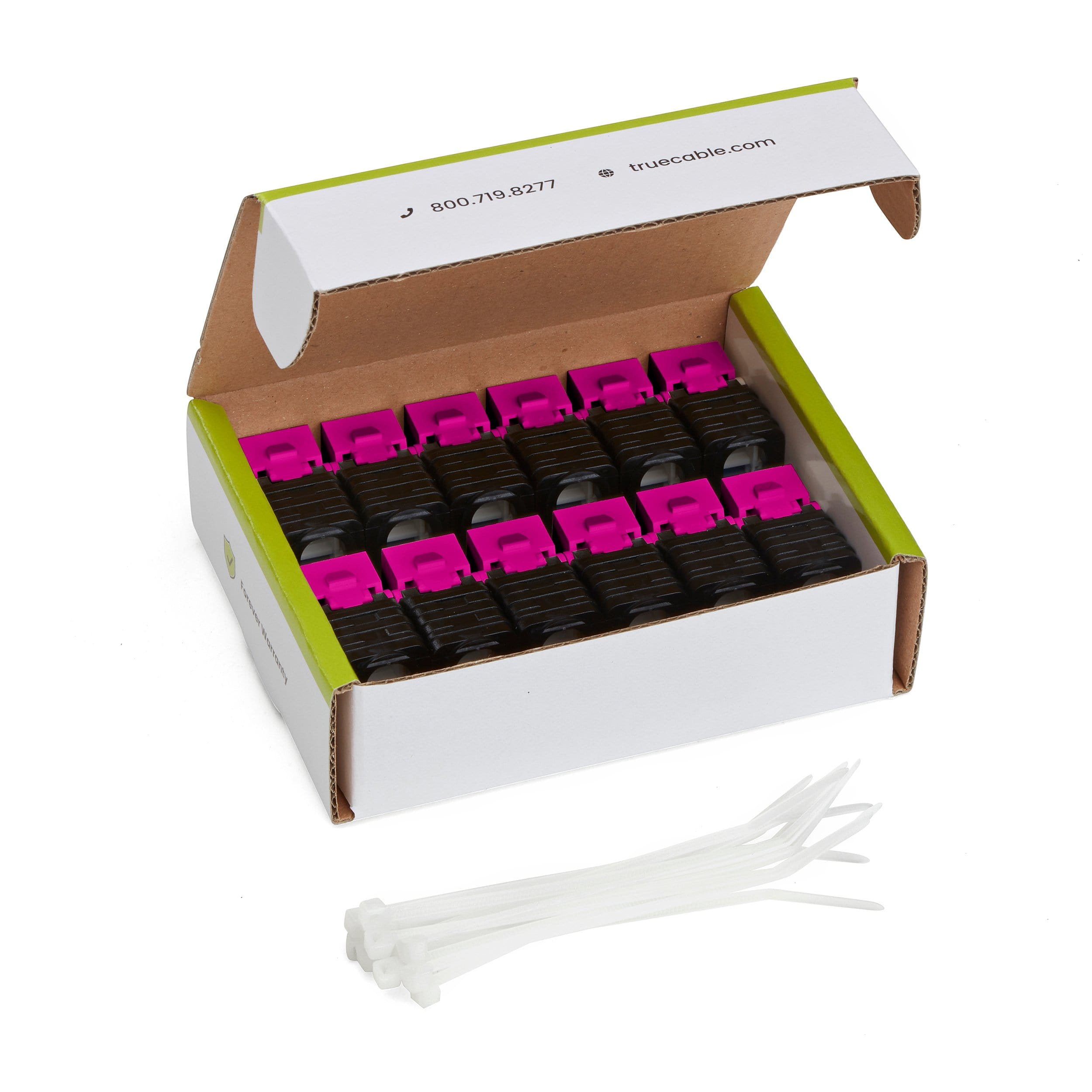

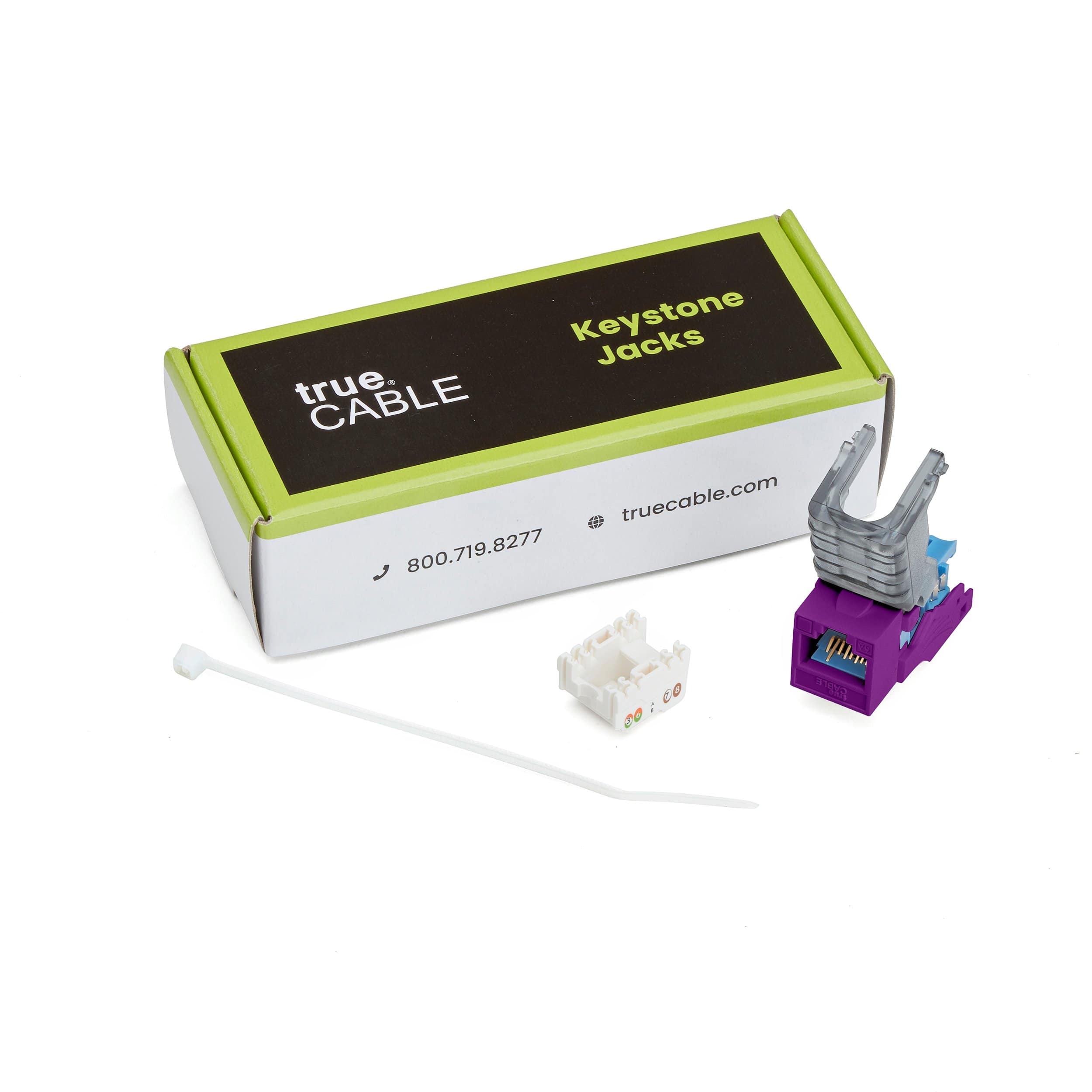

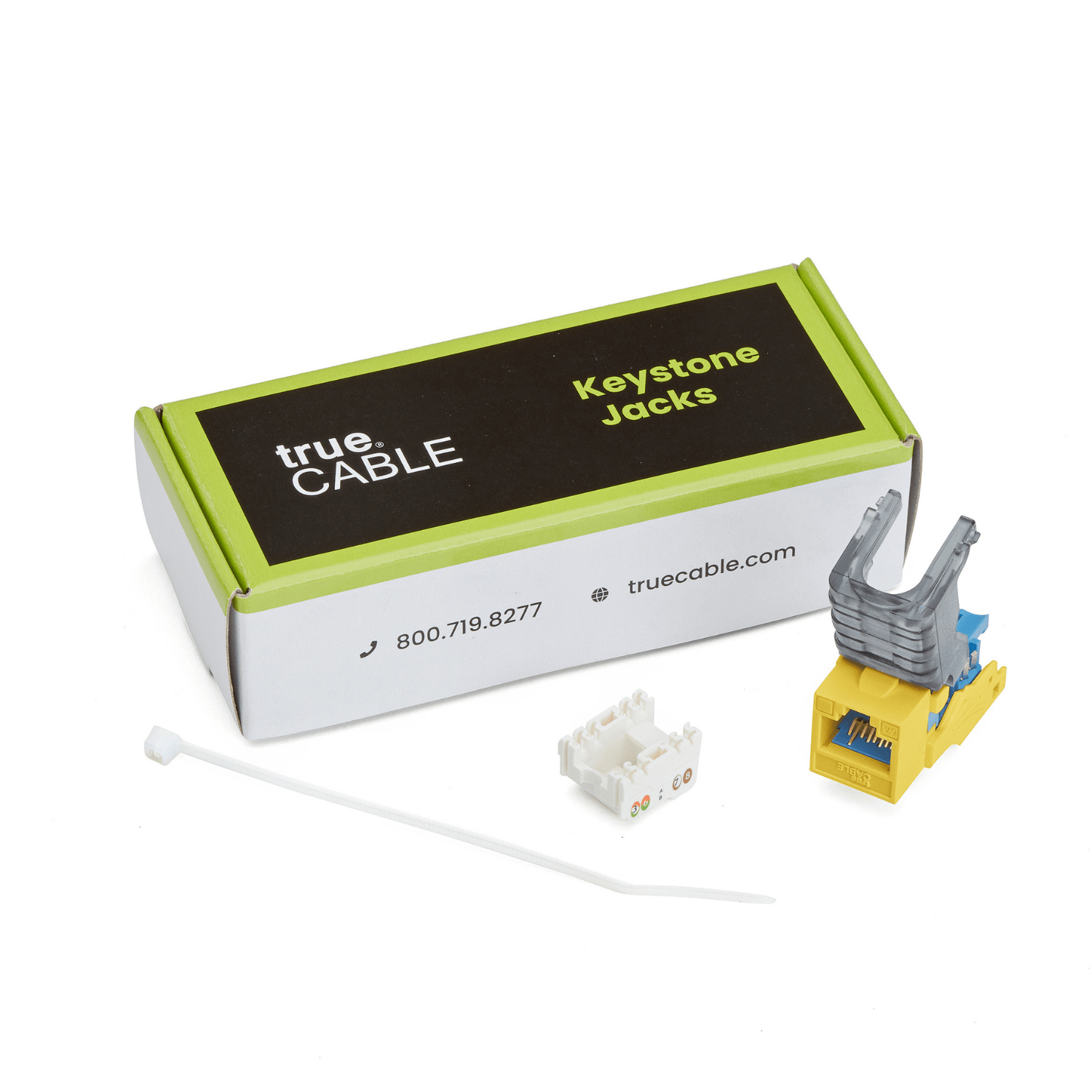

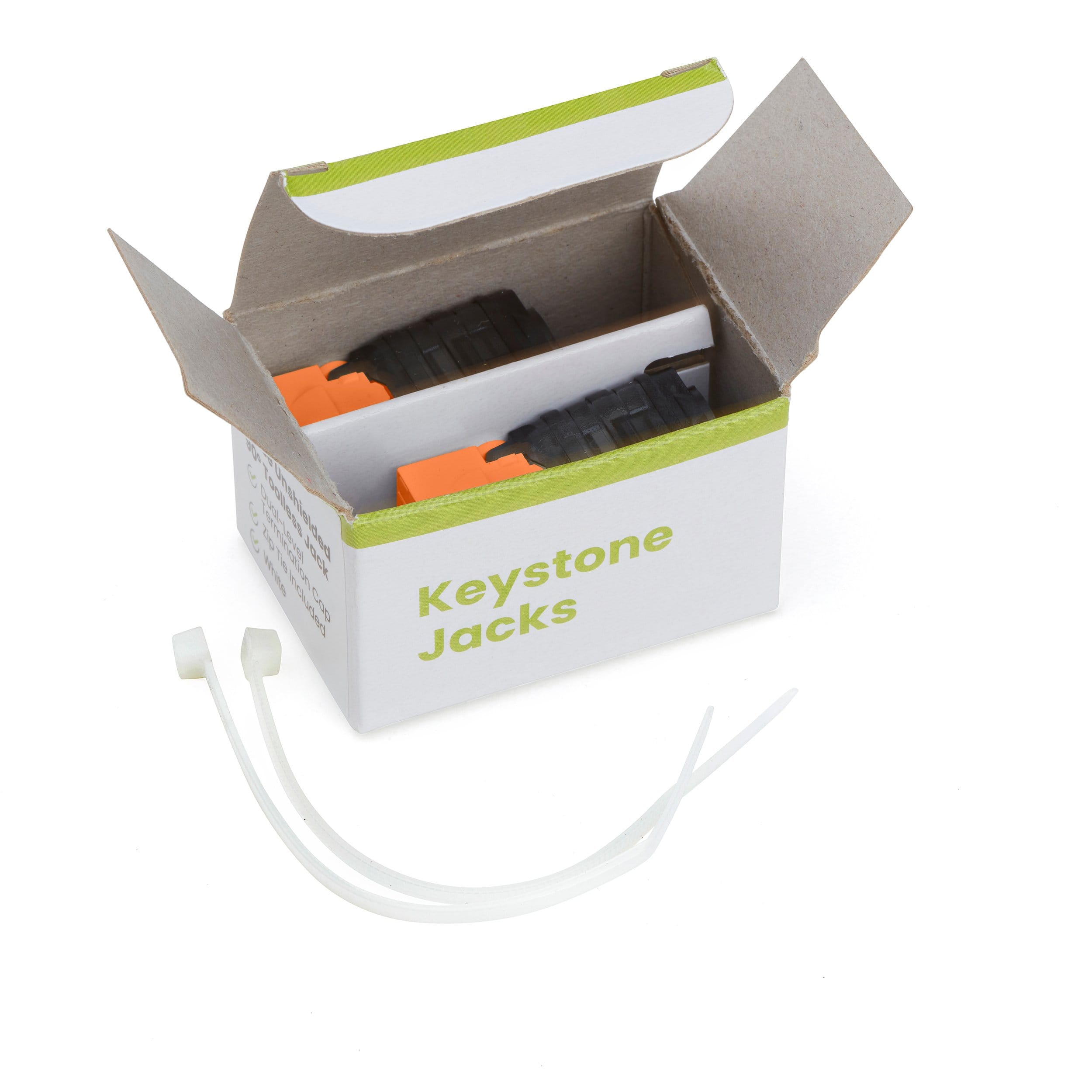

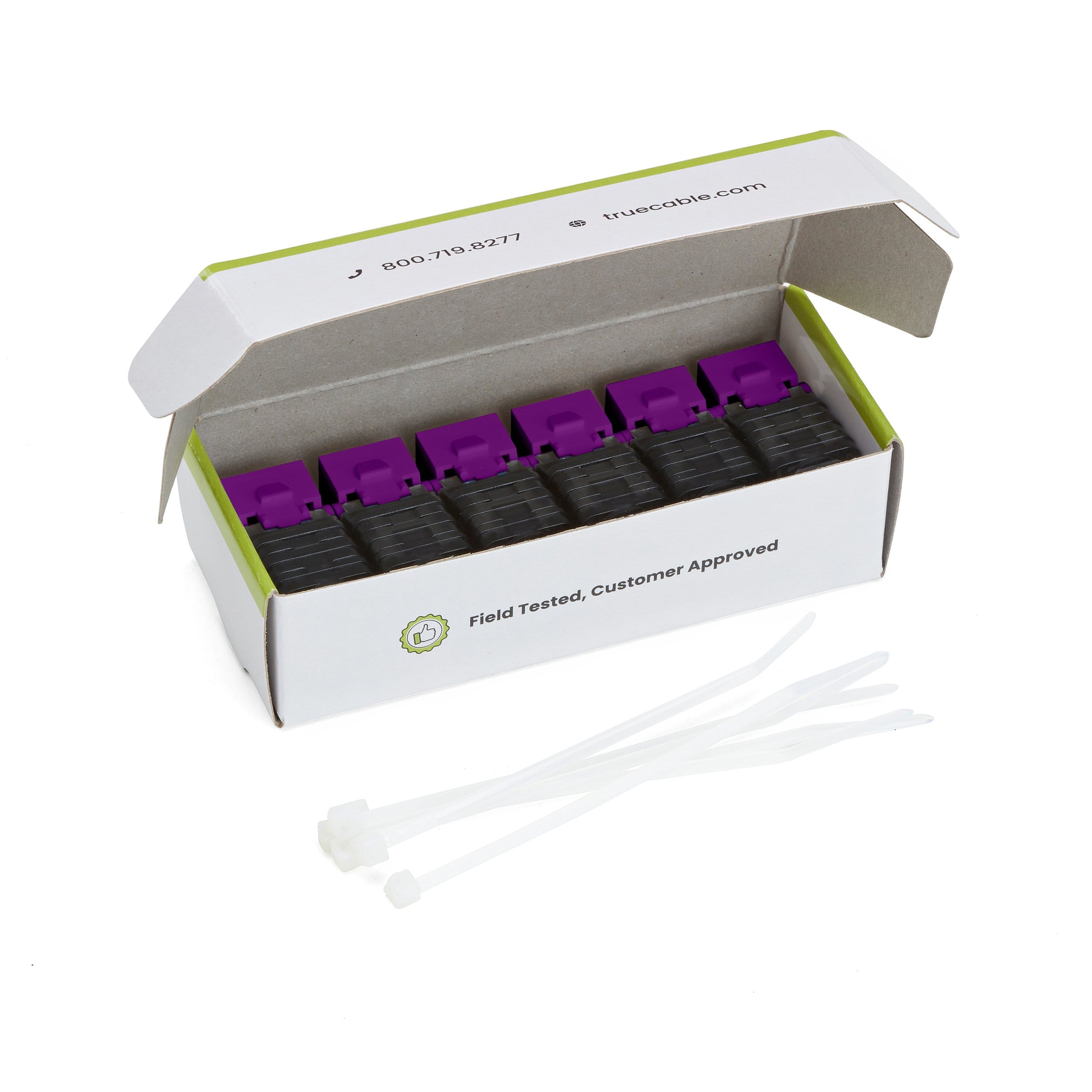

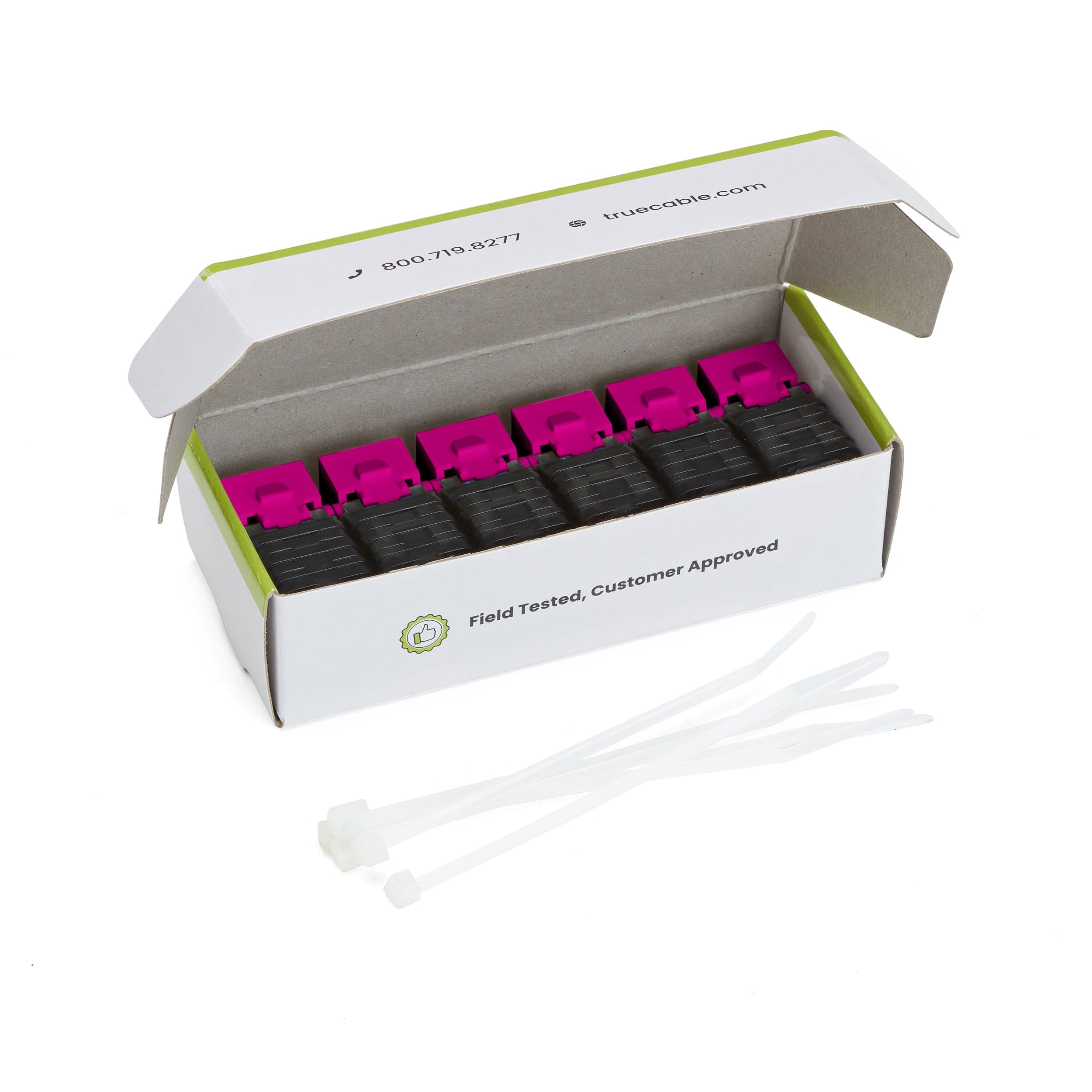

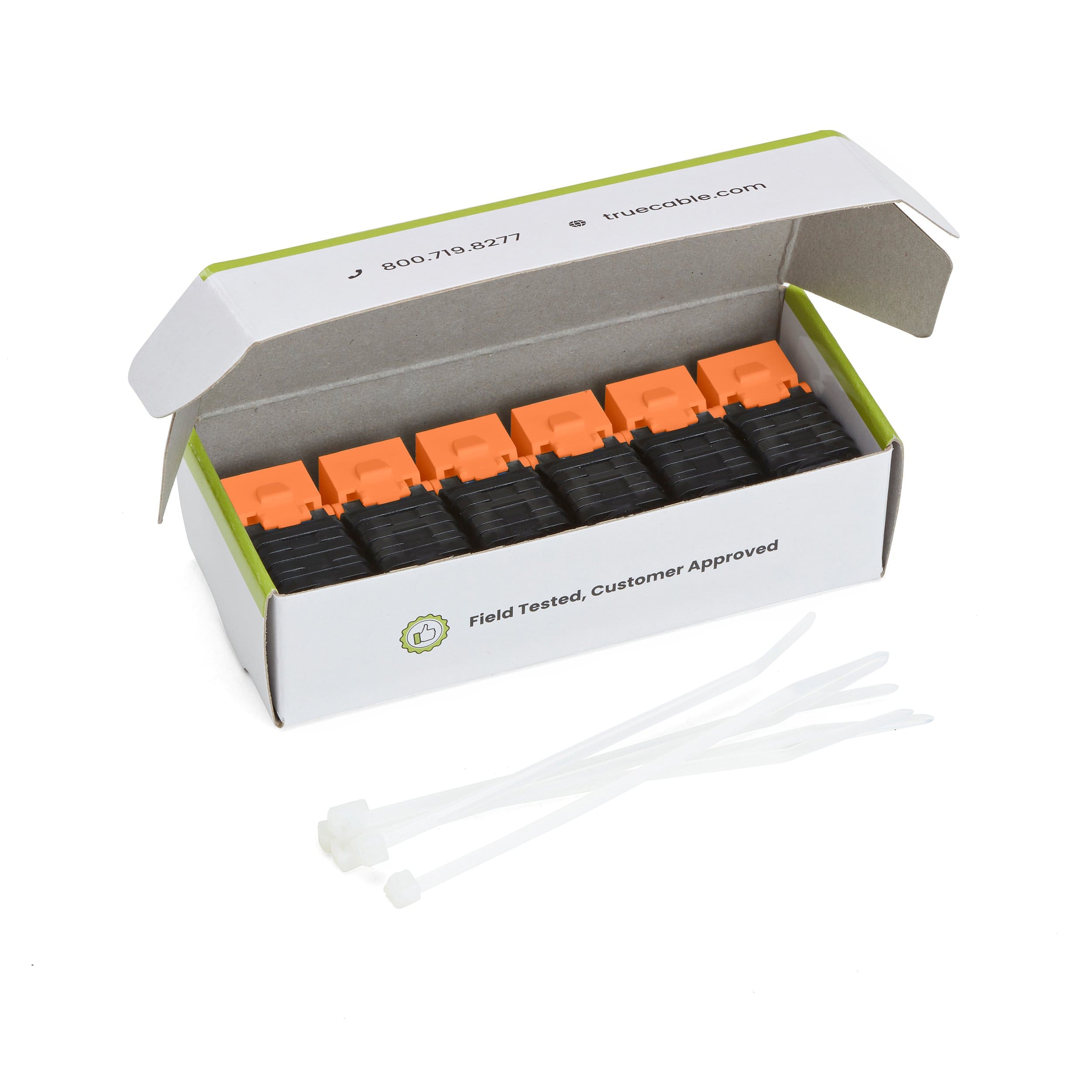

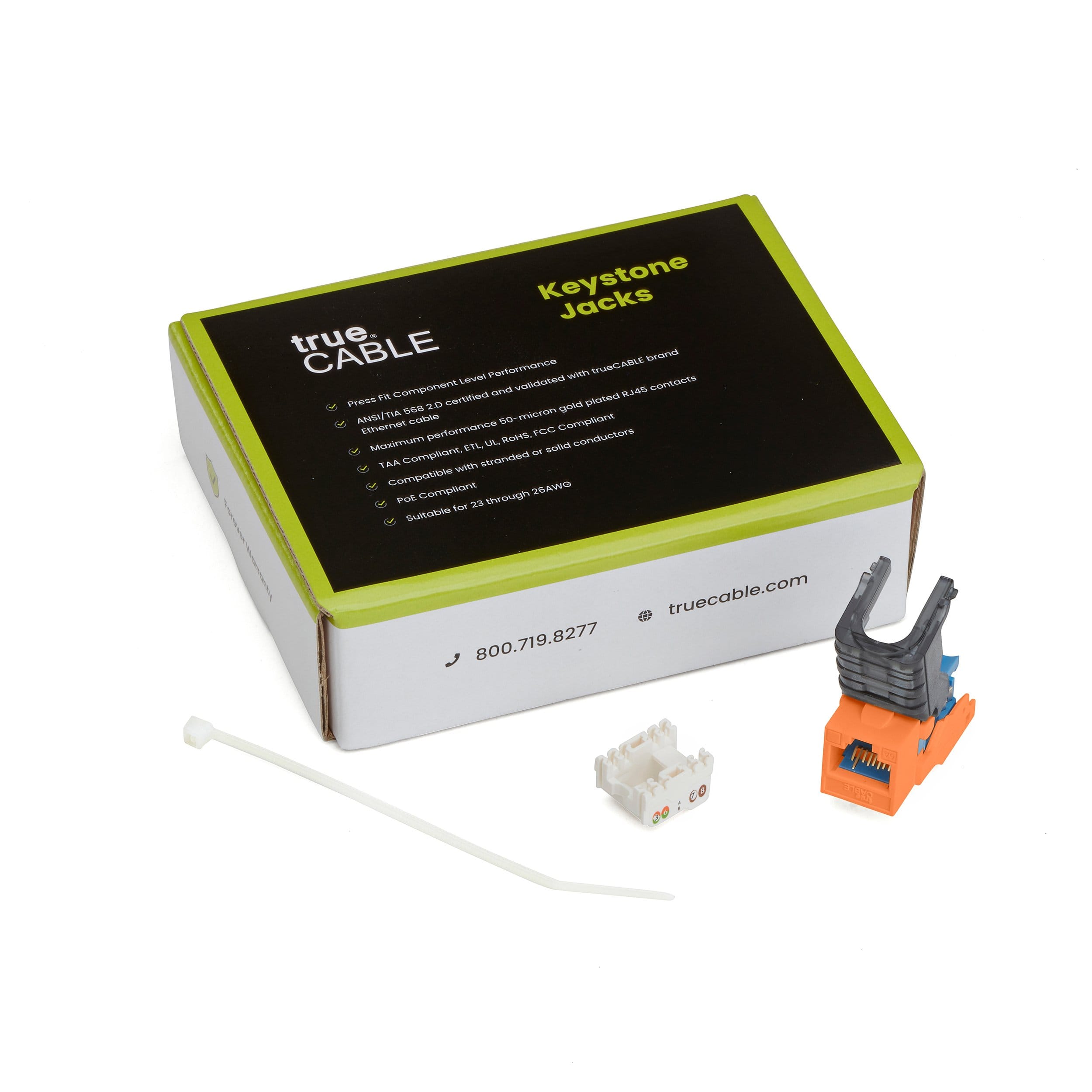

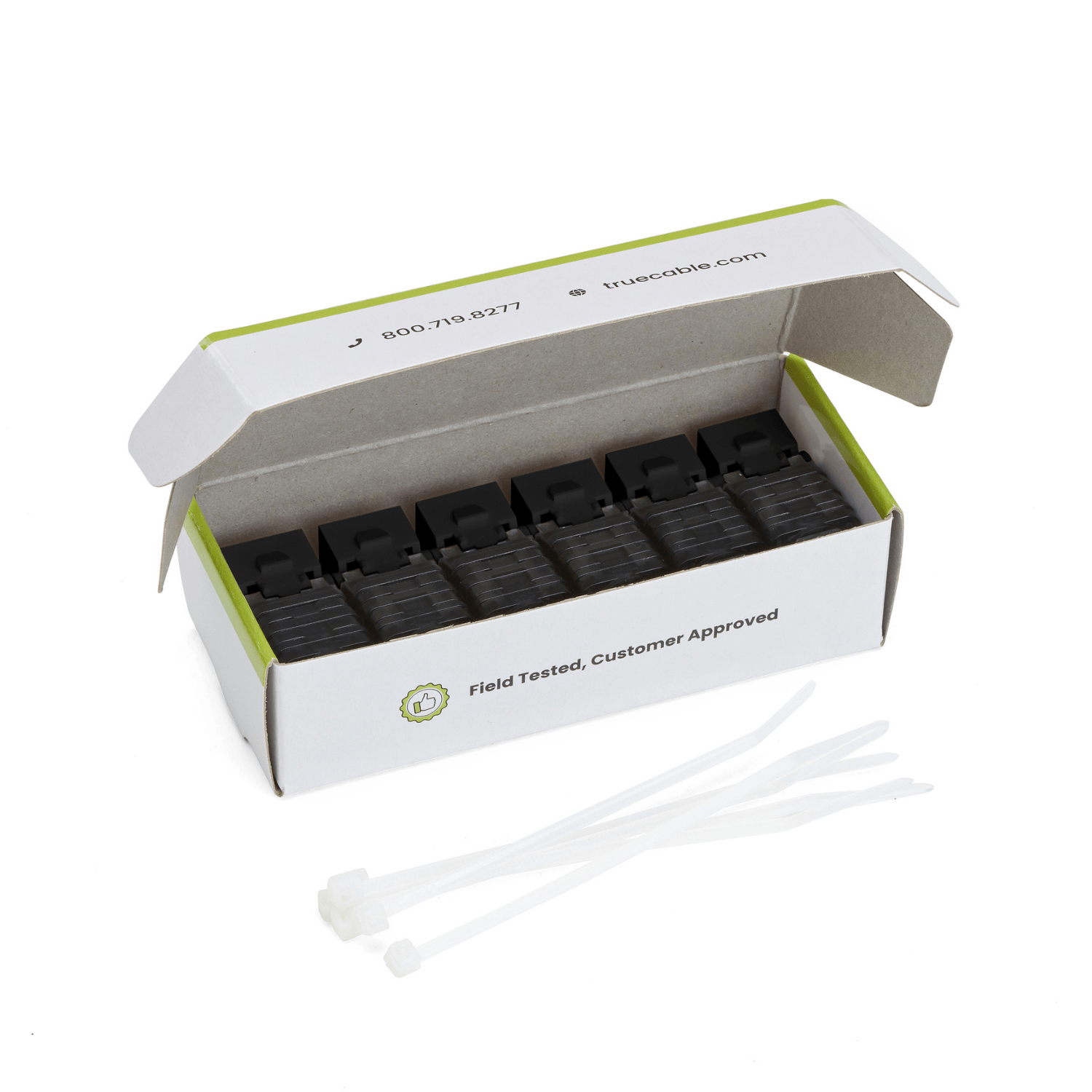

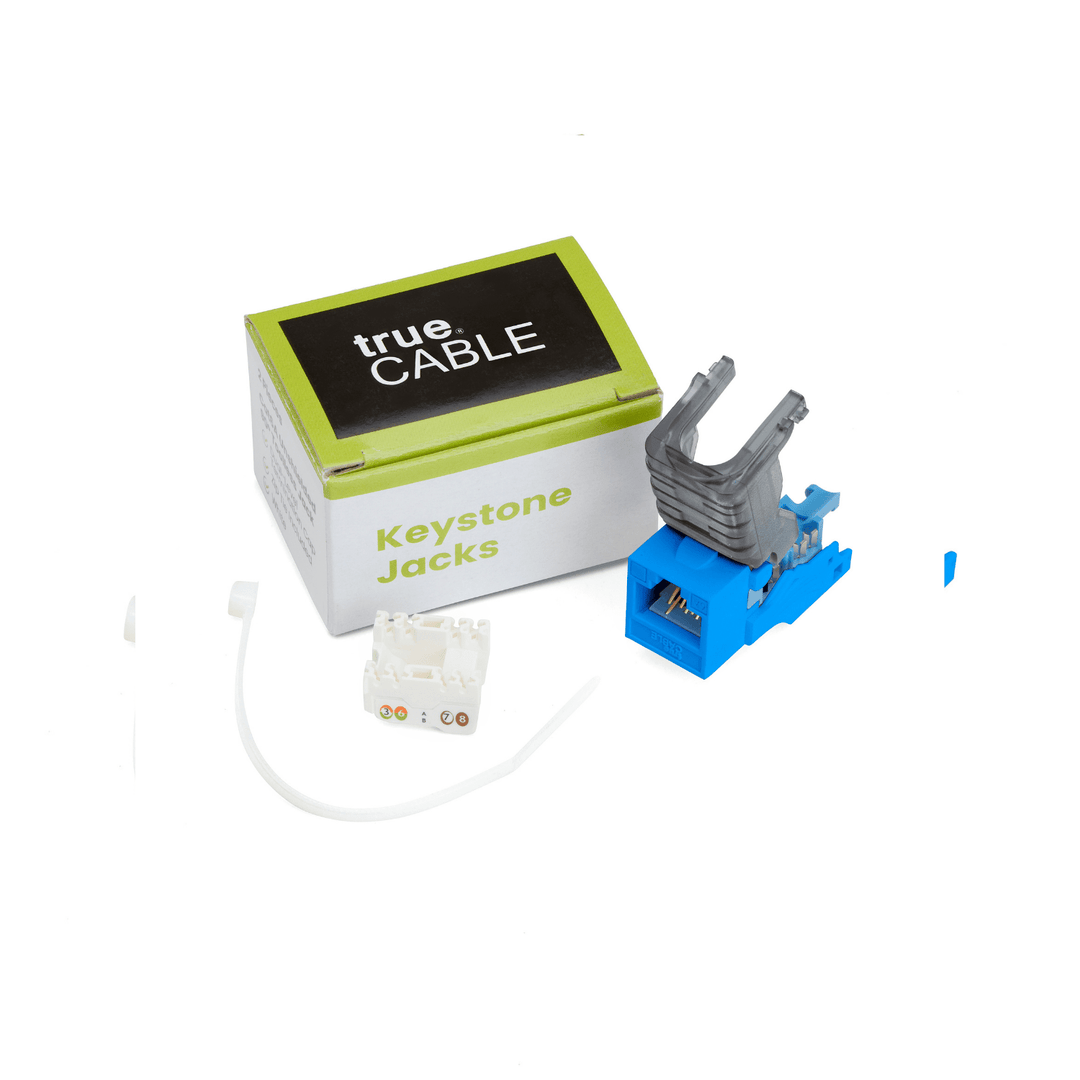

  •  Each keystone jack includes tool-less housing, conductor wiring cap, nylon tie, and full instructions on how to terminate.
Weight 0.1 lbs
Length 2 in
Width 1.5 in
Height 1.25 in
Barcode X002IVECQ3
Download Spec Sheet
 Download Instructions

Ultimate Performance

  •  trueCABLE Cat6A keystones have been tested specifically for ANEXT performance (Alien Cross Talk) in high-density 10GBASE-T deployments. One of the most critical (and often overlooked) factors in Cat6A performance is cable-to-cable interference caused by high operating frequencies. Combined with a 3-D staggered patch panel, trueCABLE Cat6A unshielded keystones meet and exceed all of the specific Cat6A performance requirements in a real-world installation!
  • Suitable for 10 Gigabit Ethernet (10/100/1000/2500/5000/10000 Mb/s) up to 295 feet. Fully backwards compatible with Cat6 and Cat5e.
  • Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W

Cat6A Toolless Keystone Jack｜Unshielded


  • IMAGE A: Proven Component Rated performance. trueCABLE keystones nearly double the NEXT headroom in a Permanent Link Certification test as compared to competing mass-produced Channel Level keystone jacks. Lower-priced commodity keystone jacks are known as “Channel Level”. Channel Level hardware is not subjected to strict Connection Hardware Test Limits during assembly and only gets Certified in the context of a field installation. trueCABLE Component Rated connection hardware is Category and ANSI/TIA 568-2.D Connection Hardware Certified twice during production. The PCB must pass testing and then the completed keystone jack must pass again. Component Rating means the connection hardware must meet strict Category NEXT, FEXT, Return Loss, Insertion Loss, TCL/TCTL, and Alien Crosstalk requirements before it makes it into the box and in your hands.

  • IMAGE B:  Impedance matching technology provides advanced electromagnetic balancing to allow for mixed conductor gauges and types while maintaining maximum performance for the entire channel. A great example of how this feature translates into real-world benefits is when mixing cables from different manufacturers.
  • IMAGE C: Data Center Ready. No more worrying about short point-to-point links in the data center failing Certification! Permanent Links as short as 1 meter will pass Certification.

Durable

  • Tuned RJ45 port spring wire design helps prevent PoE spark arc pitting damage

  • caused by connecting and disconnecting live PoE circuits--even at 100W PoE++
  • Tough ABS plastic construction
  • Press-Fit Technology makes our product more reliable and increases transmission performance
  • Corrosion-resistant nickel and tin-coated phosphor bronze termination prongs and gold-plated RJ45 contacts

Versatile

  • Compatible with 23 to 24 AWG solid copper conductors and ∅0.86 - 1.20mm insulated conductors.

  • 90 degree tool-less design with conductor wiring cap
  • T568A and T568B wiring code printed on side of conductor wiring cap
  • For use with unshielded (U/UTP) Ethernet cables
  • 100% compatible with any standard wall plate or patch panel
  • 110 impact tool not required. Our trueCLOSE tool is recommended for closure of tool-less mechanism when working with thick insulated conductors

Quality Guaranteed

What's In The Box?

  •  Each keystone jack includes tool-less housing, conductor wiring cap, nylon tie, and full instructions on how to terminate.
  • Weight - 0.1 lbs
  • Length - 2 in
  • Width - 1.5 in
  • Height - 1.25 in
  • Barcode - X002IVECQ3
 Download Spec Sheet
