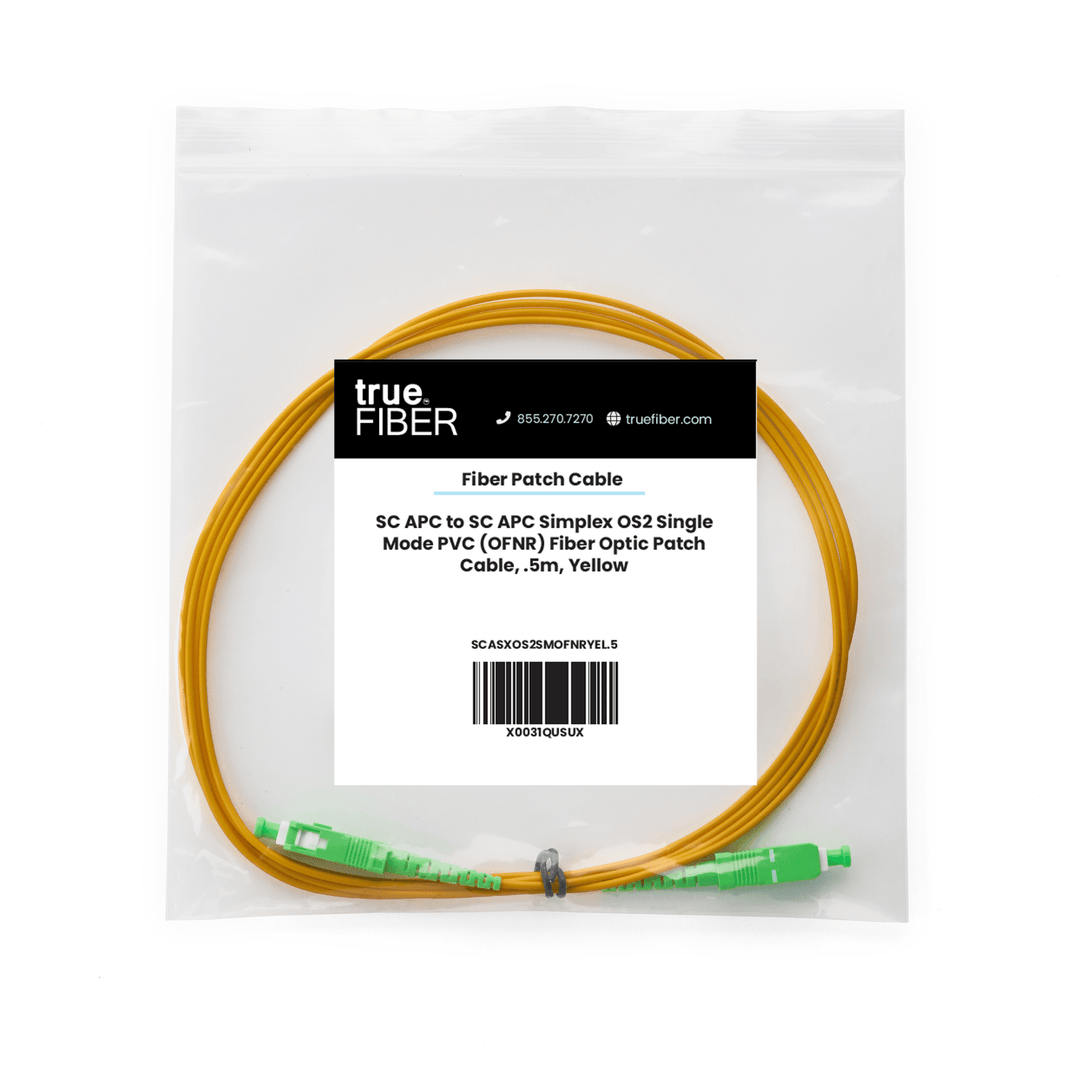

SC to SC APC Simplex OS2 | SM OFNR

Part Number - SCASOS2YEL_.5m

Features

  • Ability to carry data from 10km to 40km at 10GB - 200GB speeds
  • G652.D compliant bend insensitive aramid yarn
  • 2.50mm superior grade SC zirconia ceramic ferrules
  • Ultra low loss Corning® glass ultra optical fiber
  • UL Listed, IEC Certified, ANSI/TIA 568.3-E Compliant IEC 61300-3-35
  • Quality Tested with a Fluke Versiv™ CableAnalyzer

Bulk Save with trueCABLE
Qty Price Per Item Your Savings
10-24 $5.94 2.5%
25-49 $5.79 5%
50+ $5.63 7.5%
download Download Spec Sheet
$6.09 6.09
-Liquid error (sections/product-template line 309): Computation results in '-Infinity'%
Length
Size
Quantity
Qty:
Saves you 2.5%
Add 9 more for 2.5% discount
+1 +5 +10

Why buy direct from trueCABLE?

30 day returns

We stand by our products with our Forever Warranty

Same-day free shipping on orders placed Mon-Fri by 3pm Central.

Estimate Your Delivery Day

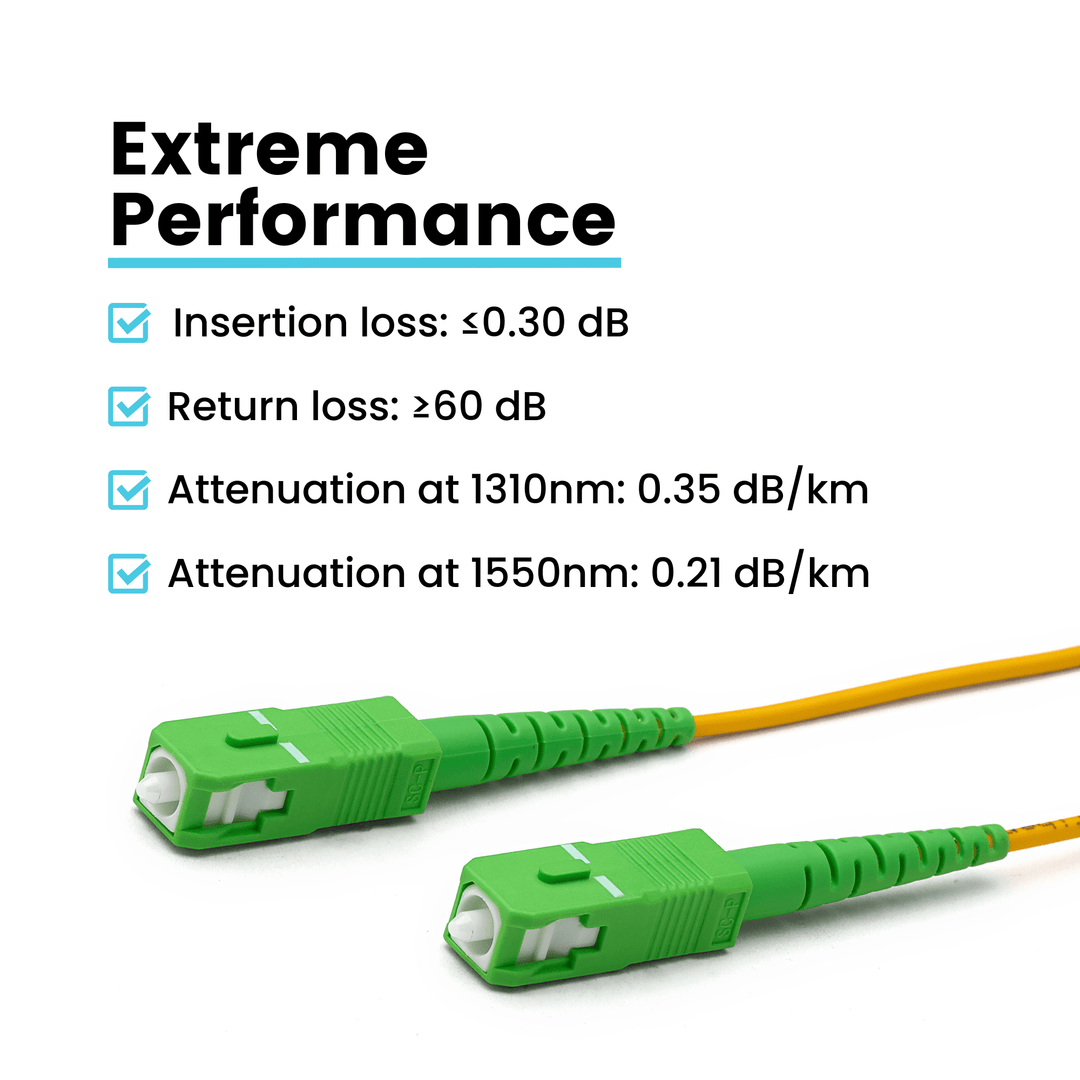

EXTREME PERFORMANCE
  • G652.D compliant bend insensitive SMF 1310/1550nm operating wavelength for up to 1GB/10GB/40GB/100GB or higher speeds with various lengths depending on the transceiver type.
  • APC or "Angled Physical Contact" polish on the fiber optic connector ends.

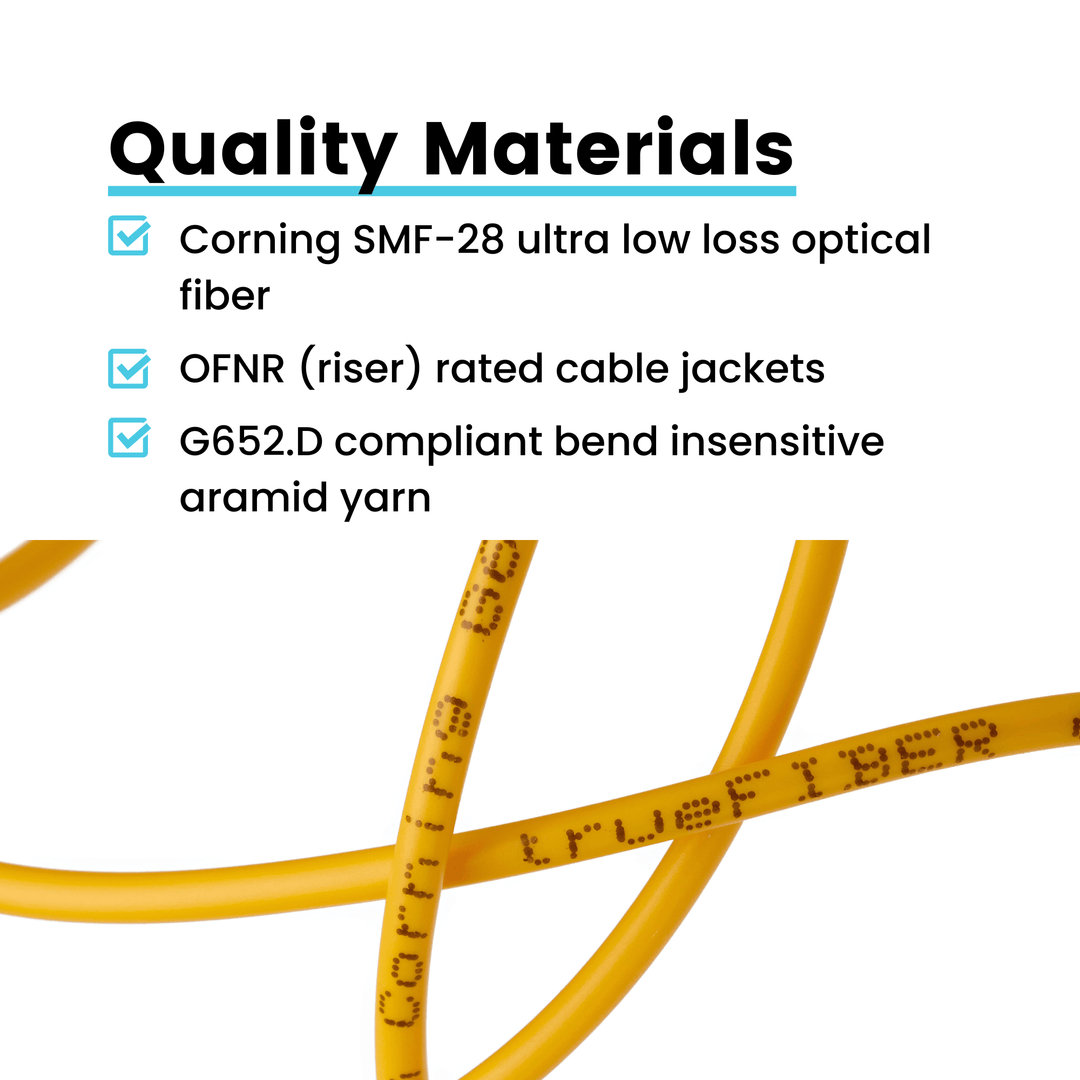

  • Corning® ultra low loss glass, ultra optical fiber core and cladding.
  • Fiber to the Home (FTTH), Data Center & Internet Service Provider applications.
  • Quality Tested with a Fluke Versiv™ CableAnalyzer.

BEND INSENSITIVE

  • G652.D compliant bend insensitive aramid yarn encased tight buffer cable construction singlemode OS2 cable has a 10.00mm minimum bend radius for tight enclosures and sharp turns.
  • 2.0mm OD (overall diameter) cable jacket supports high density applications.



    HIGH QUALITY LC CERAMIC FERRULES
    • 2.50mm superior grade SC zirconia ceramic ferrules ensure precision alignment and very low optical loss with an 8 degree APC endface

    FOR USE INDOORS

    • OFNR (Riser) rated cable jackets will not promote the spread of flame. Suitable for use in non plenum interior spaces. When it comes to Fiber To The Home Networks, nobody does it better than our SC APC fiber optic cable. You may use it with a variety of FTTH networks and devices, including Verizon Fios, ATT internet cable, Google Fiber, Century Link, and more. Cost-effective Do-It-Yourself singlemode SC APC replacements can save you $100 or more compared to professional installations.

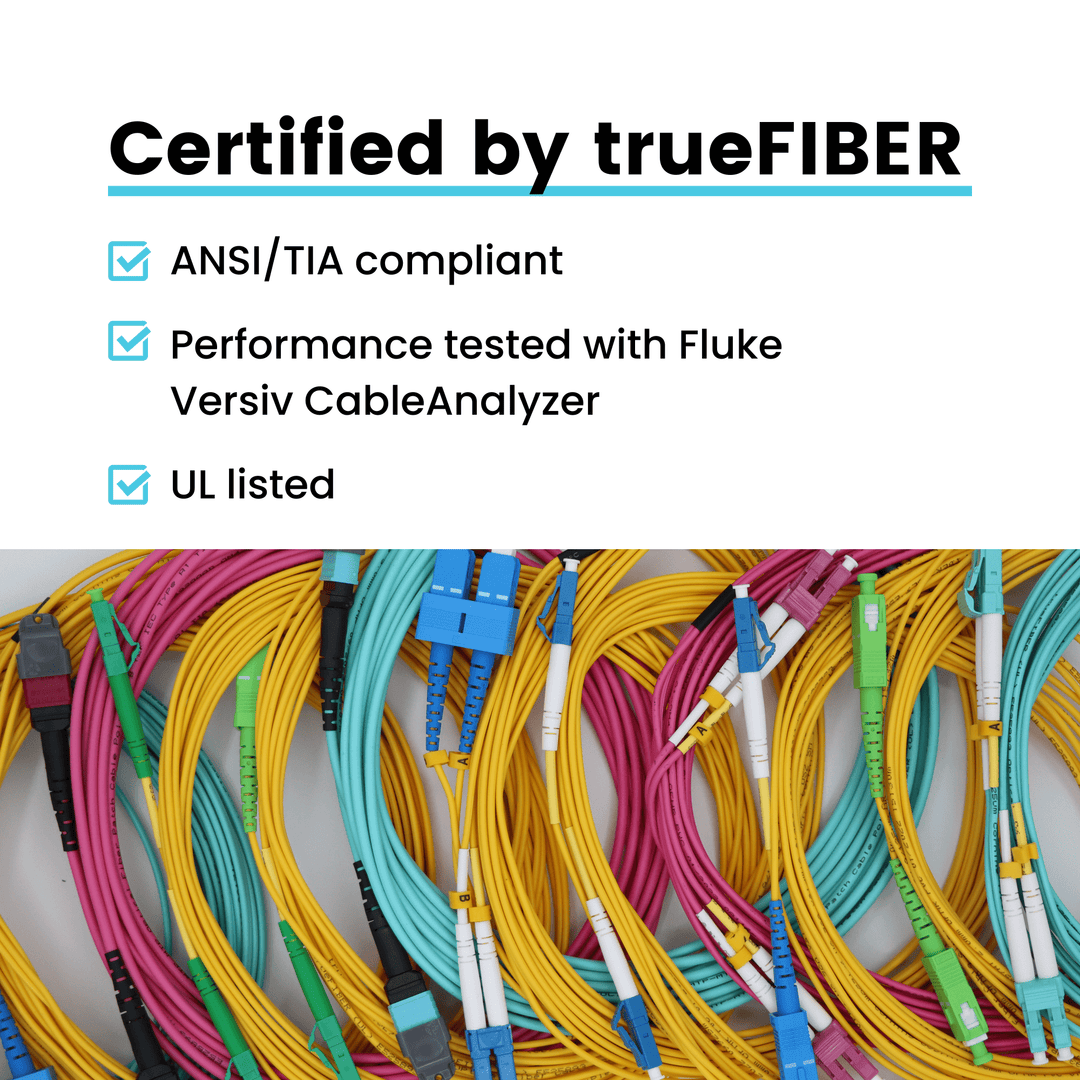

    ✓ CERTIFIED by trueCABLE
      • Our fiber optic cables have been performance tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.3-E standards. Further, our single mode fiber patch cables have been end face Certified to IEC 61300-3-35 ED.2 SM. UL Listed. Backed by our FOREVER WARRANTY.

    Weight 0.0 lbs
    Length 9 in
    Width 7.5 in
    Height 0.5 in
    Barcode X0031QUSUX
    Download Spec Sheet
    EXTREME PERFORMANCE
    • G652.D compliant bend insensitive SMF 1310/1550nm operating wavelength for up to 1GB/10GB/40GB/100GB or higher speeds with various lengths depending on the transceiver type.
    • APC or "Angled Physical Contact" polish on the fiber optic connector ends.
    • Corning® ultra low loss glass, ultra optical fiber core and cladding.
    • Fiber to the Home (FTTH), Data Center & Internet Service Provider applications.
    • Quality Tested with a Fluke Versiv™ CableAnalyzer.

    BEND INSENSITIVE

    • G652.D compliant bend insensitive aramid yarn encased tight buffer cable construction singlemode OS2 cable has a 10.00mm minimum bend radius for tight enclosures and sharp turns.
    • 2.0mm OD (overall diameter) cable jacket supports high density applications.



      HIGH QUALITY LC CERAMIC FERRULES
      • 2.50mm superior grade SC zirconia ceramic ferrules ensure precision alignment and very low optical loss with an 8 degree APC endface

      FOR USE INDOORS

      • OFNR (Riser) rated cable jackets will not promote the spread of flame. Suitable for use in non plenum interior spaces. When it comes to Fiber To The Home Networks, nobody does it better than our SC APC fiber optic cable. You may use it with a variety of FTTH networks and devices, including Verizon Fios, ATT internet cable, Google Fiber, Century Link, and more. Cost-effective Do-It-Yourself singlemode SC APC replacements can save you $100 or more compared to professional installations.
      ✓ CERTIFIED by trueCABLE
        • Our fiber optic cables have been performance tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.3-E standards. Further, our single mode fiber patch cables have been end face Certified to IEC 61300-3-35 ED.2 SM. UL Listed. Backed by our FOREVER WARRANTY.

      • Weight - 0.0 lbs
      • Length - 9 in
      • Width - 7.5 in
      • Height - 0.5 in
      • Barcode - X0031QUSUX
       Download Spec Sheet
