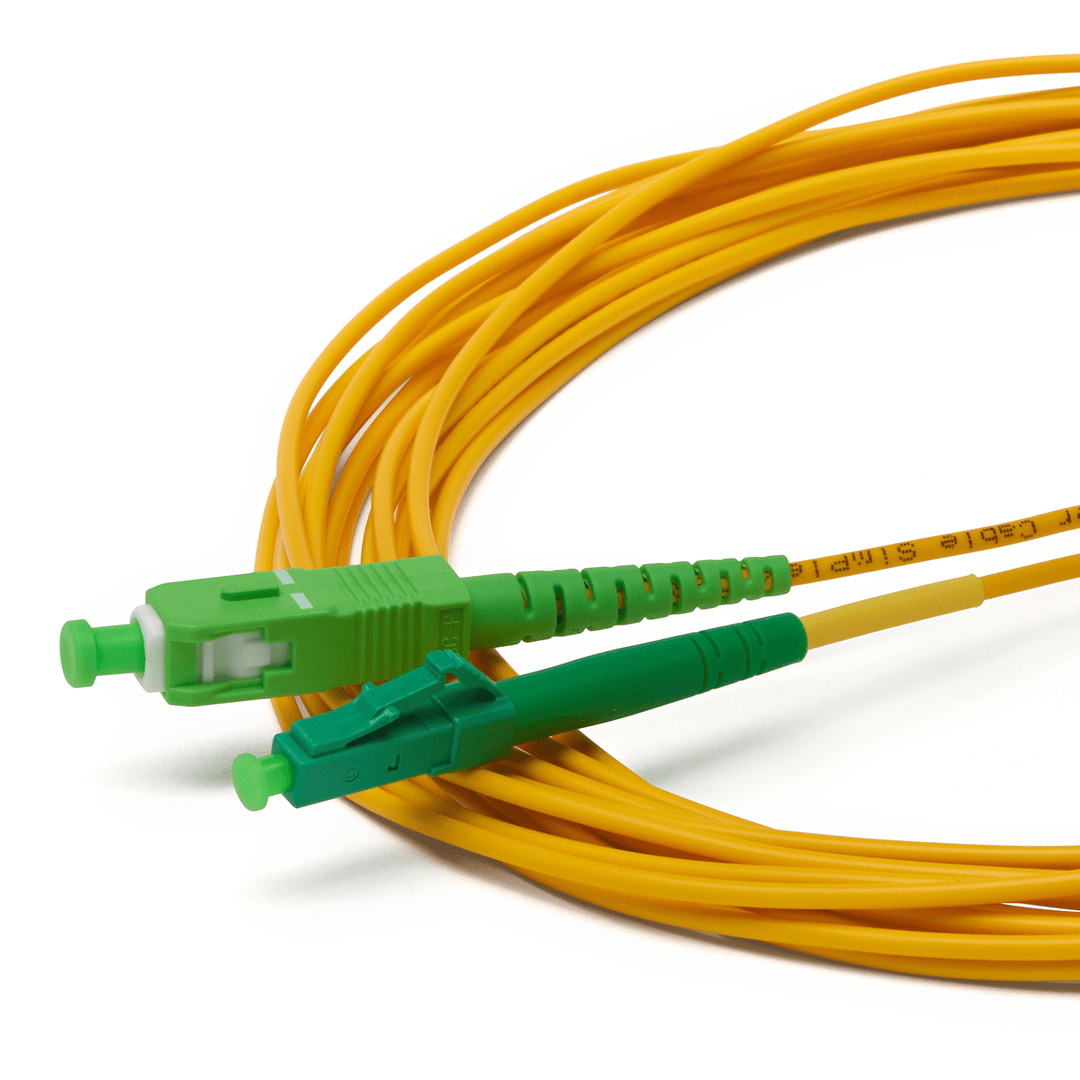

LC to SC APC Simplex OS2 | SM OFNR

Part Number - LCSCASOS2YEL_1m

Features

  • Ability to carry data from 10km to 40km at 10GB - 200GB speeds
  • G652.D compliant bend insensitive aramid yarn
  • 1.25mm LC and 2.50mm SC superior grade zirconia ceramic ferrules
  • Ultra low loss Corning® glass, ultra optical fiber
  • UL Listed, IEC Certified, ANSI/TIA 568.3-E Compliant
  • Quality Tested with a Fluke Versiv™ CableAnalyzer

Bulk Save with trueCABLE
Qty Price Per Item Your Savings
10-24 $5.94 2.5%
25-49 $5.79 5%
50+ $5.63 7.5%
download Download Spec Sheet
$6.09 6.09
-Liquid error (sections/product-template line 309): Computation results in '-Infinity'%
Length
Size
Quantity
Qty:
Saves you 2.5%
Add 9 more for 2.5% discount
+1 +5 +10

Why buy direct from trueCABLE?

30 day returns

We stand by our products with our Forever Warranty

Same-day free shipping on orders placed Mon-Fri by 3pm Central.

Estimate Your Delivery Day

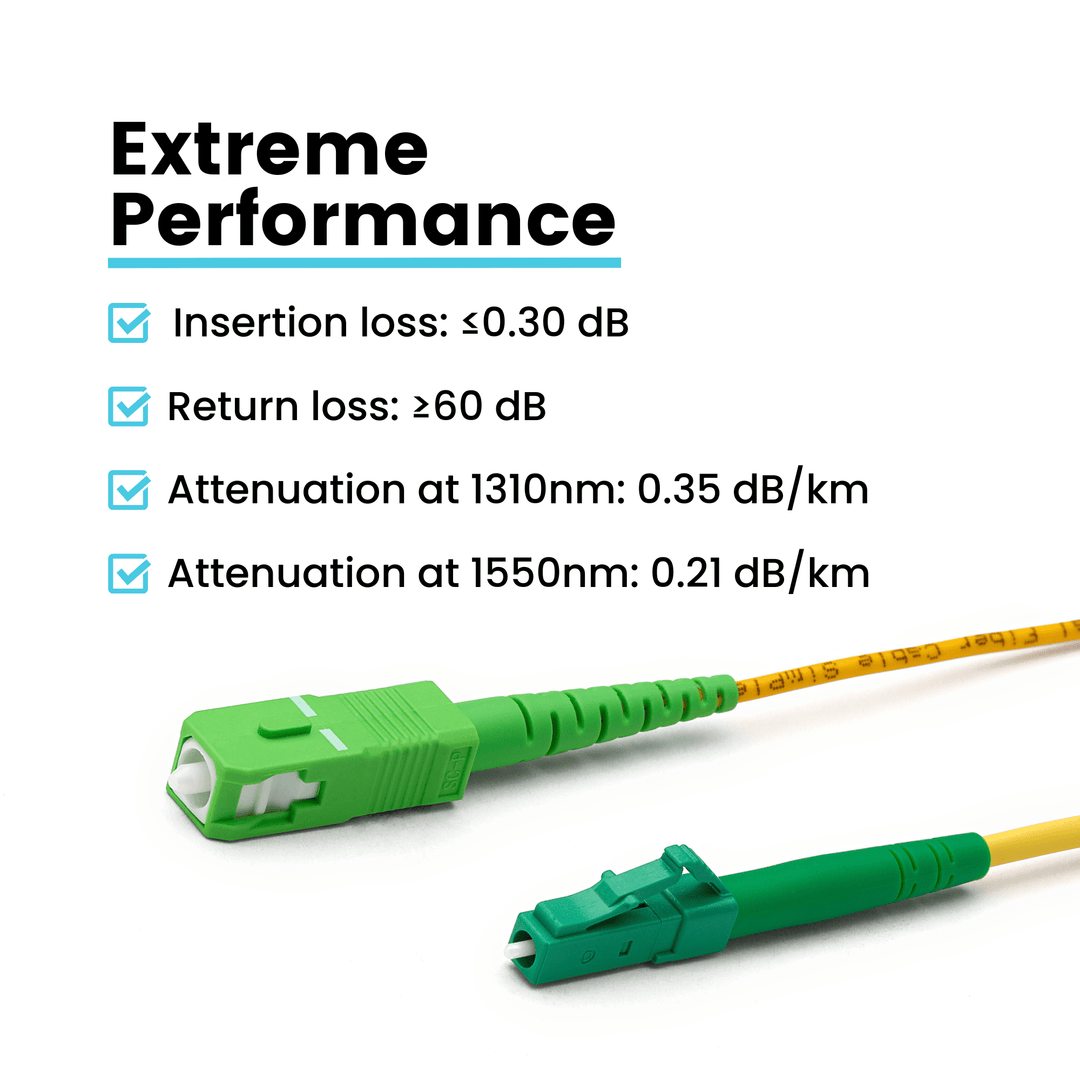

EXTREME PERFORMANCE
  • G652.D compliant bend insensitive SMF 1310/1550nm operating wavelength for up to 1GB/10GB/40GB/100GB or higher speeds with various lengths depending on the transceiver type.
  • APC or "Angled Physical Contact" polish on the fiber optic connector ends.

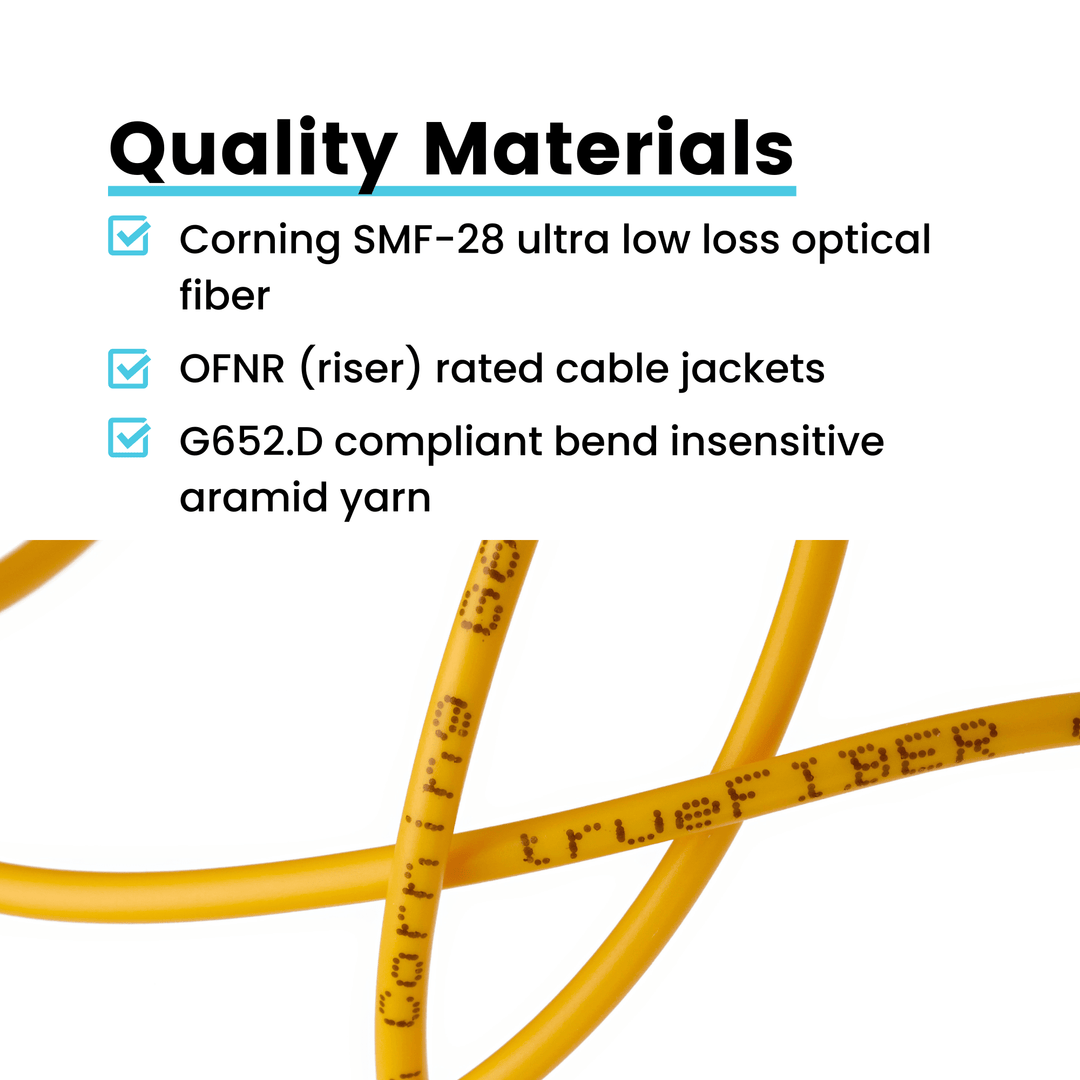

  • Corning® ultra low loss glass, ultra optical fiber core and cladding.
  • Fiber to the Home (FTTH), Data Center & Internet Service Provider applications.
  • Quality Tested with a Fluke Versiv™ CableAnalyzer.

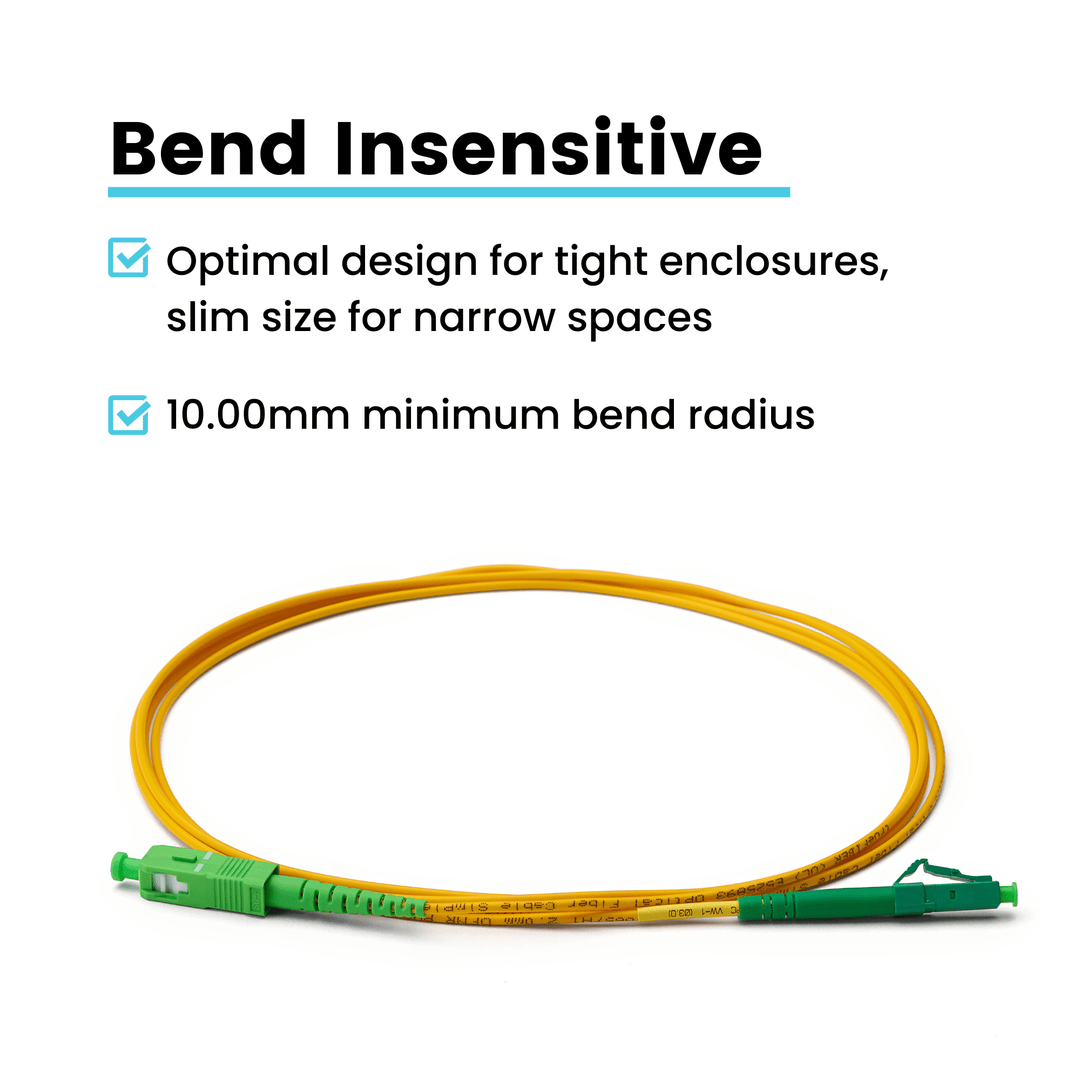

BEND INSENSITIVE

  • G652.D compliant bend insensitive aramid yarn encased tight buffer cable construction singlemode OS2 cable has a 10.00mm minimum bend radius for tight enclosures and sharp turns.
  • 2.0mm OD (overall diameter) cable jacket supports high density applications.

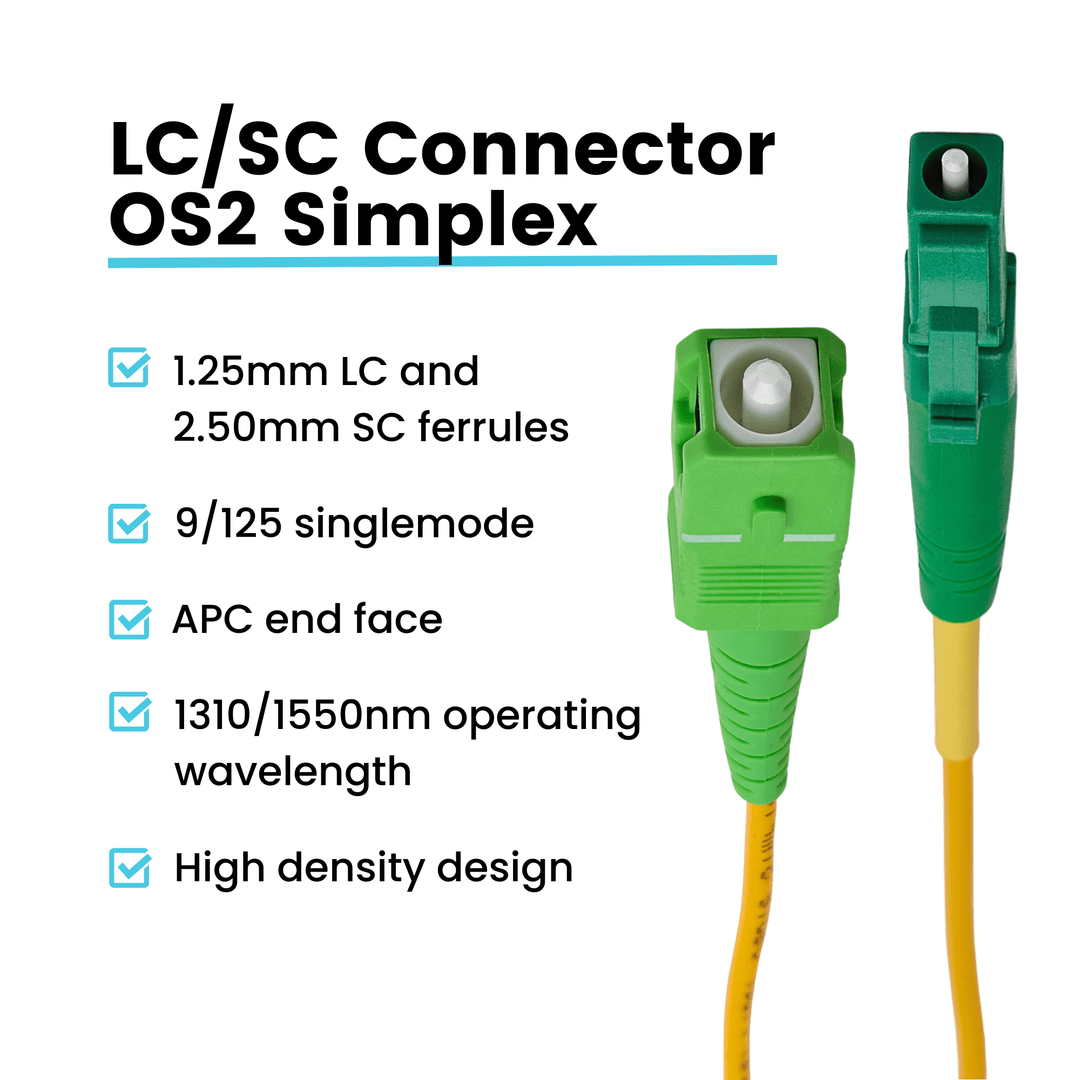

HIGH QUALITY LC CERAMIC FERRULES
  • 1.25mm LC and 2.50mm SC superior grade zirconia ceramic ferrules ensure precision alignment and very low optical loss with an 8 degree APC endface.

FOR USE INDOORS

  • OFNR (Riser) rated cable jackets will not promote the spread of flame. Suitable for use in non plenum interior spaces.
✓ CERTIFIED by trueCABLE
    • Our fiber optic cables have been performance tested with a Fluke Versiv CertiFiber Pro CableAnalyzer and are in compliance with ANSI/TIA 568.3-E standards. Further, our single mode fiber patch cables have been end face Certified to IEC 61300-3-35 ED.2 SM. UL Listed. Backed by our FOREVER WARRANTY.

Weight 0.0 lbs
Length 9 in
Width 7.5 in
Height 0.5 in
Barcode X0031R8Y85
Download Spec Sheet
EXTREME PERFORMANCE
  • G652.D compliant bend insensitive SMF 1310/1550nm operating wavelength for up to 1GB/10GB/40GB/100GB or higher speeds with various lengths depending on the transceiver type.
  • APC or "Angled Physical Contact" polish on the fiber optic connector ends.
  • Corning® ultra low loss glass, ultra optical fiber core and cladding.
  • Fiber to the Home (FTTH), Data Center & Internet Service Provider applications.
  • Quality Tested with a Fluke Versiv™ CableAnalyzer.

BEND INSENSITIVE

  • G652.D compliant bend insensitive aramid yarn encased tight buffer cable construction singlemode OS2 cable has a 10.00mm minimum bend radius for tight enclosures and sharp turns.
  • 2.0mm OD (overall diameter) cable jacket supports high density applications.

HIGH QUALITY LC CERAMIC FERRULES
  • 1.25mm LC and 2.50mm SC superior grade zirconia ceramic ferrules ensure precision alignment and very low optical loss with an 8 degree APC endface.

FOR USE INDOORS

  • OFNR (Riser) rated cable jackets will not promote the spread of flame. Suitable for use in non plenum interior spaces.
✓ CERTIFIED by trueCABLE
    • Our fiber optic cables have been performance tested with a Fluke Versiv CertiFiber Pro CableAnalyzer and are in compliance with ANSI/TIA 568.3-E standards. Further, our single mode fiber patch cables have been end face Certified to IEC 61300-3-35 ED.2 SM. UL Listed. Backed by our FOREVER WARRANTY.

  • Weight - 0.0 lbs
  • Length - 9 in
  • Width - 7.5 in
  • Height - 0.5 in
  • Barcode - X0031R8Y85
 Download Spec Sheet
