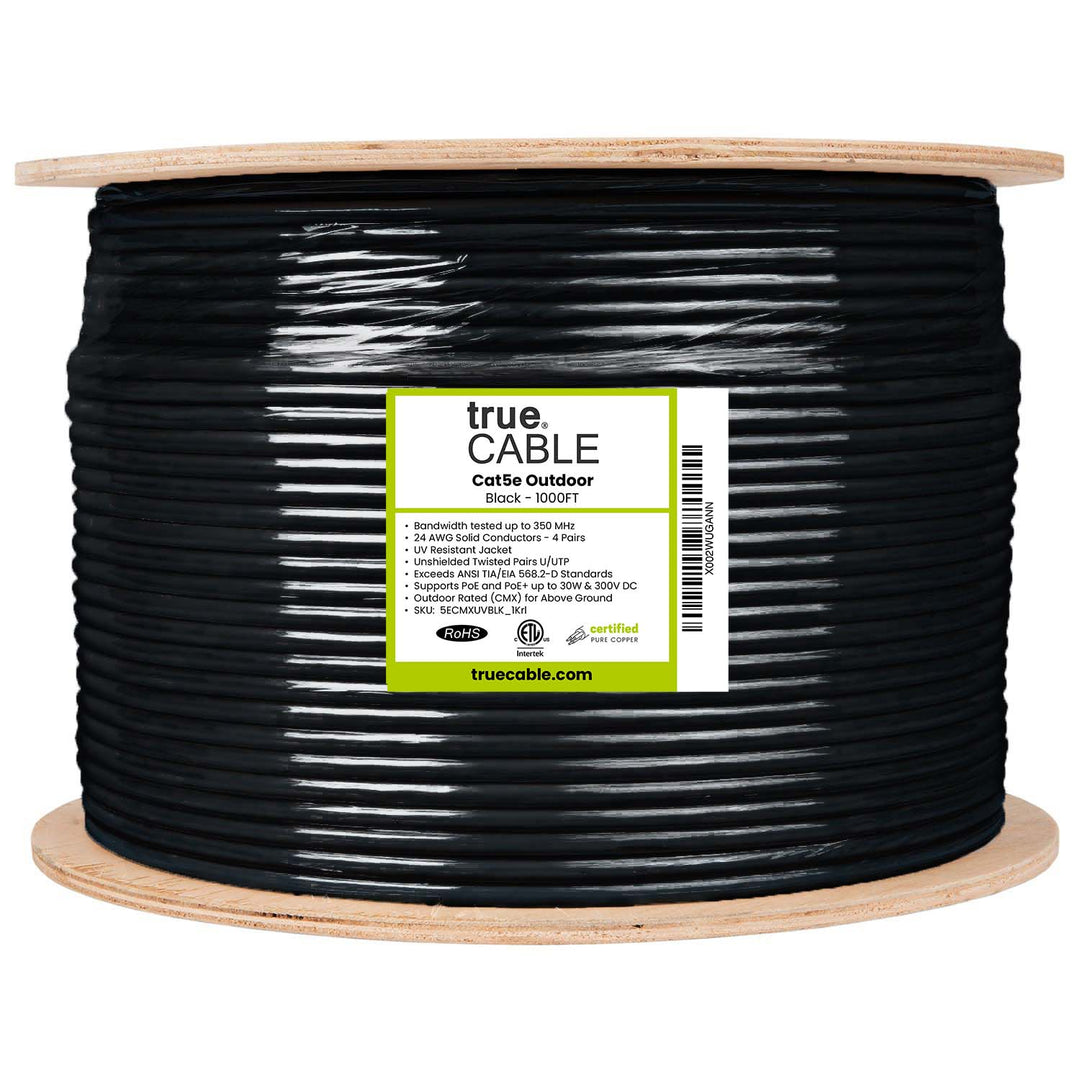

![Cat5e unshielded outdoor ethernet cable, 1000ft, black]()
![Cat5e unshielded outdoor ethernet cable, 500ft, black]()
![Cat5e unshielded outdoor ethernet cable, 500ft, black]()
![Cat5e unshielded outdoor ethernet cable, 500ft, black]()
![Cat5e Outdoor Unshielded Ethernet Black 500ft trueCABLE Close up]()
![Cat5e unshielded outdoor ethernet cable, 500ft, white]()
![Cat5e unshielded outdoor ethernet cable, 500ft, white]()
![Cat5e unshielded outdoor ethernet cable, 500ft, white]()
![Cat5e Outdoor Unshielded Ethernet White 500ft trueCABLE Close up]()

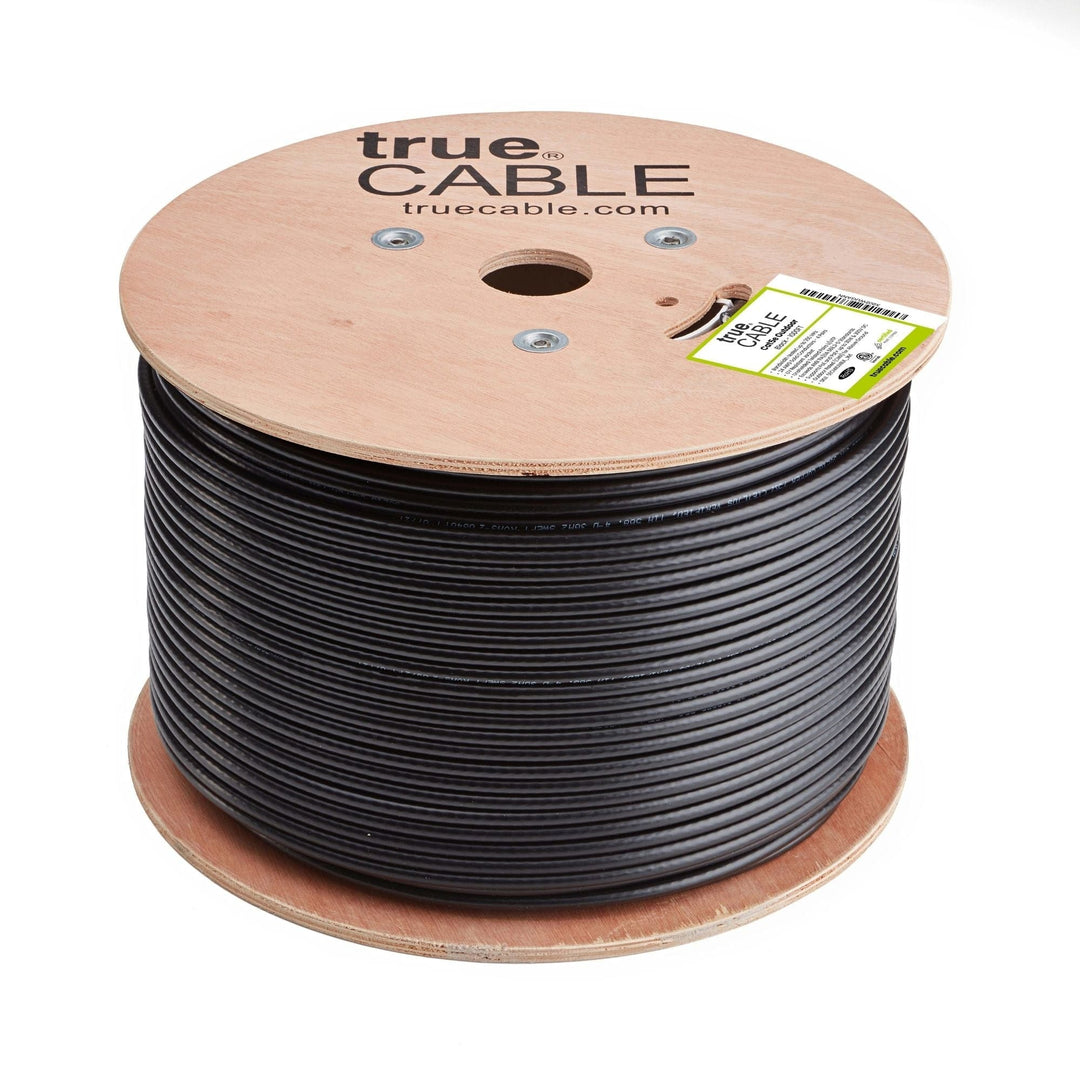

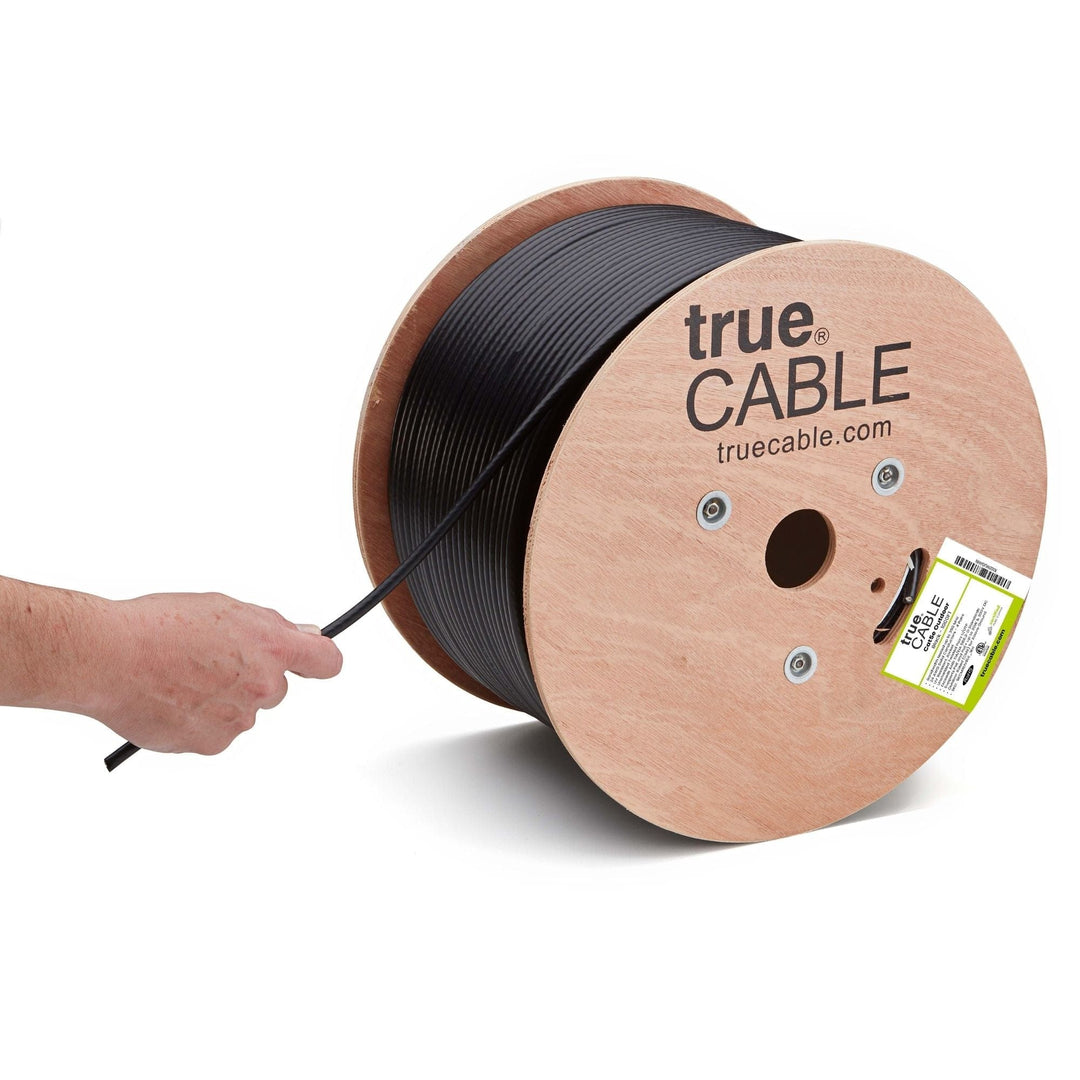

![Cat5e unshielded outdoor ethernet cable, 1000ft, black]()
![Cat5e unshielded outdoor ethernet cable, 1000ft, black]()

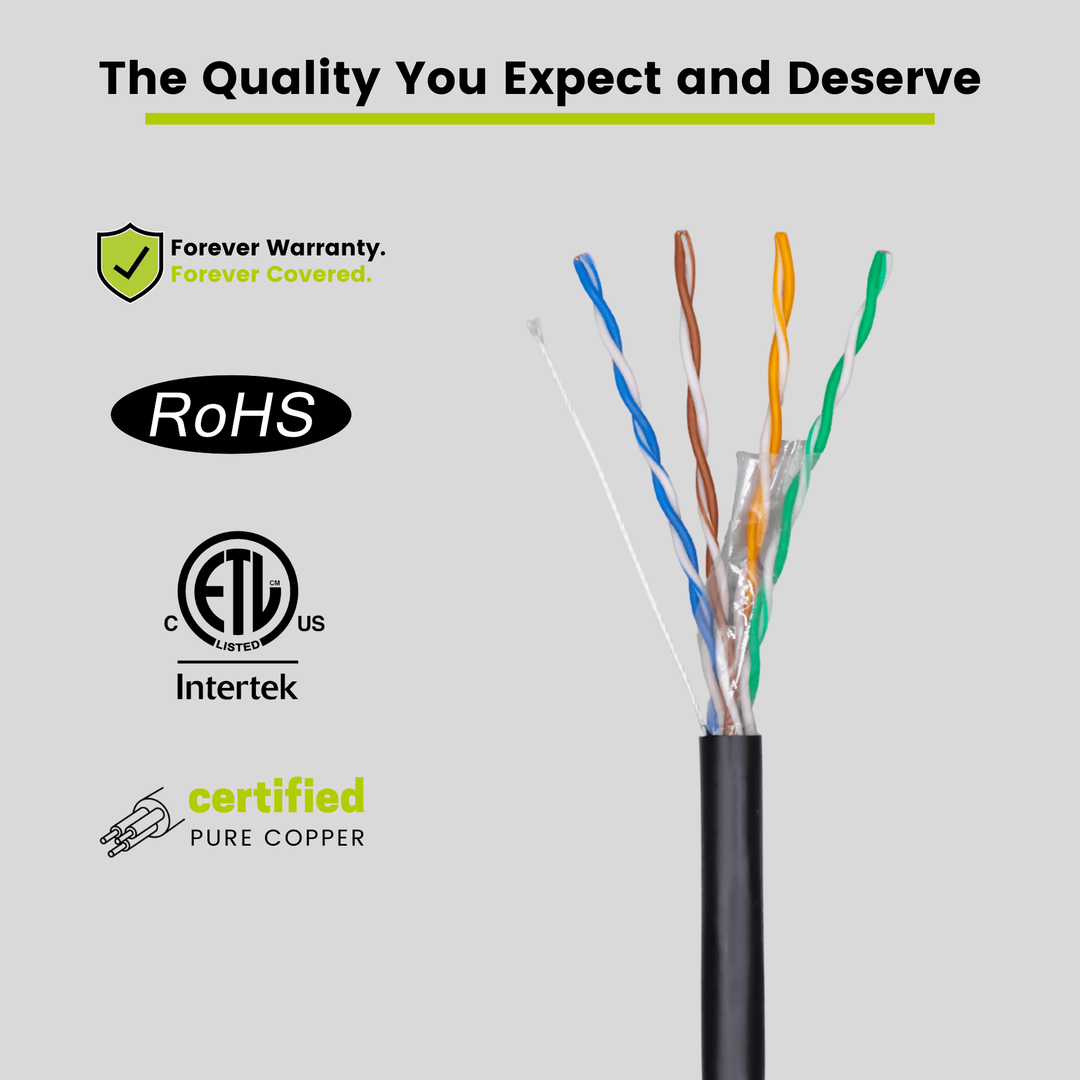

![Cat5e Outdoor Unshielded Ethernet Black 1000ft trueCABLE Close up]()
![Cat5e unshielded outdoor ethernet cable, 1000ft, white]()
![Cat5e unshielded outdoor ethernet cable, 1000ft, white]()
![Cat5e unshielded outdoor ethernet cable, 1000ft, white]()
![Cat5e Outdoor Unshielded Ethernet White 1000ft trueCABLE Close up]()
Cat5e Outdoor Ethernet Cable｜Unshielded
Part Number - 5ECMXUVBLK_1Krl
Features
- 24AWG 4-Pair, solid bare copper conductors
- Bandwidth tested up to 350 MHz
- Supports PoE++ (802.3bt) 4PPoE, up to 100W
- cETLus Certified, RoHS-3 Compliant
- NOT rated for direct burial
| Bulk Save with trueCABLE | ||
|---|---|---|
| Qty | Price Per Item | Your Savings |
| 10-24 | $155.99 | 2.5% |
| 25-49 | $151.99 | 5% |
| 50+ | $147.99 | 7.5% |
$159.99
159.99
Why buy direct from trueCABLE?
30 day returns
We stand by our products with our Forever Warranty
Same-day free shipping on orders placed Mon-Fri by 3pm Central.
Outdoor Rated Ethernet Cable
- Not rated for direct burial.
- The CMX UV resistant jacket is designed to withstand sunlight, snow, and ice
- Perfect for tight installation applications requiring thinner outdoor grade cable, such as exterior surveillance cameras
Everyday Performance
- Suitable for 1 Gigabit speed and 2.5 Gigabit (2.5GBASE-T) speeds up to 328 feet
- Bandwidth tested up to 350 MHz
- Unshielded twisted pairs - U/UTP
- Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.
- Sequential footage markings every 2 feet improves efficiency and easily allows you to track how much cable is left on the EZ Pull Reel
Compatibility Counts
- Compatibility tested and verified with trueCABLE Cat5e Unshielded Pass Through RJ45 Connectors
- 24AWG solid conductors with an insulated conductor diameter of 0.91 mm and an overall cable jacket diameter of 5.10mm fits most readily available Cat5e RJ45 connectors
Pure Solid Bare Copper Conductors
- Complies with UL, ANSI/TIA, and U.S. product safety standards
- Bare copper is superior conductor material for data transmission and PoE use
- The only industry and governmental approved type of conductor for use in Ethernet networks
✓ CERTIFIED by trueCABLE
- Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-D standards, RoHS-3 compliant, and cETLus certified
| Weight | 20.0 lbs |
| Length | 11.00 in |
| Width | 11.00 in |
| Height | 9.75 in |
| Barcode |
Outdoor Rated Ethernet Cable
- Not rated for direct burial.
- The CMX UV resistant jacket is designed to withstand sunlight, snow, and ice
- Perfect for tight installation applications requiring thinner outdoor grade cable, such as exterior surveillance cameras
Everyday Performance
- Suitable for 1 Gigabit speed and 2.5 Gigabit (2.5GBASE-T) speeds up to 328 feet
- Bandwidth tested up to 350 MHz
- Unshielded twisted pairs - U/UTP
- Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.
- Sequential footage markings every 2 feet improves efficiency and easily allows you to track how much cable is left on the EZ Pull Reel
Compatibility Counts
- Compatibility tested and verified with trueCABLE Cat5e Unshielded Pass Through RJ45 Connectors
- 24AWG solid conductors with an insulated conductor diameter of 0.91 mm and an overall cable jacket diameter of 5.10mm fits most readily available Cat5e RJ45 connectors
Pure Solid Bare Copper Conductors
- Complies with UL, ANSI/TIA, and U.S. product safety standards
- Bare copper is superior conductor material for data transmission and PoE use
- The only industry and governmental approved type of conductor for use in Ethernet networks
✓ CERTIFIED by trueCABLE
- Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-D standards, RoHS-3 compliant, and cETLus certified
- Weight - 20.0 lbs
- Length - 11.00 in
- Width - 11.00 in
- Height - 9.75 in
- Barcode -
