G652.D compliant bend insensitive SMF 1310/1550nm operating wavelength for up to 1GB/10GB/40GB/100GB or higher speeds with various lengths depending on the transceiver type.
UPC or "Ultra Physical Contact" polish on one fiber optic connector end.

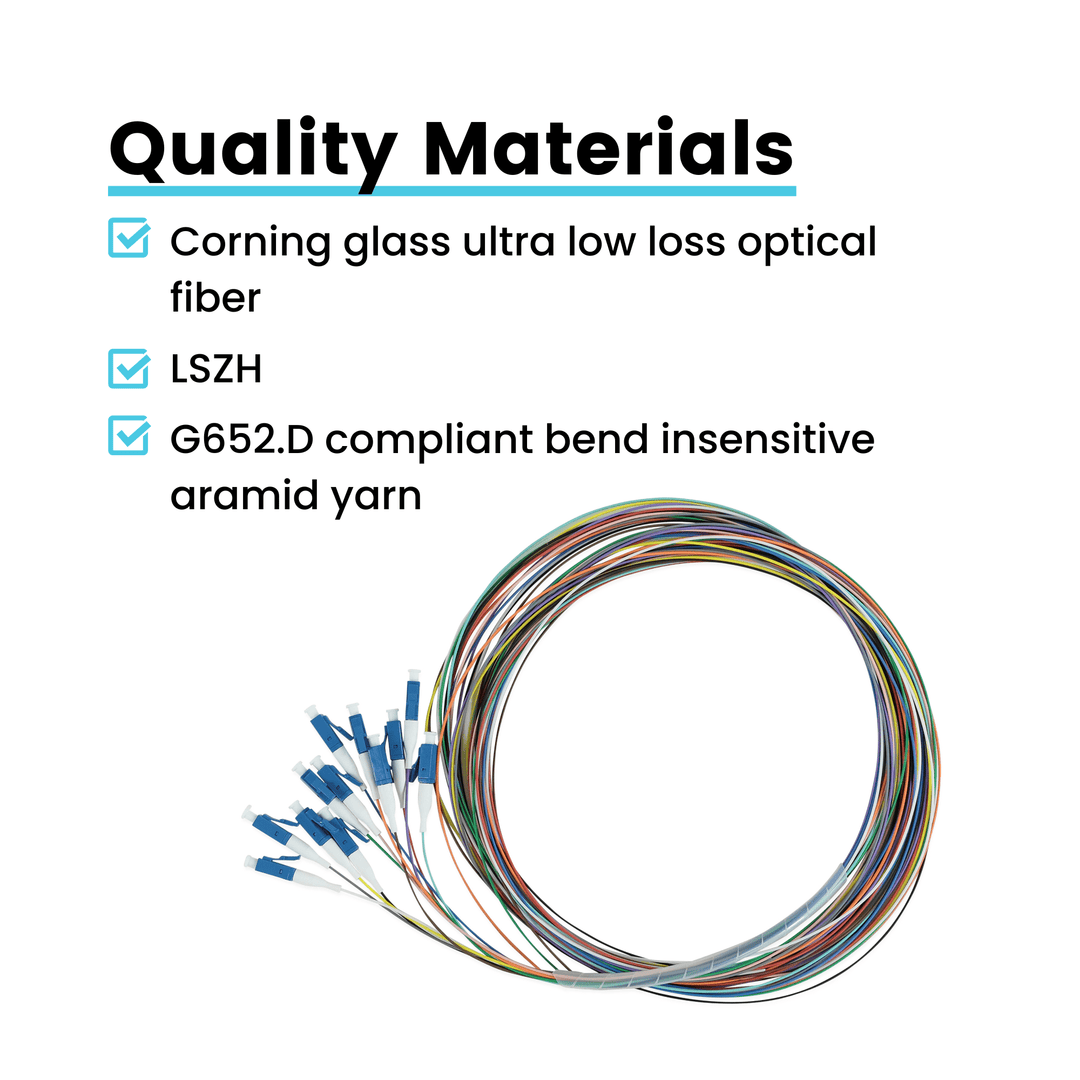

Corning® ultra low loss, ultra optical fiber core and cladding.
Fiber to the Home (FTTH), Data Center & Internet Service Provider applications.
Quality Tested with a Fluke Versiv™ CableAnalyzer.
Mechanical and Fusion Splice ready

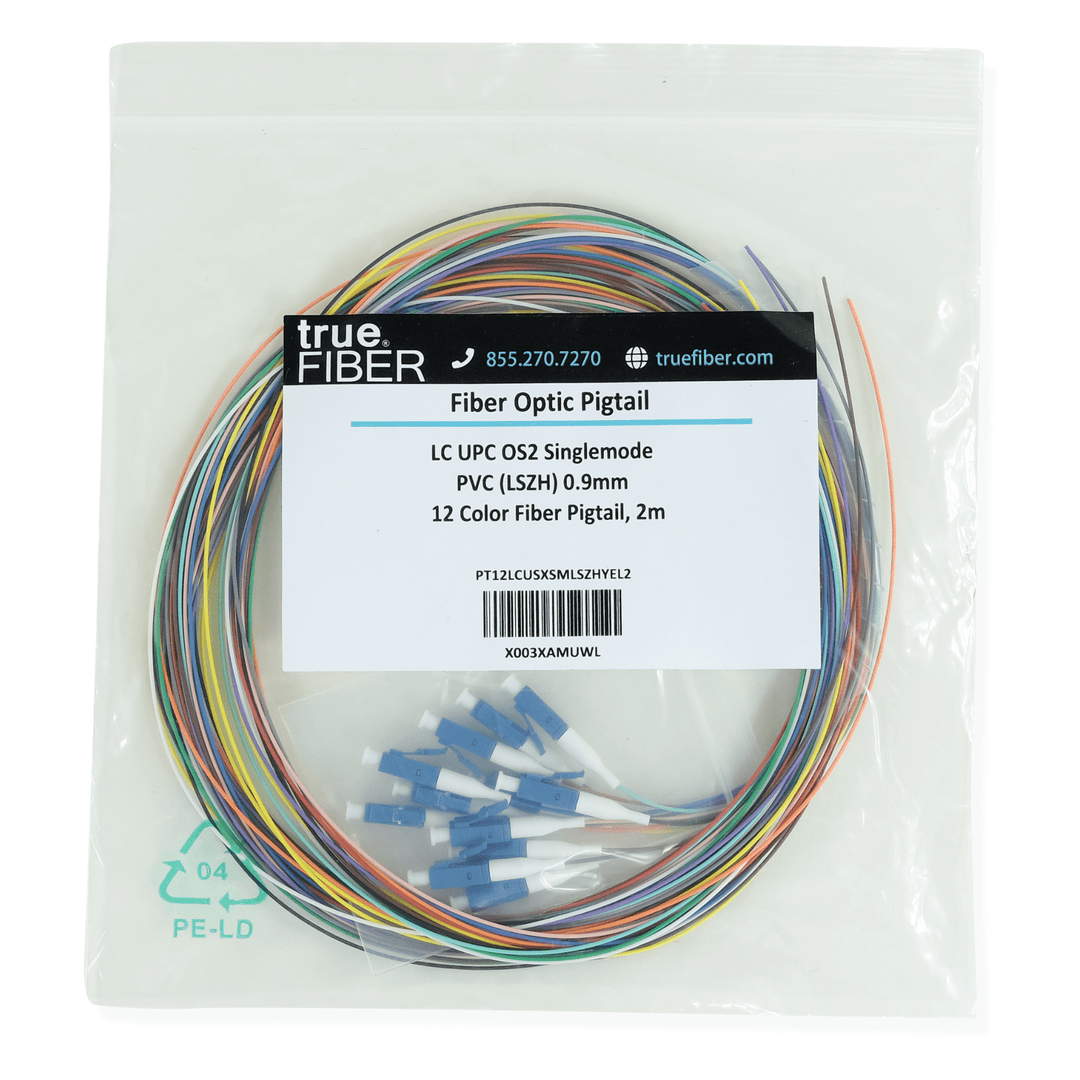

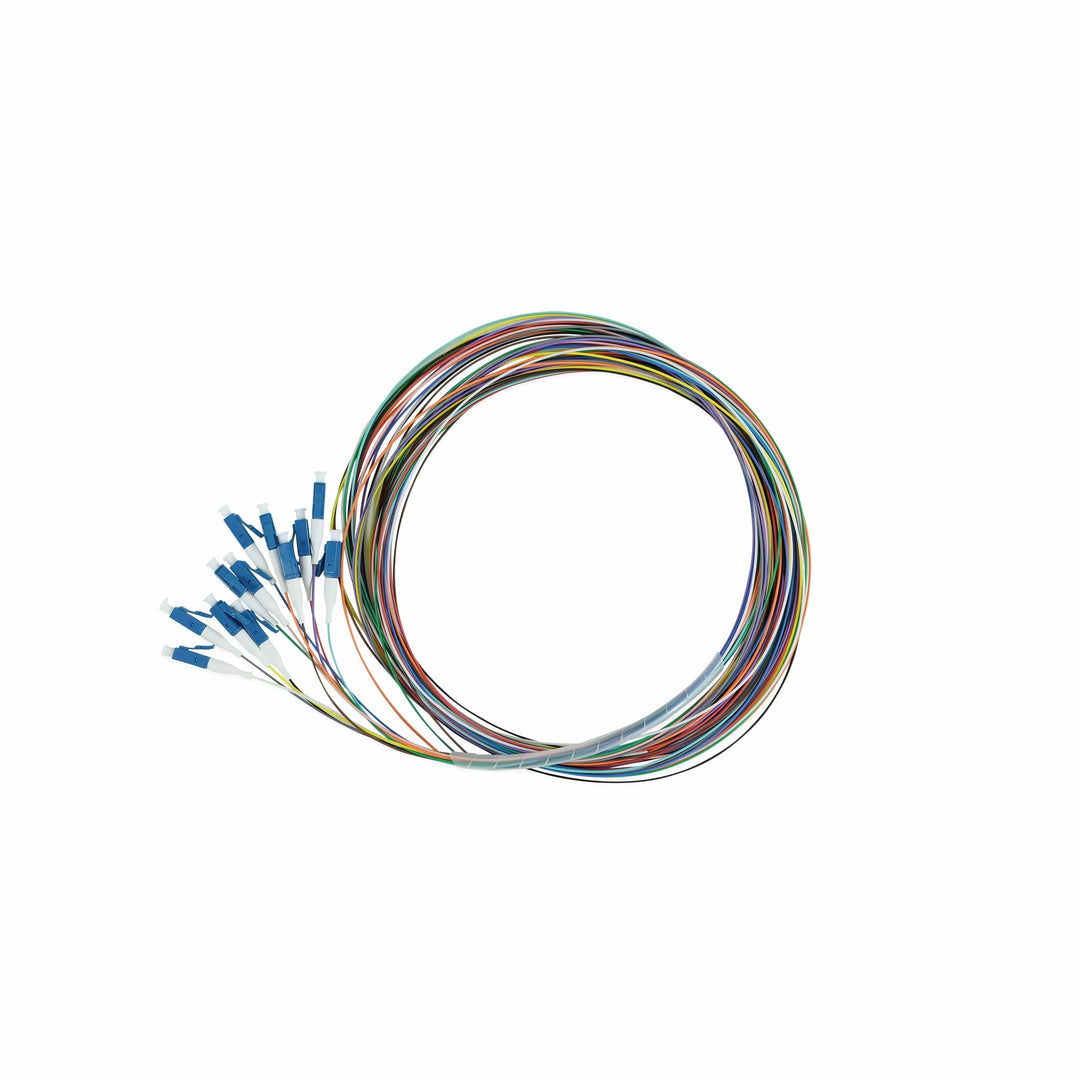

Low Loss 12 Fiber LC UPC Pigtail

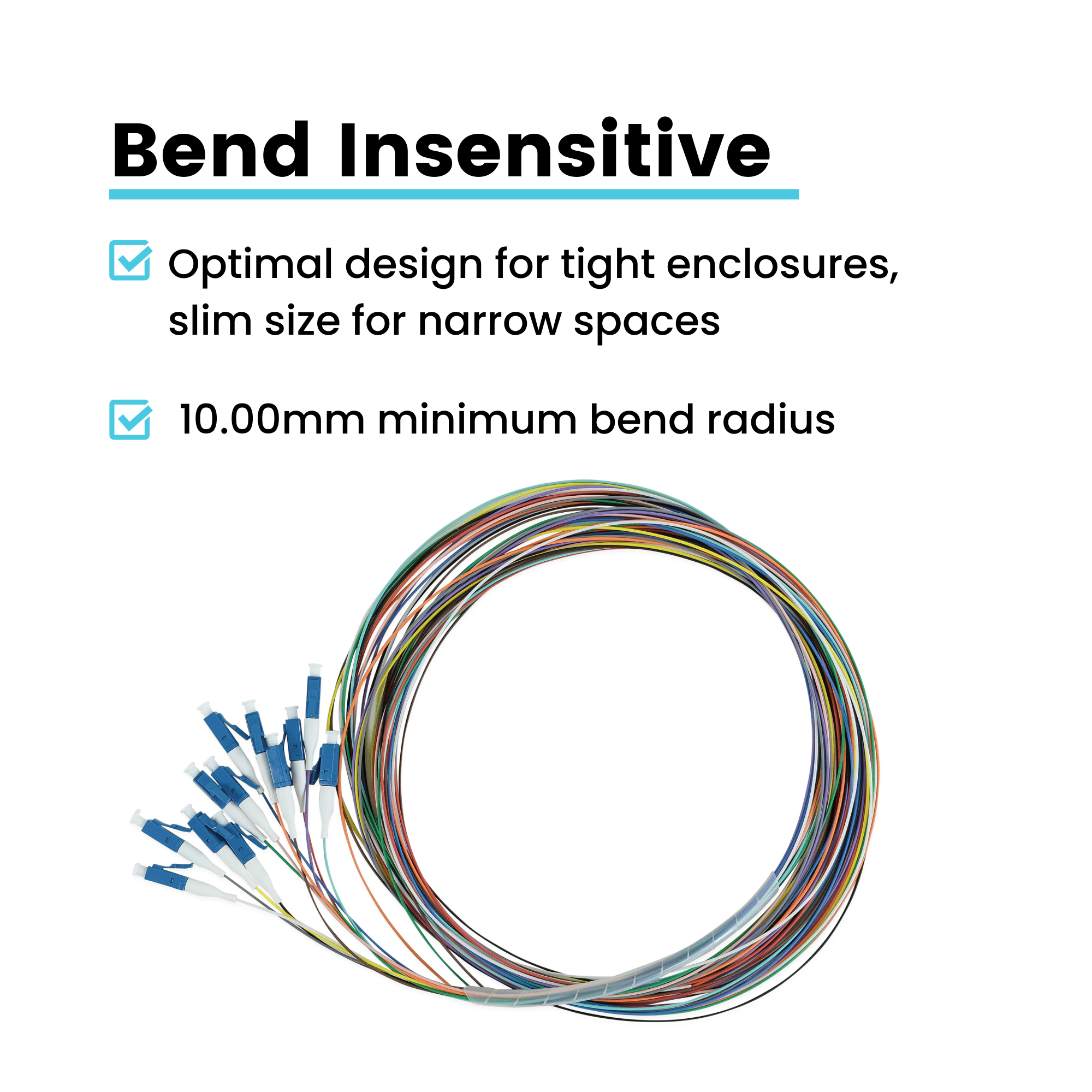

Bend Insensitive
G652.D compliant bend insensitive aramid yarn encased tight buffer cable construction singlemode OS2 cable has a 10.00mm minimum bend radius for tight enclosures and sharp turns.
0.9mm OD (overall diameter) tight buffer cable jacket supports high density applications.

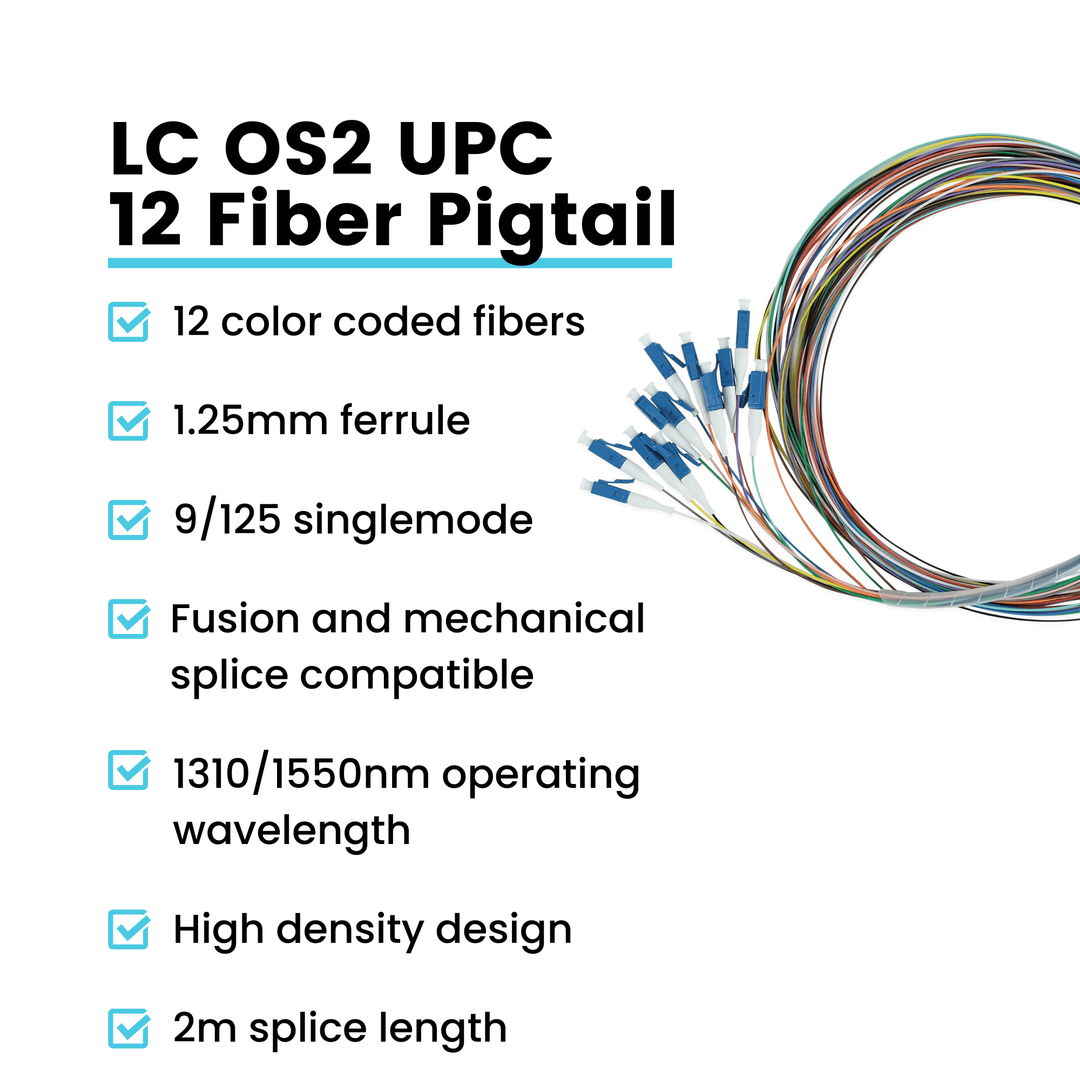

12 Fiber LC TIA-598 Color-coded 0.9mm pigtails
High Quality LC Ceramic Ferrule
1.25mm superior grade LC zirconia ceramic ferrule ensures precision alignment and very low optical loss UPC end-face.
For Use Indoors
LSZH (Low Smoke Zero Halogen) rated cable jackets will not promote the spread of flame. Suitable for use in interior spaces.

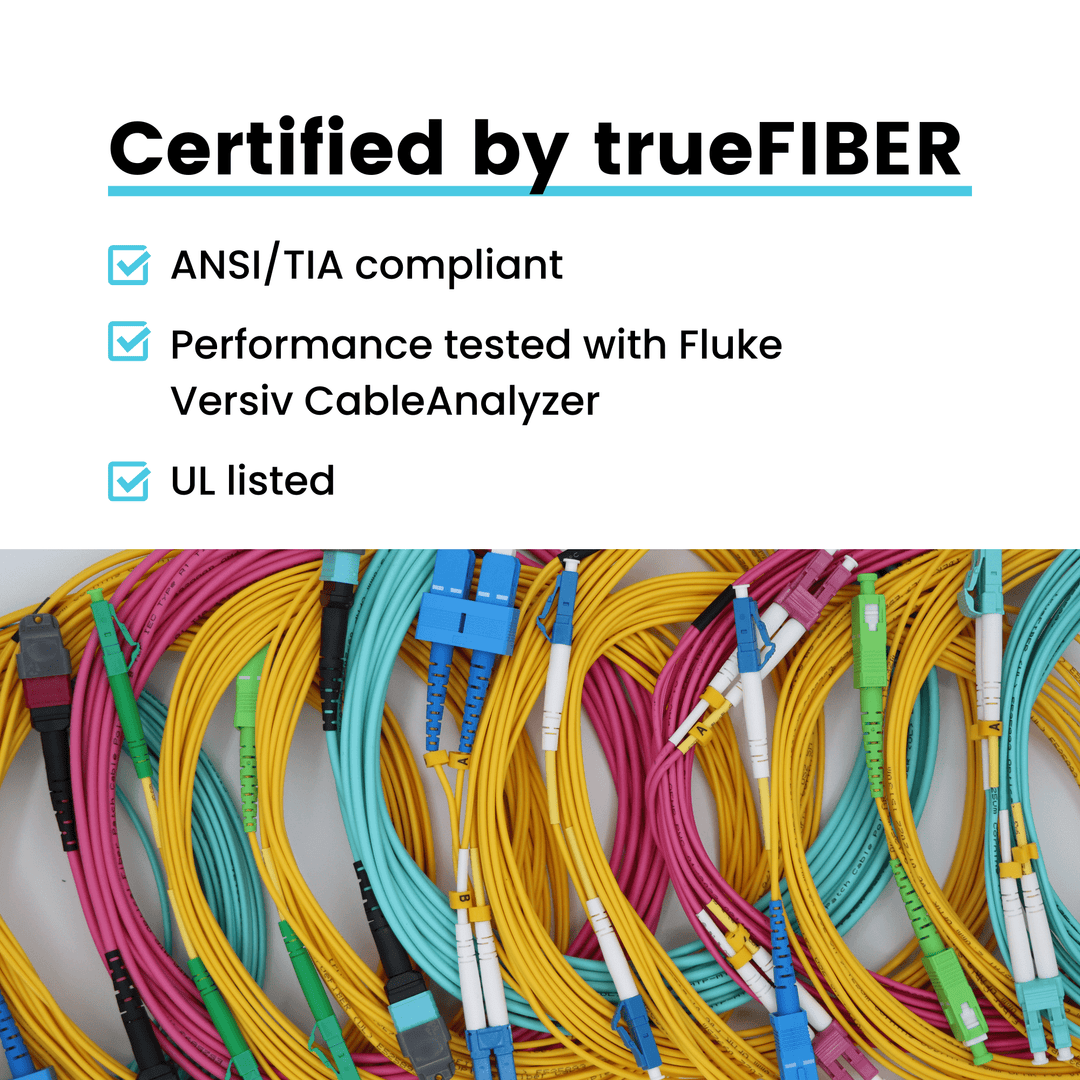

✓ Field Tested, Customer Approved
Our fiber optic cables have been performance tested with a Fluke Versiv CertiFiber Pro CableAnalyzer and are in compliance with ANSI/TIA 568.3-E standards. Further, our single mode fiber patch cables have been end face Certified to IEC 61300-3-35 ED.2 SM. UL Listed. Backed by our FOREVER WARRANTY.
G652.D compliant bend insensitive SMF 1310/1550nm operating wavelength for up to 1GB/10GB/40GB/100GB or higher speeds with various lengths depending on the transceiver type.
UPC or "Ultra Physical Contact" polish on one fiber optic connector end.
Corning® ultra low loss, ultra optical fiber core and cladding.
Fiber to the Home (FTTH), Data Center & Internet Service Provider applications.
Quality Tested with a Fluke Versiv™ CableAnalyzer.
Mechanical and Fusion Splice ready
Low Loss 12 Fiber LC UPC Pigtail
Bend Insensitive
G652.D compliant bend insensitive aramid yarn encased tight buffer cable construction singlemode OS2 cable has a 10.00mm minimum bend radius for tight enclosures and sharp turns.
0.9mm OD (overall diameter) tight buffer cable jacket supports high density applications.
12 Fiber LC TIA-598 Color-coded 0.9mm pigtails
High Quality LC Ceramic Ferrule
1.25mm superior grade LC zirconia ceramic ferrule ensures precision alignment and very low optical loss UPC end-face.
For Use Indoors
LSZH (Low Smoke Zero Halogen) rated cable jackets will not promote the spread of flame. Suitable for use in interior spaces.
✓ Field Tested, Customer Approved
Our fiber optic cables have been performance tested with a Fluke Versiv CertiFiber Pro CableAnalyzer and are in compliance with ANSI/TIA 568.3-E standards. Further, our single mode fiber patch cables have been end face Certified to IEC 61300-3-35 ED.2 SM. UL Listed. Backed by our FOREVER WARRANTY.
